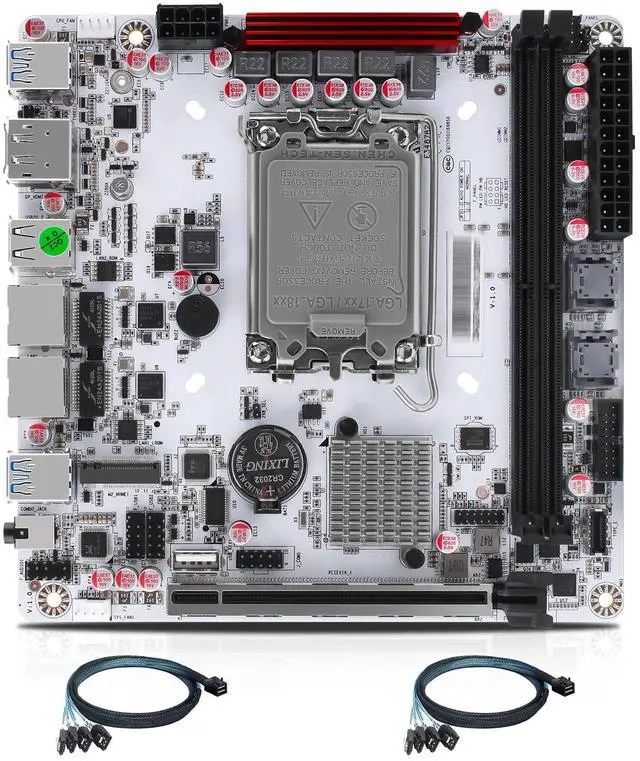

StoneStorm Q670 8-Bay NAS Mini ITX Motherboard(LGA1700, 12th/13th/14th Gen. Desktop Processor), 2*U-DIMM DDR5 MAX 64G, 3*M.2 NVMe, 8*SATA, i226-LM 2.5G vPro, 3*USB3.2, 1*Type-C 20Gbps, Dual 4K Display

LGA1700 Socket: White Q670 8-Bay NAS board is compatible with Intel Core i3/i5/i7 12th/13th/14th Gen. desktop processors, and we recommend the T-Series desktop processors, which are more energy efficient. It's 6.7" x 6.7" mini-ITX form factor, basic TDP is 65W, and it supports Windows 10/11, Linux ^^

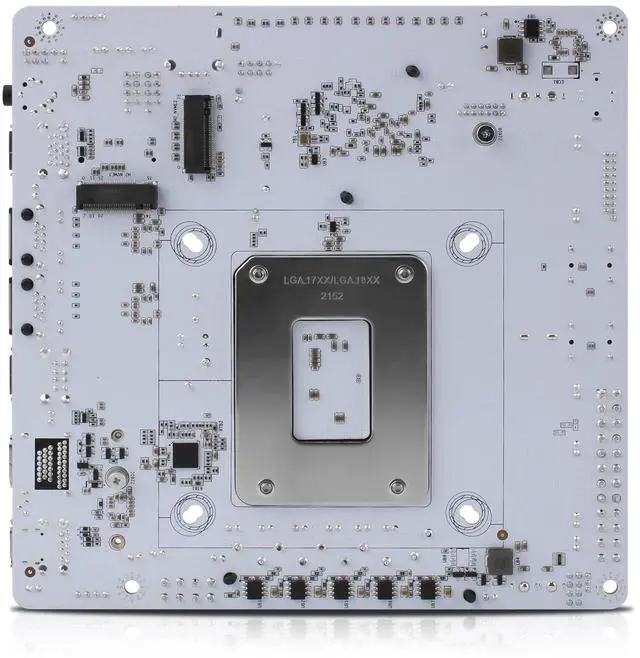

High Productivity: 2* desktop DDR5 RAM(for 12th Gen. CPU, it supports 4800MHz by default; for 13th Gen. CPU and above, it supports 5600MHz by default), MAX 64GB, 2* M. 2 NVMe (PCIe 4.0 x4) 2280 size on back and 1* M. 2 NVMe (PCIe 4.0 x4) 2280/22110 size on front. Expandable to 8* SATA via 2* SFF-8643 cable, stable and ultra-fast transfer speed. 1* Type-C (USB 3.2 Gen2 x2 20Gbps, Supports data transfer only), 3* USB 3.2 Gen2 10Gbps ^^ i226-LM

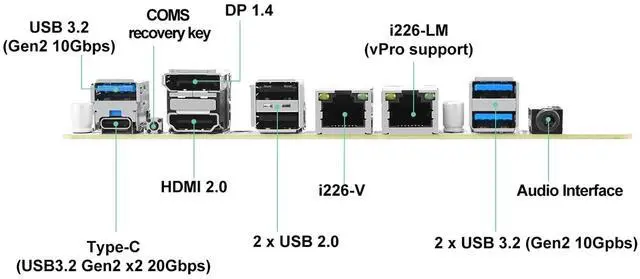

Port: This upgrade version Q670 NAS motherboard has 1* i226 2.5G bE port and 1* i226-LM 2.5G bE port. i226-LM port supports vPro function, but it requires the processor is integrated graphics and setting in BIOS. The vPro is essential for remotely repairing a malfunctioning computer that is unable to access the system ^^ Dual 4K

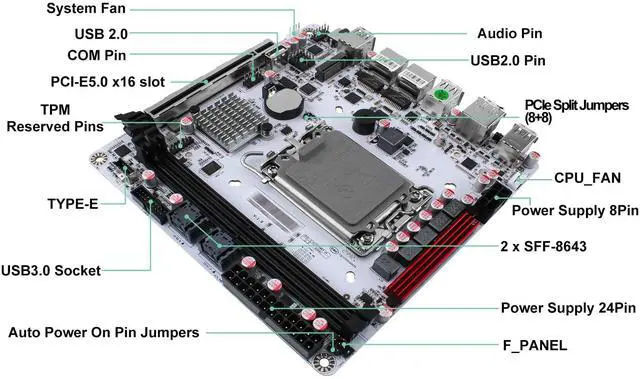

Display: This mini-ITX board has HDMI 2.0 and DP 1.4 ports at 4K@60Hz, and it has PCIe 5.0 x16 slot which can be expanded to graphics cards, PCI-E network cards, support for various types of PCI-E protocol expansion accessories and also supports splitting into 2 x8 signals via jumper caps ^^
Heat Dissipation: It is compatible with LGA115x or LGA1700 series processors cooling fan. Package includes 1x Q670 8-Bay NAS ITX motherboard, 2x SFF-8643 cable, 1x I/O Shield, some screws, 1x warranty card ^^
NOTE: The motherboard requires both 24PIN + 8PIN power connections to power up. It will take a few minutes for the motherboard to read the memory information when you first turn on it, please be patient. If you need to go to the BIOS page, keep pressing "DEL" while booting up. For user manual, please leave a msg to the seller
