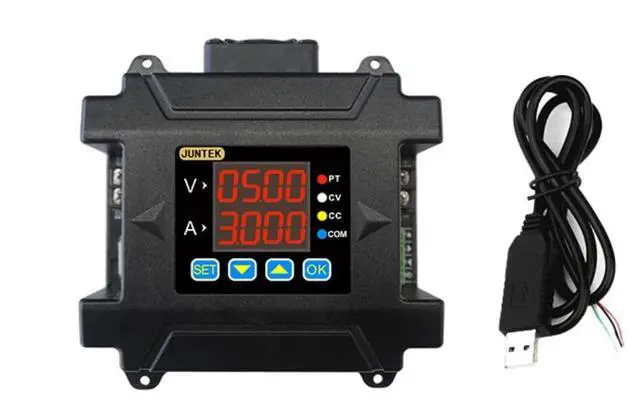

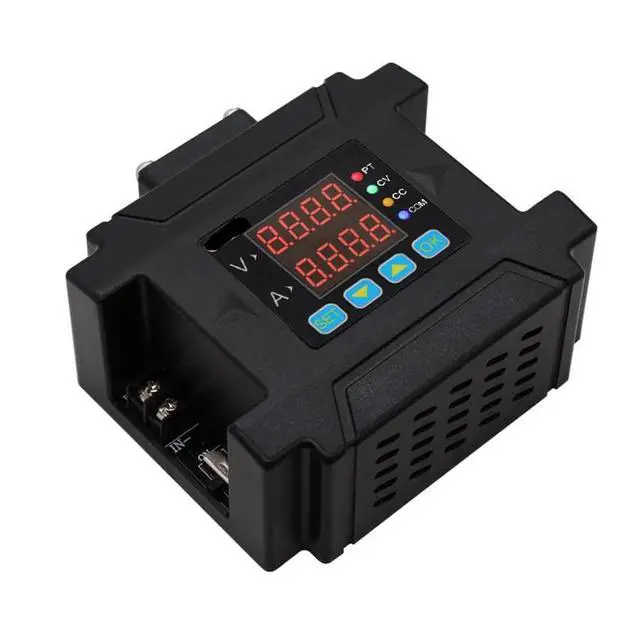

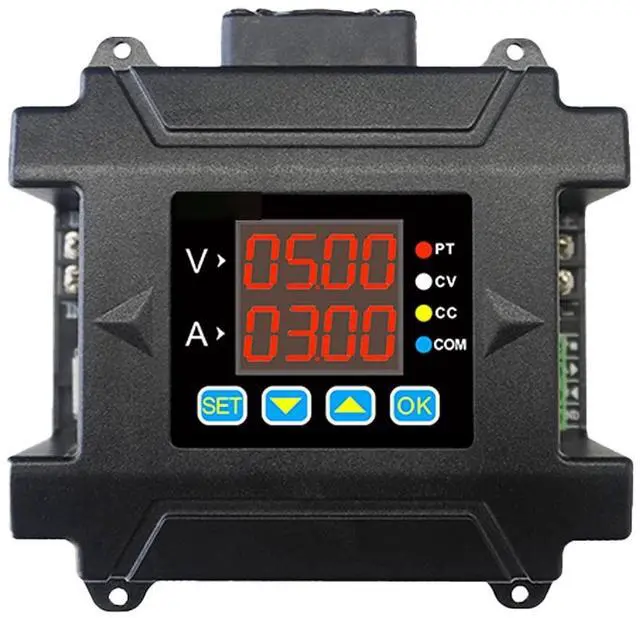

Programmable DC Numerical Control Power Supply DPM86080-8A
- Based on the switching power supply technology of BUCK structure
- Can automatically stop output when over-temperature, Automatically save parameters when power is off.
- With quick discharge function, the voltage response speed is adjusted very fast
- Communication protocol is divided into a simple communication protocol and a MODBUS-RTU communication protocol
- TTL serial communication interface
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The DPM8600 series power supplies are single output programmable high power switching power supplies, large output power, small sizebeautifully structured. At the same time, it is equipped with TTL serial communication interface or RS485 communication interface model -485, which provides serial communication protocol, it can also be applied to modbus-RTU communication protocol, supports user secondary development, can provide multi-purpose solution according to your design and testing requirements. DPM8600 series can be equipped with wireless remote control. The wireless controller adopts 2.4 -inch LCD screen. It has rich display content, simple operation, built-in lithium battery, can be recharged, and it can control the switching power supply within 10 meters wirelessly.
A wireless controller can control multiple switching power supplies simultaneously. Communication interfaceDPM-8605. DPM-8608. DPM-8616.
DPM-8624: TTL serial communication interface. DPM8605-485, DPM8608-485. DPM8616-485.
DPM8624-485: 485 communication interfaces
A wireless controller can control multiple switching power supplies simultaneously. Communication interfaceDPM-8605. DPM-8608. DPM-8616.
DPM-8624: TTL serial communication interface. DPM8605-485, DPM8608-485. DPM8616-485.
DPM8624-485: 485 communication interfaces
