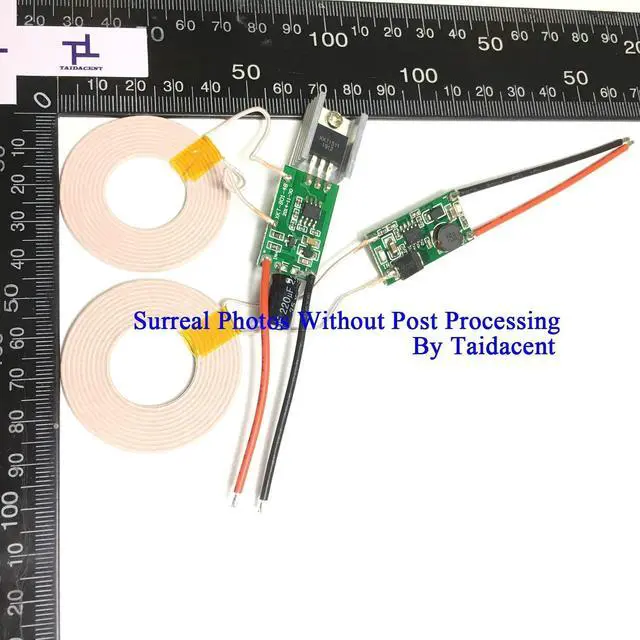

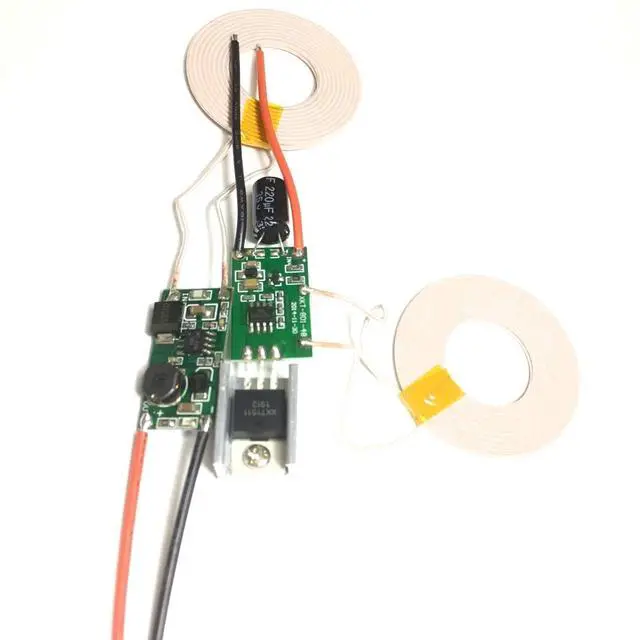

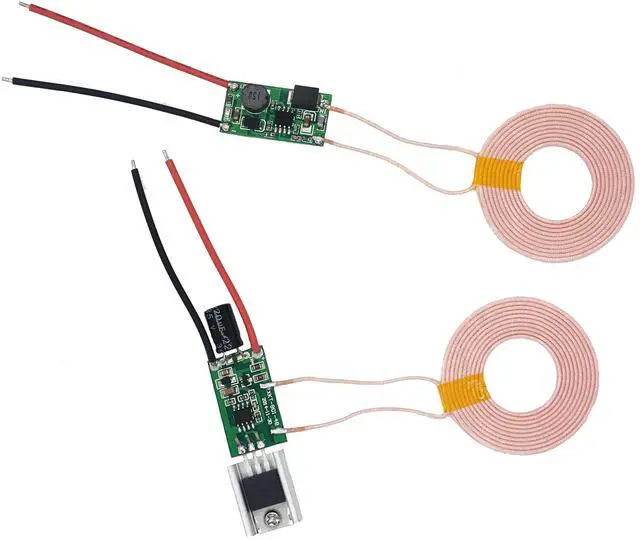

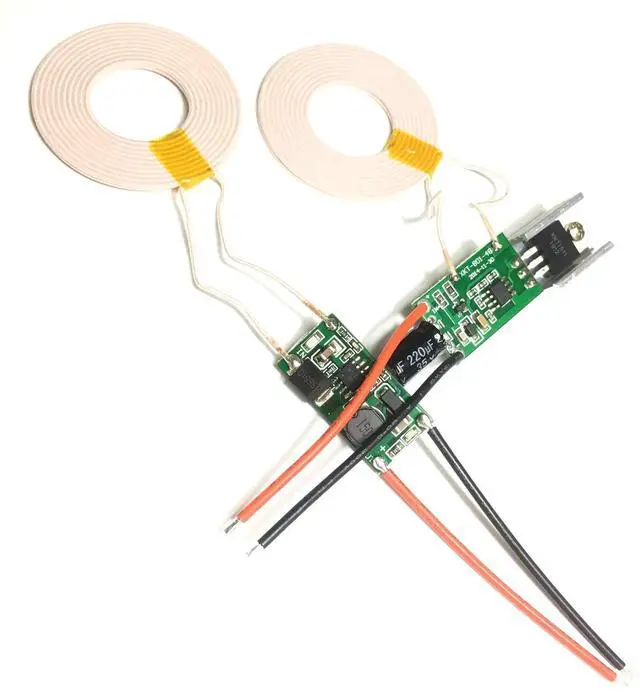

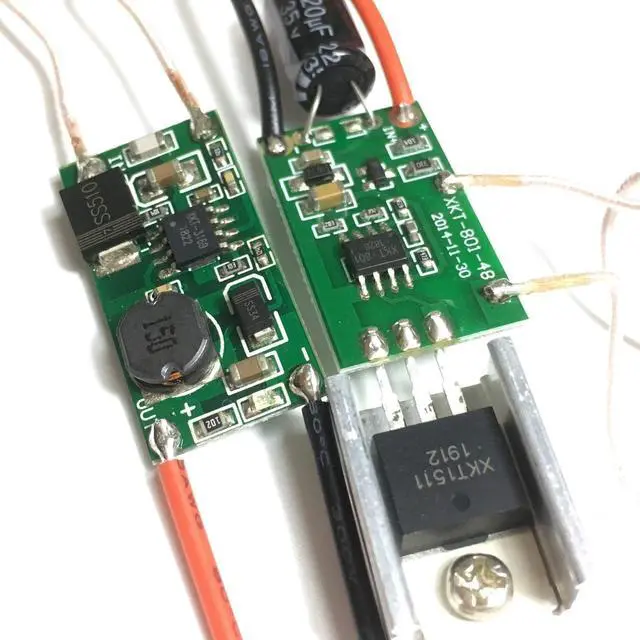

Taidacent 10mm Distance 12V1A Output High Current Wireless Charging Module Wireless Power Supply Module (12V1A 10mm)
- This module is designed to penetrate thicker desktop and electrical enclosures for long-distance, high-current power supply.
- Input voltage: 24V (can work in the wide voltage range of 15V~30V)
- Load current: 1.3A; Receiving output voltage and current: Receiving output 12V/1A when 8~10mm
- Transmitting coil size: outer diameter 43mm, thickness 2.3mm; Transmitter module size: 16mm*24mm
- Receiving module size: 10mm*25mm*3mm; Receiving coil size: outer diameter 43mm, thickness 2mm
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
This module is designed to penetrate thicker desktop and electrical enclosures for long-distance, high-current power supply.
^^ Input voltage: 24V (can work in the wide voltage range of 15V~30V) ^^
Load current: 1.3A;
Receiving output voltage and current: Receiving output 12V/1A when 8~10mm ^^
Transmitting coil size: outer diameter 43mm, thickness 2.3 mm;
Transmitter module size: 16mm*24mm ^^
Receiving module size: 10mm*25mm*3mm;
Receiving coil size: outer diameter 43mm, thickness 2mm
^^ Input voltage: 24V (can work in the wide voltage range of 15V~30V) ^^
Load current: 1.3A;
Receiving output voltage and current: Receiving output 12V/1A when 8~10mm ^^
Transmitting coil size: outer diameter 43mm, thickness 2.3 mm;
Transmitter module size: 16mm*24mm ^^
Receiving module size: 10mm*25mm*3mm;
Receiving coil size: outer diameter 43mm, thickness 2mm
