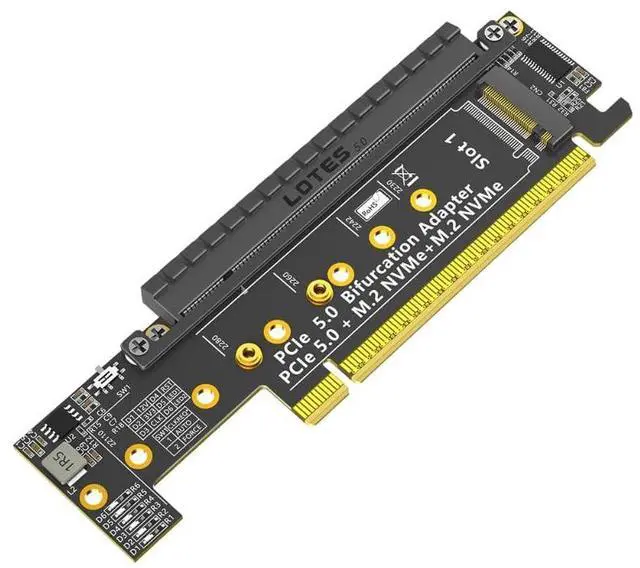

Mustpoint Dual NVMe Adapter, PCIe 5.0 X16 to Dual NVMe and More PCIE x16 (x8 Signal) Adapter for M.2 NVMe SSD (PCI-e Bifurcation Required)

Dual NVMe PCIe Adapter can add 2x M. 2 NVMe SSD Slot via PCIe 5.0 x16, but also expaind extra PCIe x16 slot (x8 Signal), which can use for expanding any other PCIe Device ^^ The motherboard need support "PCIe x8x4x4 Bifurcation", all of the slots will works in full speed. If MOBO only supports "x4x4x4x4", the expanded PCIe x16 will only have x4 signal. If MOBO does not support"PCIe Bifurcation", Only the PCIe x16 works, None M. 2 SSD can be recognized ^^ The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x8x4x4" in BIOS ^^ Compatible with M.

2 PCI-e NVMe SSDs in all sizes: 110x22mm, 80x22mm, 60x22mm and 42x22mm, 30x22mm; Not support any M. 2 (SATA-Based B+M Key)
SSD;
Motherboard Compatibility: Most Server and X299, X399 can support PCIe x8x4x4 Bifurcation ^^

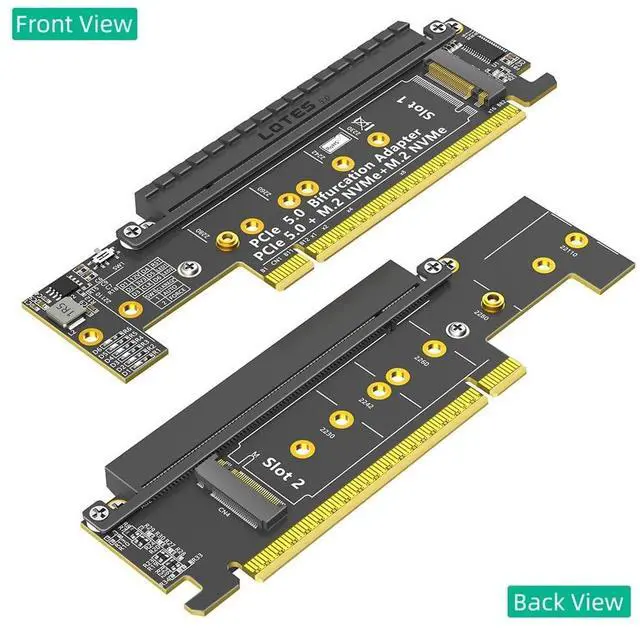

Upgraded Design: 1. Two Slots of NVMe SSD are on positive and negative sides. So the card is in small size, And individual LED Indicator design will show each SSD's Working Status 2. The more PCIe x16 Slot is very useful when there is no more PCIe Slot on motherboard
