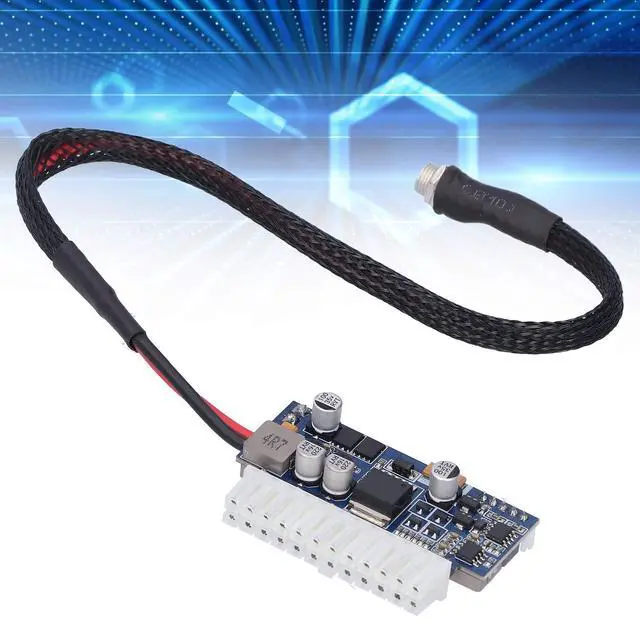

Cuifati A200WL 19V 200W DC ATX Power Adapter Board with High Heat Resistance, Over Current and Short Circuit for Small ATX Boards,Mini Computers,HTPC Computers,POS Machines

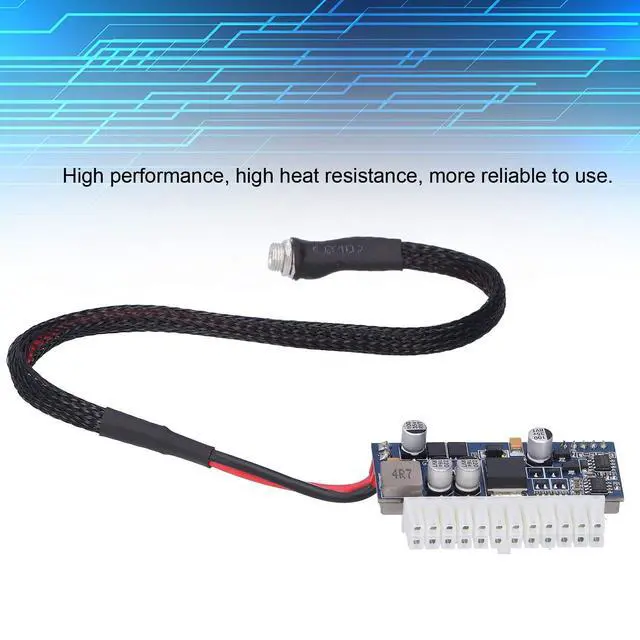

- 200W power adapter board using highquality PCB material, high performance, high heat resistance, more to use
- Eliminate 24 unnecessary wires by plugging directly into the motherboard ATX connector
- Suitable for small ATX boards to save space in the case without affecting power requirements
- With overcurrent and shortcircuit
- Suitable for MINI computers, HTPC computers, POS machines, ITX cases, network servers, industrial control systems
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Spec: Item
Type: Desktop Computer
Power ModuleMaterial: PCB
Model:
LD-A200WLPower: 200WInput
Voltage: 17-24VOutput
Voltage/Maximum Load: +5VSB/2A, +5VDC/8A, + 3.3VDC /8A, +12VDC/12A, -12VDC/ 0.15AO perating

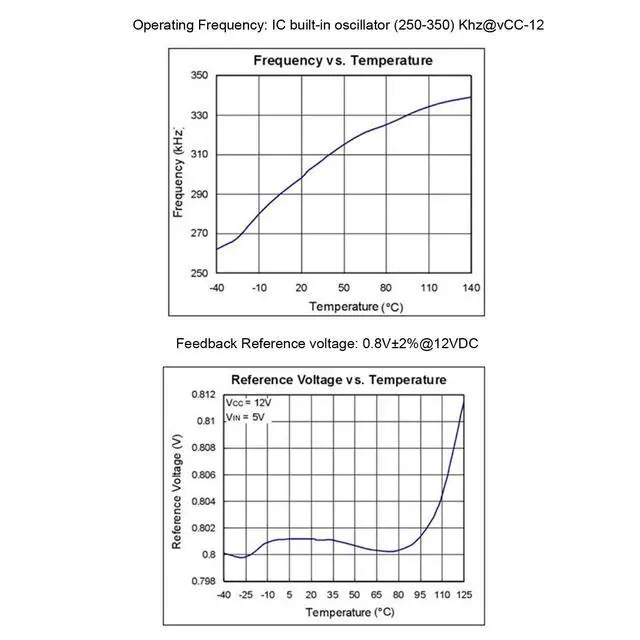

Frequency: IC built-in oscillator (250-350) kHz at
Vcc-12VFeedback Reference Voltage: 0.8V 2% at 12VDC

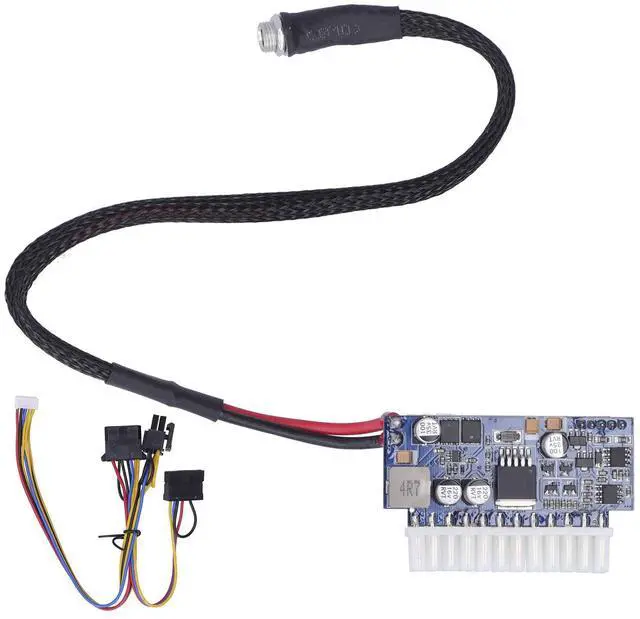

Interface: 1 x ATX24Pin, 1 x CPU4+4Pin, 1 x IDE, 1 x
DC5525Cable Length: DC
Cable: Approx.
320mm/ 12.6 inCPU Cable: Approx.

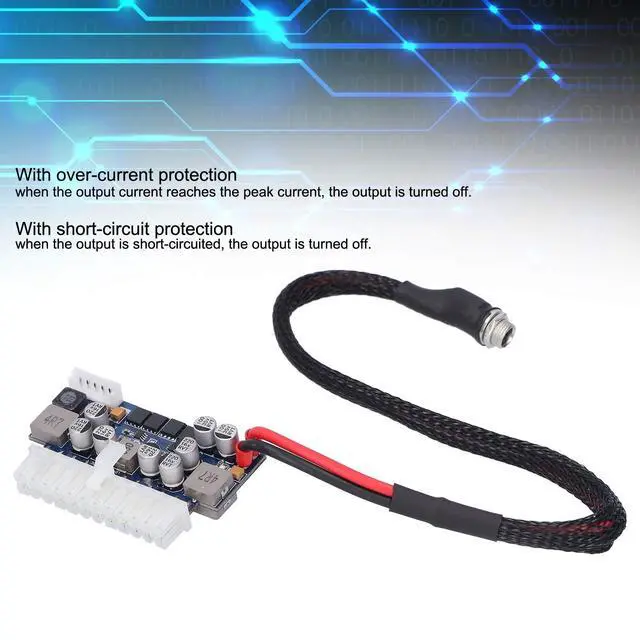

210mm/ 8.3 inIDE Cable: Approx. 200mm/ 7.9 inFunction (for + 3.3V, +12V, + 5.00V and + 5.00VSB power output)Overcurrent: When the output current reaches the peak current, the output is turned offShort
Circuit: When the output is short circuited, the output is closedWorking
Temperature/Humidity: -5 - 55/45% - 75%Storage
Temperature/Humidity: -40
- 70/10% - 90%Applications: for MINI computers, for HTPC computers, for POS machines, for ITX cases, for web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
PackageList: 1 x Power Adapter Board
Type: Desktop Computer
Power ModuleMaterial: PCB
Model:
LD-A200WLPower: 200WInput
Voltage: 17-24VOutput
Voltage/Maximum Load: +5VSB/2A, +5VDC/8A, + 3.3VDC /8A, +12VDC/12A, -12VDC/ 0.15AO perating
Frequency: IC built-in oscillator (250-350) kHz at
Vcc-12VFeedback Reference Voltage: 0.8V 2% at 12VDC
Interface: 1 x ATX24Pin, 1 x CPU4+4Pin, 1 x IDE, 1 x
DC5525Cable Length: DC
Cable: Approx.
320mm/ 12.6 inCPU Cable: Approx.
210mm/ 8.3 inIDE Cable: Approx. 200mm/ 7.9 inFunction (for + 3.3V, +12V, + 5.00V and + 5.00VSB power output)Overcurrent: When the output current reaches the peak current, the output is turned offShort
Circuit: When the output is short circuited, the output is closedWorking
Temperature/Humidity: -5 - 55/45% - 75%Storage
Temperature/Humidity: -40
- 70/10% - 90%Applications: for MINI computers, for HTPC computers, for POS machines, for ITX cases, for web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
PackageList: 1 x Power Adapter Board
