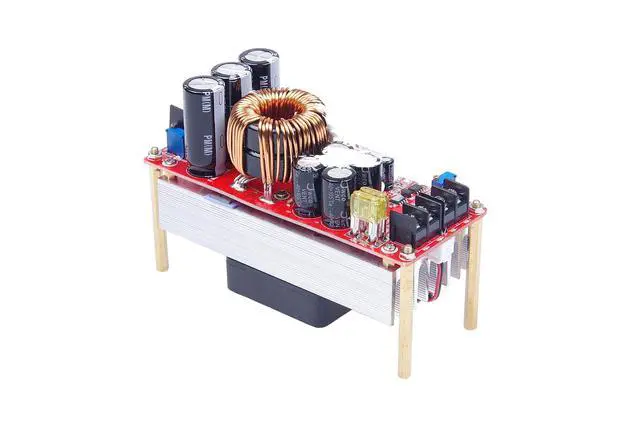

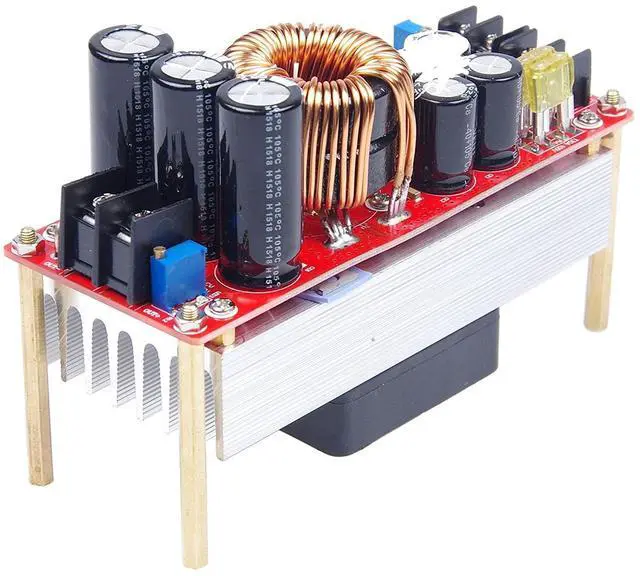

KNACRO 1500W 30A DC Boost Converter Step-up Power Supply Module in 10-60V Out 12-90V New Electric Unit Modules Module

Module properties: non-isolated step-up module (BOOST)
Input voltage: DC
10V~60VInput current: 10~30V input voltage, maximum current 30A31~60V input voltage, maximum
current 25AQuiescent current: 15 mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)Output voltage: 12~90V
continuously adjustableConstant range: 0.8
~20A( 0.3AT emperature: -40~ + 85(ambient temperature is too high, please
enhance heat dissipation)Operating frequency: 150
KHzConversion efficiency: 92%
~ 97%Low battery protection: yesInput
reverse polarity protection: yesEnter
the anti-reverse protection: yesShort
circuit protection:
yesInstallation: 4 x 3 mm screw holesModule size (L*W*H): 130 x 52 x 85 mmApplications: 1. DIY a power supply, 12V can input and output can 12-50V adjustable. 2. The power supply for your electronic device, according to your system can set the output3. As the power supply for your digital products supply. 4. DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack, so you can go where light where books. 5. Solar panel regulator. 6. To the battery, rechargeable lithium batteries.
Note: Output positive and negative can not be reversed, can not be short circuit. Long time high current high power full load work should pay attention to ventilation and heat dissipation, in order to extend the life of the power supply. Use battery, switch power supply, solar panels, generators and so on as the input source, the need to reduce the battery protection, otherwise it will damage the battery and power supplyPackage
Included: 1 x Boost Constant Current Module
