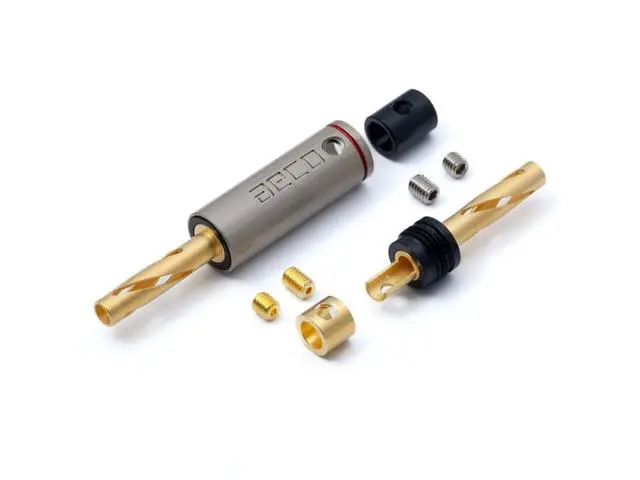

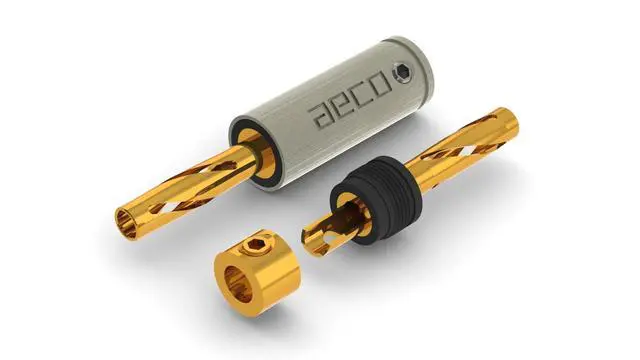

aeco Banana Plug ABP-1111, 4pcs/1set, Gold Plating, Vacuum Bag

NOTE: This product is only suitable for 4.0 mm binding post. (Not for 4.1 mm) The first time when you put the banana plug and the binding post together, it might be a little bit tight. Please insert with clockwise. The interface will adjust the shape into a perfect size basic on the binding post. screw for conductor (3/4 mm) (4 each) screw for cable (3/4 mm) (4 each)
Material:
Body: Tellurium Copper (#C14500 / copper contains over 99%)
Head lock: POM
Ring: Brass alloy (#C3604)
Shell: Brass alloy (#C3604)
Screw for conductor: Brass alloy (#C3604)
Screw for cable:
IronFinished:
Body: 10u" Gold plating (no nickel base)
Head lock: None
Ring: 3u" Gold plating (no nickel base)
Shell: Logo lathing / Hairline surface treatment / Satin nickel plating
Screw for conductor: 3u" Gold plating (no nickel base)
Screw for cable: Nickel plated.
Electrical Characteristics: Contact resistance < 0.3 mOhm (It was test by ABI-0601. ) The test will shows different results depends on the different binding post.
Dimension: Biggest OD 09.0 mm Cable hole with sleeve 04.5 mm Cable hole without sleeve 06.5 mm Total
Length 43.0 mmPacking: Vacuum
Bag(4Pcs/1Set)Recommend soldering temperature: Temperature Soldering Iron, please keep 400 degree within 8~10 second. Product production process comply with RoHS.
