600W DC-DC 12V-80V to 2.5V-50V 25A High Power Adjustable Step-Down Power Supply Module with Fan Buck Converter
- High performance, continuous adjustable output voltage and current; Add digital display function, output voltage can be displayed, more convenient to use; Easy to operate, plug can be used;
- Input voltage :DC12-80V(can not use 72V battery), output voltage :2.5V-50V adjustable (only step-down)(maximum output voltage = input voltage * 0.8), output current :20A(maximum)25A overcurrent, maximum power :600W, using high-quality materials, input voltage up to 80V; High efficiency, up to 93%.

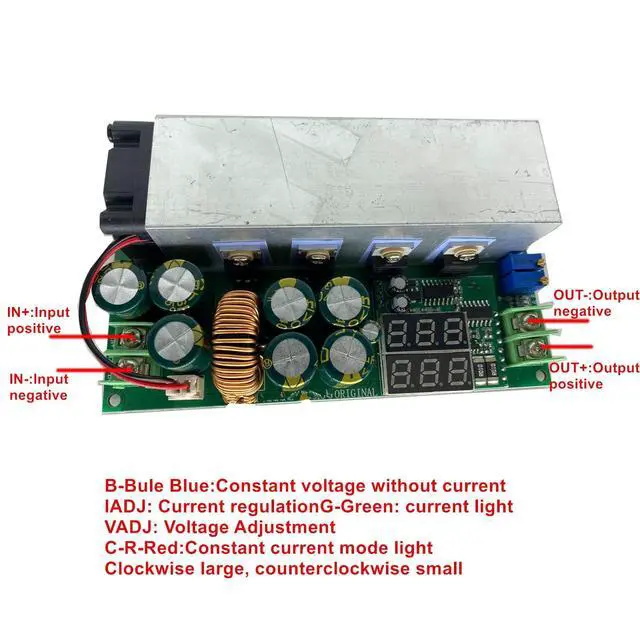

- IN+: input positive, IN-: input negative, OUT+: output positive, OUT-: output negative, B-blue: voltage regulator no current, G-Green Green indicator: current indicator, C-R-Red: constant current mode indicator, IADJ: current regulation, clockwise larger, counterclockwise smaller, VADJ: voltage regulation, Clockwise larger, counterclockwise smaller
- Tips: When charging batteries and accumulators, please add diodes at the output end
- [Satisfactory Service]: We Provide 24-hour online service,If you
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
High performance, continuous adjustable output voltage and current; Add digital display function, output voltage can be displayed, more convenient to use; Easy to operate, plug can be used;
Input voltage: DC12-80V (can not use 72V battery), output
voltage: 2.5V -50V adjustable (only step-down)(maximum output voltage = input voltage * 0.8 ), output
current: 20A (maximum) 25A overcurrent, maximum
power: 600W, using high-quality materials, input voltage up to 80V; High efficiency, up to 93%.
Interface description:
IN+: Enter
the positive terminalIN-: indicates
the input negative electrodeOUT+: Output
positive terminalOUT-: indicates the output negative terminalB-blue blue light: stable voltage without currentG-Green
Green indicator: Indicates
the current indicatorC-R-Red: indicates the constant current mode indicatorIADJ: Current adjustment, larger clockwise, smaller
counterclockwiseVADJ: Voltage regulation, larger clockwise, smaller
counterclockwiseNote: When charging batteries and accumulators, add diodes to the outputPackage
Included: 1. * 600W 25A Power Supply Module
Input voltage: DC12-80V (can not use 72V battery), output
voltage: 2.5V -50V adjustable (only step-down)(maximum output voltage = input voltage * 0.8 ), output
current: 20A (maximum) 25A overcurrent, maximum
power: 600W, using high-quality materials, input voltage up to 80V; High efficiency, up to 93%.
Interface description:
IN+: Enter
the positive terminalIN-: indicates
the input negative electrodeOUT+: Output
positive terminalOUT-: indicates the output negative terminalB-blue blue light: stable voltage without currentG-Green
Green indicator: Indicates
the current indicatorC-R-Red: indicates the constant current mode indicatorIADJ: Current adjustment, larger clockwise, smaller
counterclockwiseVADJ: Voltage regulation, larger clockwise, smaller
counterclockwiseNote: When charging batteries and accumulators, add diodes to the outputPackage
Included: 1. * 600W 25A Power Supply Module
