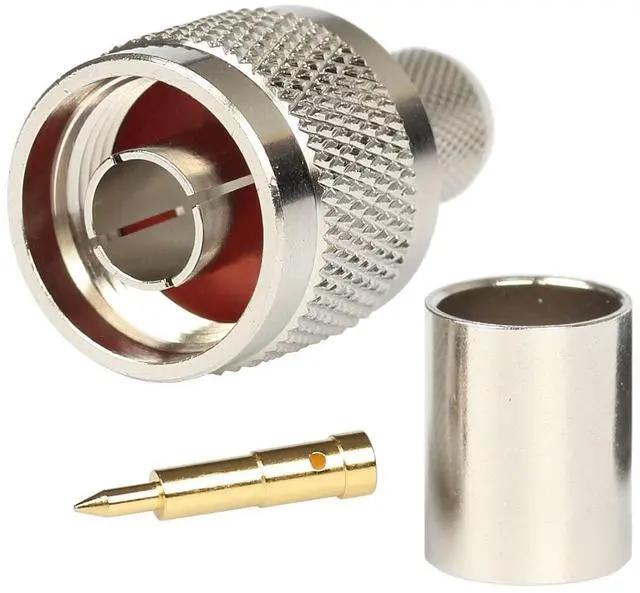

Riotaxy Pack of 10 N Male Plug Crimp Connector 50 ohm for LMR400 Belden 9913 RG8 Nickel Machined Brass Construction (10 Piece N Male for lmr400)
- 1.Body brass nickel plated, Pin brass gold plated, Teflon(PTFE) Insulator ,50 ohm
- 2.Salt spray test for 48 hours ,VSWR below 1.3(DC-6G)
- 3.It is easy to install, is reliable, and is built to last. Work with the 50ohm low loss cable :LMR-400 and Belden 9913 and L-com ca-400 and RG8

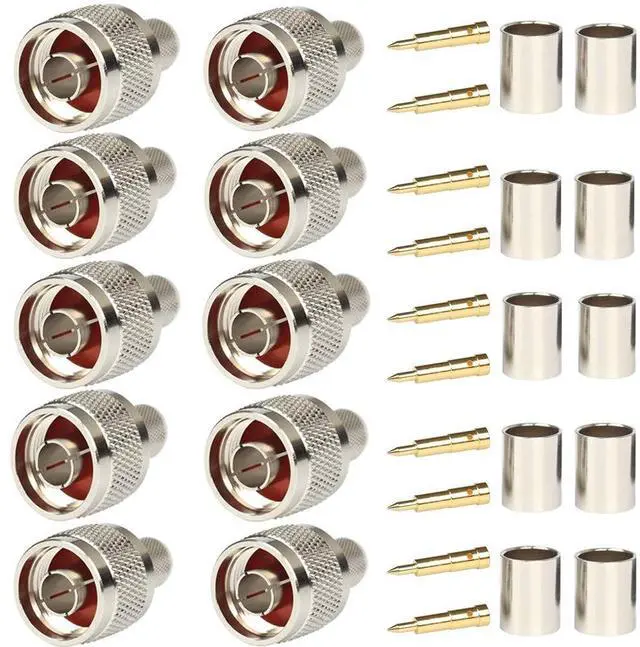

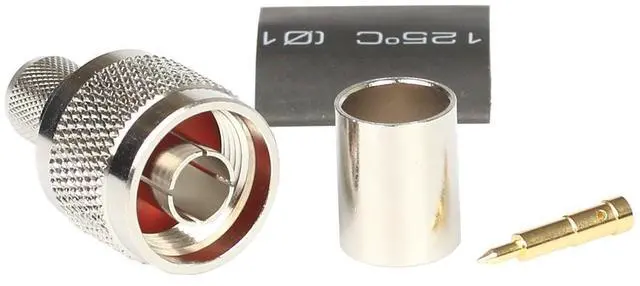

- 4. 10 piece connectors with Black heat shrink tube, It connected with any brand N female connector
- 5. Insulation Resistance : 5000M Durability : 500 cycles
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1.
Materials & Plated: Body brass nickel plated, Pin brass gold plated, Teflon (PTFE) Insulator for a reliable signal every time. Salt spray test for 48 hours, VSWR below 1.3 (DC-6G)2.
Electricail Characteristics:
Impedance: 50 ohmDielectric
Withstanding Voltage: 2500V (RMS)
Contact Resistance: Center conductor 1mOuter conductor 1m
Insulation Resistance:
5000MDurability: 500
cyclesTemperature range: -40C to +85 C3.
Package include: 10 piece connectors with Black heat shrink tube. 4.
Build or Repair Cable: Use to create your own custom length N cable assembly with this N male crimp connector which is widely used in Wireless Communications Systems, Short Antenna Feeder runs or any other application (e. g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas). It is so easy to install, is reliable, and is built to last. Work with the 50ohm low loss cable: LMR-400 and Belden 9913 and L-com ca-400 and RG8. Use proper crimping tool for assembly It connected with any brand N female connector.
Materials & Plated: Body brass nickel plated, Pin brass gold plated, Teflon (PTFE) Insulator for a reliable signal every time. Salt spray test for 48 hours, VSWR below 1.3 (DC-6G)2.
Electricail Characteristics:
Impedance: 50 ohmDielectric
Withstanding Voltage: 2500V (RMS)
Contact Resistance: Center conductor 1mOuter conductor 1m
Insulation Resistance:
5000MDurability: 500
cyclesTemperature range: -40C to +85 C3.
Package include: 10 piece connectors with Black heat shrink tube. 4.
Build or Repair Cable: Use to create your own custom length N cable assembly with this N male crimp connector which is widely used in Wireless Communications Systems, Short Antenna Feeder runs or any other application (e. g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas). It is so easy to install, is reliable, and is built to last. Work with the 50ohm low loss cable: LMR-400 and Belden 9913 and L-com ca-400 and RG8. Use proper crimping tool for assembly It connected with any brand N female connector.
