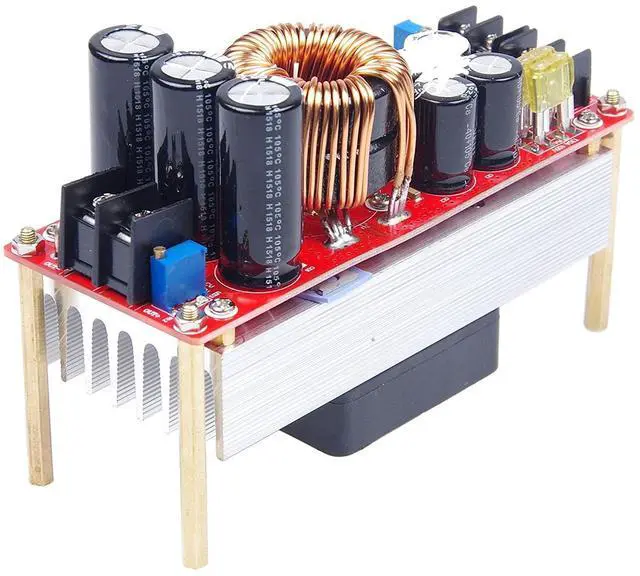

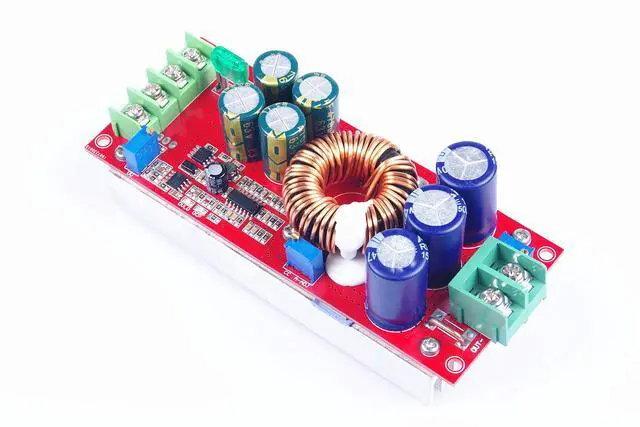

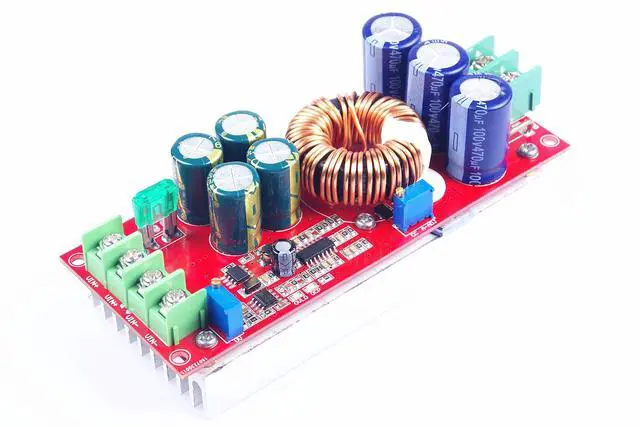

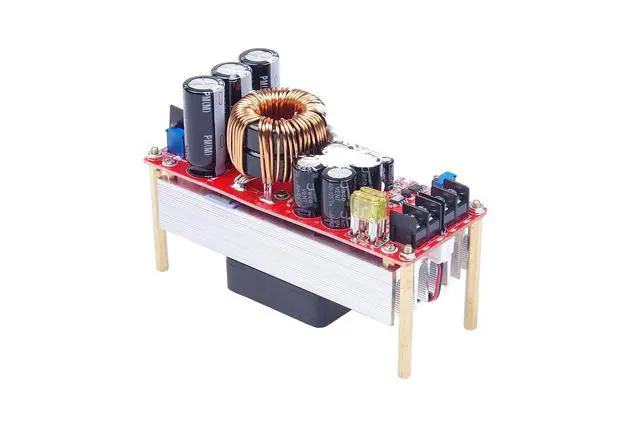

KNACRO DC 1500W 30A DC Boost Voltage Converter 10V-60V to 12V-80V Step-up Power Supply Module Regulator Controller Constant Volt/Amp Car Regulated Laptop Battery Charger LED Driver
- Large heat sink design , supports a wide input voltage 10-60V, 12-83V wide adjustable output voltage, low dropout voltage.
- Using four 63V / 470UF high-frequency low-impedance electrolytic capacitors, output 3 100V / 470UF electrolytic capacitor. 33mm Super Power Kool magnetic ring with three 1.2MM of copper wire and wound to prevent magnetic saturation temperature of the flow through the case.
- The back four where two high-power tube is 140A / 100V current switching power MOS two 30A / 100V freewheeling Schottky.
- Using a 116mm * 58mm * 14mm aluminum radiator heat. 5015 fan and heat sink (5mm * 5mm * 15mm) mounting holes; import power management chip output voltage and current are continuously adjustable.
- If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Size: 1500W
CC CV RegulatorParameters:
Name: High power DC Booster moduleInput
Voltage: DC 10.5V -60VInput
Current: 20A MAX
Input Power: 1200W MAX
Output Voltage: DC12V-80V(Continuously adjustable (the output voltage is need higher than the input voltage)
Output Current: 0- 14.4A MAX
Output Power: 1150W
MAX(Input: 60V, Output80V/ 14.4A )Conversion
Efficiency: 93%-97% (Efficiency with input and output voltage and current related) With intelligent temperature sensorInput anti-reverse protectionInput under-voltage protection (with yellow LED indicator, adjustable voltage)Input over-current protection (with red LED indicator) Output constant voltage constant current continuous adjustable.
Working Temperature:
-20aC-50aCSize: 130*52*58mm (L * W *
H) Weight: 300gThe
main purpose: High-power solar street light drive. All kinds of LED lighting constant current drive. Car and a variety of mobile devices. DIY adjustable constant voltage constant current power supply. Solar charging. Charge a variety of batteries.
Package Included: 1x Boost Converter Constant Current Module
CC CV RegulatorParameters:
Name: High power DC Booster moduleInput
Voltage: DC 10.5V -60VInput
Current: 20A MAX
Input Power: 1200W MAX
Output Voltage: DC12V-80V(Continuously adjustable (the output voltage is need higher than the input voltage)
Output Current: 0- 14.4A MAX
Output Power: 1150W
MAX(Input: 60V, Output80V/ 14.4A )Conversion
Efficiency: 93%-97% (Efficiency with input and output voltage and current related) With intelligent temperature sensorInput anti-reverse protectionInput under-voltage protection (with yellow LED indicator, adjustable voltage)Input over-current protection (with red LED indicator) Output constant voltage constant current continuous adjustable.
Working Temperature:
-20aC-50aCSize: 130*52*58mm (L * W *
H) Weight: 300gThe
main purpose: High-power solar street light drive. All kinds of LED lighting constant current drive. Car and a variety of mobile devices. DIY adjustable constant voltage constant current power supply. Solar charging. Charge a variety of batteries.
Package Included: 1x Boost Converter Constant Current Module
