AHD 1080P Backup Camera 9" DVR Monitor Kit,4x IR Night Vision Front Side Rear View Mirror Reverse Camera +9 inch IPS 4-Split Screen Monitor for RV Bus Semi Box Truck Trailer Tractor 5th Camper 12V/24V

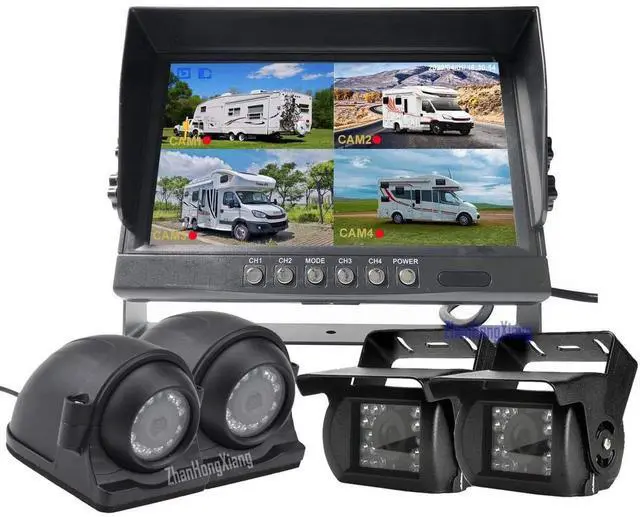

- 4 Backup Side Camera System with 9 inch Car DVR recording Monitor : 9 inch Large screen with quad split 4 x IR Reverse Camera Hard wired version Camera system, come with 32GB SD Memory for Video Record,guarantees safe and 360 View clear image Avoid Blind spot

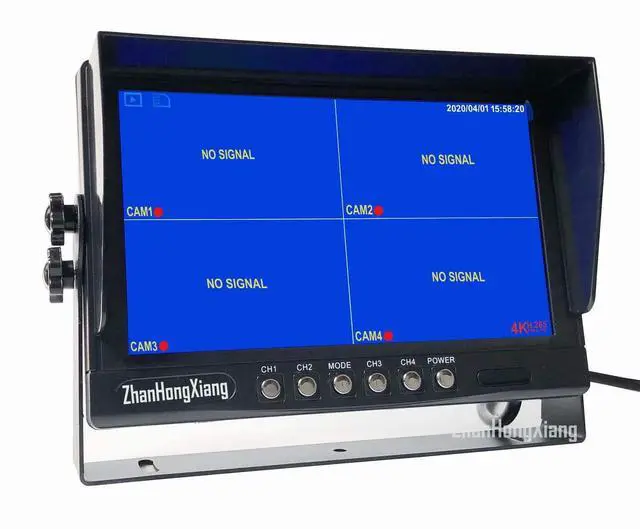

- 4Pin 9 inch IPS monitor Build-in DVR , 4 channels video input ,Quad Split Screen Display,It can display Full images/3 images/4 images,Grid Line Can be turn on/off,Image can be adjust for mirror or none mirror or flip with Upside Down
- FHD 1080P 2.0 Megapixel Rear Camera IP68 Waterproof with 4 Pin Connector( Shockproof), 2x 18 LED IR Night Vison Car HD Color Backup Camera and 2x 12 LED IR side view Camera , 100% Not Wash Out AHD 1080P Sensor HD Rear View Camera, and 2.8mm lens (120 horizontal wide view angle )
- The Backup Camera System come with four Back up camera,and 5m10m 20m 4-Pin Extension cable Best for Long Truck Trailer RV Van Bus Motorhome Schoolbus Camper Lorry 5th wheel and All other heavy Vehicle
- There is 3x t
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Only need to connect the monitor power wire with car electronics system: Red and yellow wire to car Acc+, yellow wire to car battery+Black wire to GND, Green Blue Grey Brown wire to reversing Trigger+ or other Trigger+ (or No need to connect) Insert the Memory to the card slot and press Mode button to recordSimple to installation, Easy to use Easy to mountBest for All Heavy Vehicle such as Box Truck Trailer Bus RV 5th Wheel Camper Pickup Boat School Bus Tractor Motorhome9" CAR TFT LCD MONITOR
Display Size: 9
Inch AHD DVR ScreenPower requirement: DC
12V-24VConsumption:
8WVideo: 4 channels input, Quad Split Screen DisplayOur Split monitor can display 4 video at same timeFull images/3 images/4 images adjustableBuild in SD DVR Great Loop Recording functionsEach camera Record with a separate videoCome with 32GB SD Memory Card, Max support 128GBReverse Grid Lines Can be turn on or offImage Can be adjust for mirror or none MirrorImage Support Flip with Upside DownSuitable for Front view/ rear view/side view360clearly View to avoid blind spotNet
Weight: Approx.
1000gLauguage: English, ChineseAHD 1080P IR Backup Camera100% Not Wash Out AHD 1080P
Sensor Mirror imageLens: 2.8 mm (120 View angle )
Number of pixels: 2.0 MP Camera (1920*1080)
Minimum illumination: 0 LUX
Night vision: LED
IRVideo Output: 4Pin
Aviation Connectorwork Temperature: -20C~+60CPower
Requirement: DC
12V-24VWaterproof: IP
69Package included: 1 x 9" AHD 4CH QUAD Split DVR Monitor1 x U shape Metal Bracket1 x Remote controller2 x 1080P 18 LED IR Rear View Camera2 x 1080P 12 LED IR Side View Camera1 x 4Pin 20m Aviation Cable1 x 4pin 10m Aviation Cable2 x 4Pin 5m Aviation Cable1 x 32GB SD MemoryNeed 10 inch Touch monitor system, Please check this B0B616BYGX B0B5D3LB9F
Display Size: 9
Inch AHD DVR ScreenPower requirement: DC
12V-24VConsumption:
8WVideo: 4 channels input, Quad Split Screen DisplayOur Split monitor can display 4 video at same timeFull images/3 images/4 images adjustableBuild in SD DVR Great Loop Recording functionsEach camera Record with a separate videoCome with 32GB SD Memory Card, Max support 128GBReverse Grid Lines Can be turn on or offImage Can be adjust for mirror or none MirrorImage Support Flip with Upside DownSuitable for Front view/ rear view/side view360clearly View to avoid blind spotNet
Weight: Approx.
1000gLauguage: English, ChineseAHD 1080P IR Backup Camera100% Not Wash Out AHD 1080P
Sensor Mirror imageLens: 2.8 mm (120 View angle )
Number of pixels: 2.0 MP Camera (1920*1080)
Minimum illumination: 0 LUX
Night vision: LED
IRVideo Output: 4Pin
Aviation Connectorwork Temperature: -20C~+60CPower
Requirement: DC
12V-24VWaterproof: IP
69Package included: 1 x 9" AHD 4CH QUAD Split DVR Monitor1 x U shape Metal Bracket1 x Remote controller2 x 1080P 18 LED IR Rear View Camera2 x 1080P 12 LED IR Side View Camera1 x 4Pin 20m Aviation Cable1 x 4pin 10m Aviation Cable2 x 4Pin 5m Aviation Cable1 x 32GB SD MemoryNeed 10 inch Touch monitor system, Please check this B0B616BYGX B0B5D3LB9F
