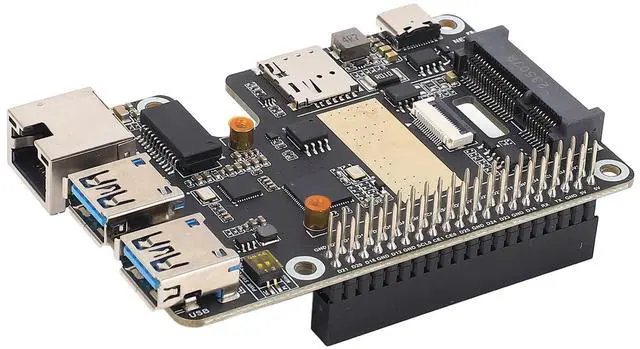

PCIe to MiniPCIe/Gigabit Ethernet/USB 3.2 Gen1 HAT, for RasPi 5 Support MiniPCIe Interface 4G Module High Speed EG25-G MPCIe Module

Compatibility: Designed for RasPi 5, with for HAT+ standard, onboard I2C EEPROM, and support for RasPi 40pin GPIO header for stacking and expansion. Support PCI-Ex1 Gen2 mode.

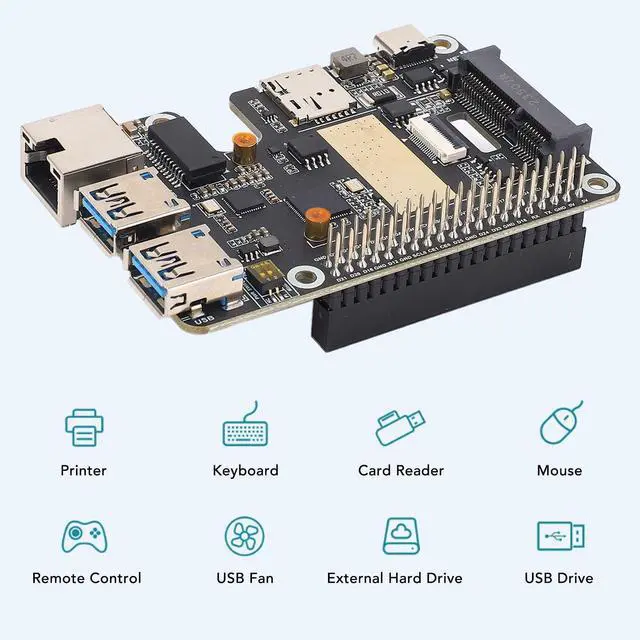

High Speed Connectivity: Onboard 2 USB 3.2 Gen1 ports for connecting more peripherals, supports PCIe expansion USB3.2 MiniPCIe interface for high speed communicating with low latency.

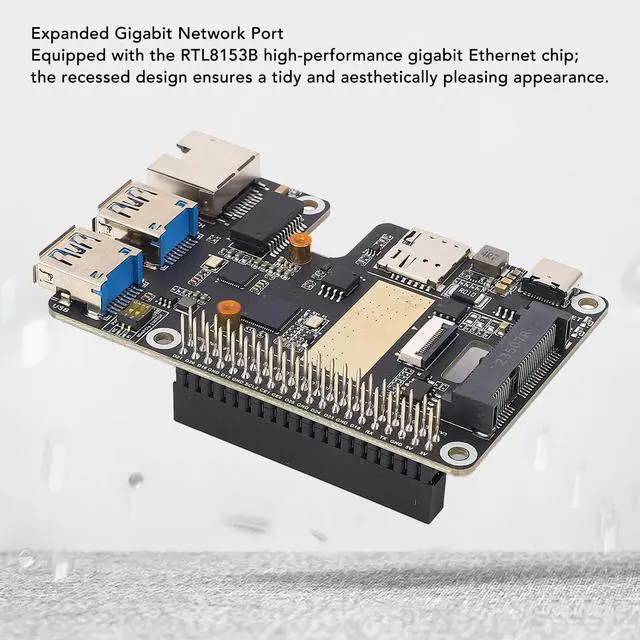

Versatile Compatibility: Supports MiniPCIe interface for SIM7600G-H-PCIE and for EG25-G mPCIe 4G modules, expands no driver Gigabit Ethernet port. Equipped with Type C interface for 4G networking, debugging, firmware upgrades, or external power input.

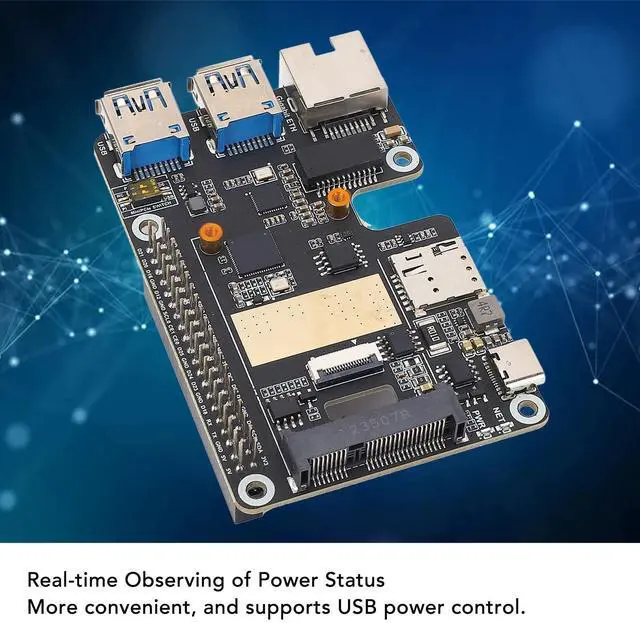

Real Time Observing: Features onboard power observing chip for real time measurement of module voltage, current, and power parameters. Includes reset key, power, and network status indicators for convenient debugging and observing of module operating.
LTE Cat 4 Wireless Module: EG25-G mPCIe is a globally compatible LTE Cat 4 wireless communicating module designed for M2M an

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Specification: Item
Type: EG25-G
MPIe ModuleMaterial: PCB
Operating Frequency:
LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28LTE-TDD: B38, B39, B40, B41WCDMA: B1, B2, B4, B5, B6, B8, B19GSM: 850, 900, 1800, 1900
MHzGNSS: Global Position System, Beidou, GLONASS, GALILEO, QZSS
Operating System: for Win for
AndroidCommunicating Protocol: TCP, UDP, PPP, FTP, HTTP, NTP, QMI, NITZ, SMTP, MQTT, CMUX, HTTPS, FTPS, SMTPS, SSL, MMS, FILESMS
Support: MT, MO, CB, Text, PDU
Firmware Upgrade: DFOTA
USB interfaceRegion Compatibility:
GlobalCard: Supports up to 32G (Excluding) How to

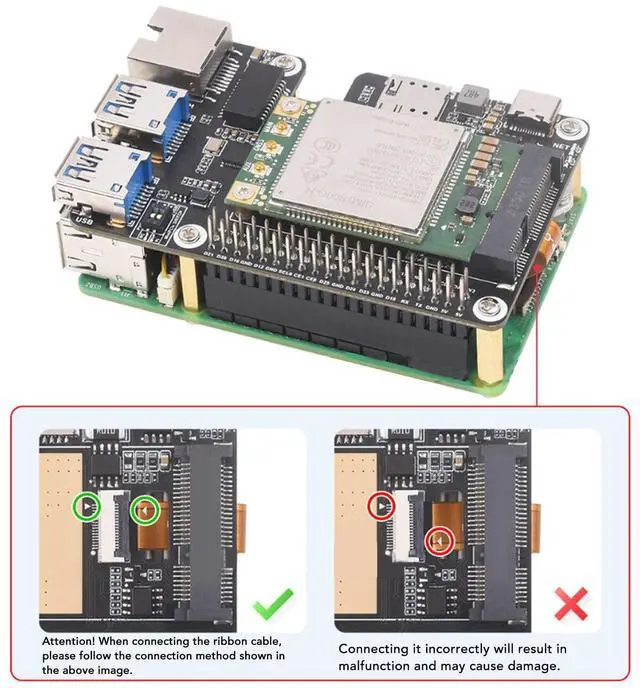

Use: Please consult the electronic manualpacking list: 1 x Expansion Board1 x Ethernet Cable1 x Global Position System Cable1 x Ribbon Cable2 x Antennas1 x 4G Module3 x Adapter Cables1 x Set of Screws
