2Pcs 0.3m MPO Fiber Optic Patch Cord, Single Mode Cable Jumper Plug, Female to Female, 12 Core 6 Channel Type B, APC end face, LSZH 3.0mm G657A1, Compatible with 8 Core 4 Channel MPO
- Main Parameters0.3m(0.98 feet) MPO to MPO single mode 3.0mm fiber patch cord G657A1, female to female connector, utilizes type B wiring structure, APC polished end face.
- 12 Cores 6 channelThe MPO cable supports 12 cores fiber 6 channel transmission, which is compatible with 8 core fiber 4 channel transmission, achieving high-performance information transmission of 40G-100G.

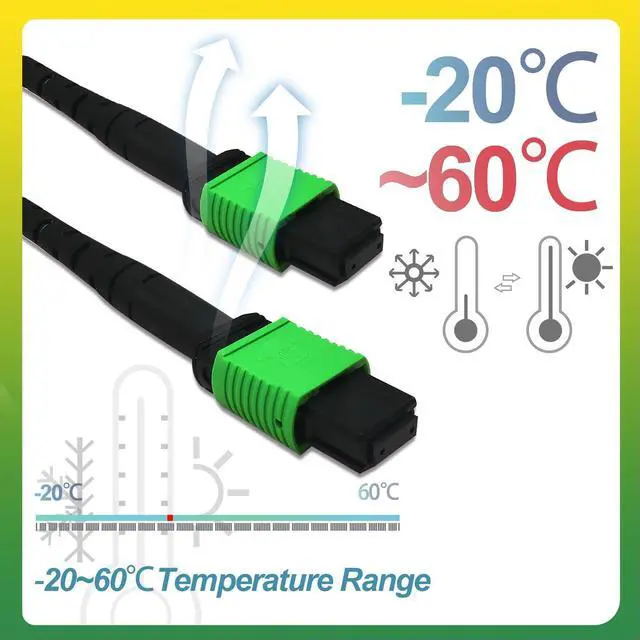

- Stable Signal transmissionThe signal is transmitted by high-quality connectors (low insertion loss0.75dB, high return loss 60dB). And the connectors can be pluged for more than >1000+ time, supports operating -20to 60 temperature

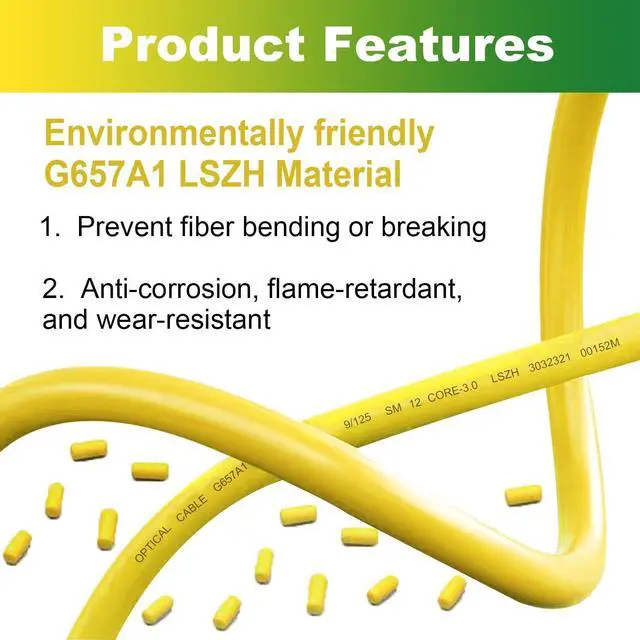

- Good Fiber ProtectionMPO fiber jumpers adopt environmentally friendly LSZH outer sheath material to effectively prevent fiber bending or breaking.It also has anti-corrosion, flame-retardant, and wear-resistant characteristics.
- Widely applicableThe MPO is widely deployed in high end data centers for 40G-100G data transmission in fiber communication systems, like QSFP+ and QSFP28
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

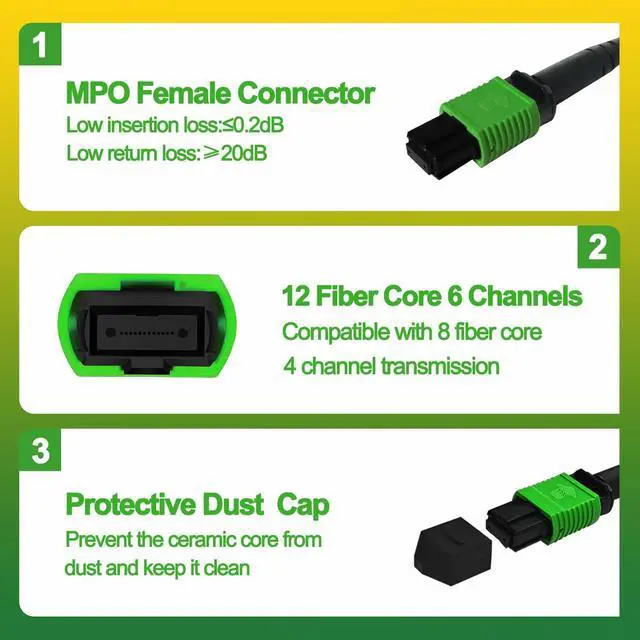

Product Description-All the data were tested with high-precision instruments-MPO jumpers are widely used in the environment where high-density integrated optical fiber lines are needed in the wiring process, and the internal and external connection applications of FTTX, 40/100GSFP, and other transceiver modules or devices.

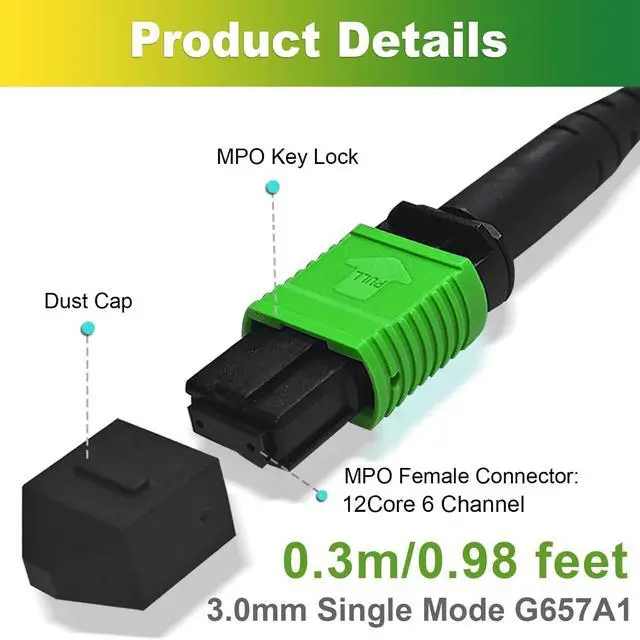

Product DetailConnector Type: MPO Female to
MPO FemaleFiber type: 3.0 mm Single modeEnd
Face Type: APC
Core Type: 12 Core 6 ChannelsCompatible with 8 Core 4
ChannelInsertion Loss: 0.75 dbReturn
Loss: 60dbOperating
temperature: -20~60Cable
Length: 0.3 m/ 0.98 feetCacket MaterialLZSH
Packing Quantity: 2 PCS
Product DetailConnector Type: MPO Female to
MPO FemaleFiber type: 3.0 mm Single modeEnd
Face Type: APC
Core Type: 12 Core 6 ChannelsCompatible with 8 Core 4
ChannelInsertion Loss: 0.75 dbReturn
Loss: 60dbOperating
temperature: -20~60Cable
Length: 0.3 m/ 0.98 feetCacket MaterialLZSH
Packing Quantity: 2 PCS
