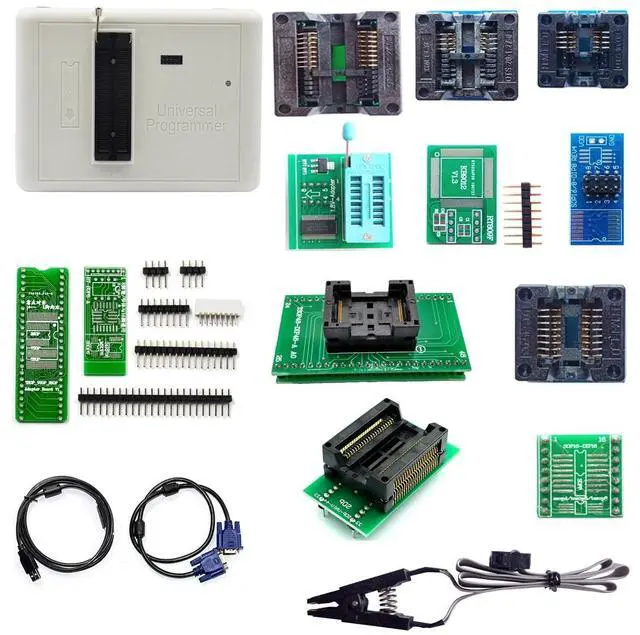

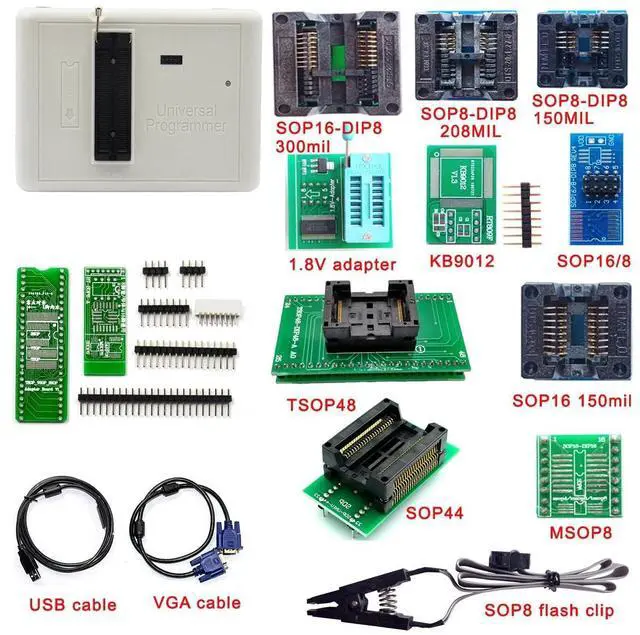

RT809H Programmer 10 Adapters EMMC-Nand Flash Extremely Fast Universal Chip Programmer Kit IC eprom Adapters with Cables ISP Cables TSOP48 TSOP56 CAR/DVD/TV
- RT809H support list: LCD TV, EMMC NAND FLASH POS, car navigation, car audio, mobile phone full font library T8 series / KB90 series / MEC16 series / NPCE series notebook EC read and write, unlimited capacity. TSOP48 TSOP56 pin TOP8-16 feet LCD TV, LCD Notebook Motherboard BIOS Notebook EC LCD Tablet Read/Write, Home Appliance DVD Memory SPD DDC/EDID Read & Write, Logic Board Read & Write, Serial Print Information, Network Set-top Box,HiFi Player Read & Write
- Support Chips: 24/25/93/95 series serial SPIFLASH, EEPROM offline reading and writing,Support 26/27/28/29/30/39/49/50 series NOR FLASH/PROM read and write,Support LCD/LED flat-panel TV, display mainstream solution chip ISP online reading and writing
- What Support:support notebook computer motherboard 18/KB90/NPCE/MEC16 series EC chip read and write,Support automatic identification and offline reading and writing of TSOP48 and BGA package NAND FLASH parameters,Support online and offline EMMC identification, BOOT/USER/RPMB/GPP a
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
RT809H special features 1: Intelligent perception, the chips are placed arbitrarily on the locking seat (NAND chips need to be placed according to the orientation), common memory does not need Look at the direction, even if it is reversed, it will not burn the chip and can read and write normally! And intelligently identify the memory model, more suitable The operation should be learned with novices.
2: NAND_AUTO, which can identify most chips, and then perform read and write operations.
3: EMMC_AUTO_ISP, can identify most chips, and then perform read and write operations 4: Deep sleep function, when turned on, close the software and automatically turn off the power of the programmer.
5: SELFTEST, the self-test test can detect whether the programmer is faulty. When most types of chips are read and written offline, they support the functions of intelligent identification and random placement High-speed USB interface, WHQL certified USB driver, read and write speed up to 25MB/S All-wheel drive architecture, free software upgrades, universal adapters as much as possible, reducing usage costs for users The Only universal programmer which can automatically detect chip number for all Chips. The only universal programmer which can put ic in any position and make intelligent sense. The Only universal programmer Support Read and program Laptop I/O via keyboard line. The Only universal programmer Support Read and Program LCD TV VIA VGA and HDMI PORT. Support UPTO 64GB
NAND FLASH Short description: 48-pins powerful pindrivers, no adapter required for any DIL devices ISP connector for in-circuit programming VGA port to read and write LCD TV-MONITORS without disassembly. HDMI port to read and write LCD TV-MONITORS without disassembly.
Connection to PC: USB 2.0 (up to 480 Mbit/s, high speed/full speed) and 1.1 compatible interface The Only universal programmer Support ADD new flash by yourself without wait for factory.
2: NAND_AUTO, which can identify most chips, and then perform read and write operations.
3: EMMC_AUTO_ISP, can identify most chips, and then perform read and write operations 4: Deep sleep function, when turned on, close the software and automatically turn off the power of the programmer.
5: SELFTEST, the self-test test can detect whether the programmer is faulty. When most types of chips are read and written offline, they support the functions of intelligent identification and random placement High-speed USB interface, WHQL certified USB driver, read and write speed up to 25MB/S All-wheel drive architecture, free software upgrades, universal adapters as much as possible, reducing usage costs for users The Only universal programmer which can automatically detect chip number for all Chips. The only universal programmer which can put ic in any position and make intelligent sense. The Only universal programmer Support Read and program Laptop I/O via keyboard line. The Only universal programmer Support Read and Program LCD TV VIA VGA and HDMI PORT. Support UPTO 64GB
NAND FLASH Short description: 48-pins powerful pindrivers, no adapter required for any DIL devices ISP connector for in-circuit programming VGA port to read and write LCD TV-MONITORS without disassembly. HDMI port to read and write LCD TV-MONITORS without disassembly.
Connection to PC: USB 2.0 (up to 480 Mbit/s, high speed/full speed) and 1.1 compatible interface The Only universal programmer Support ADD new flash by yourself without wait for factory.
