SVPRO 1080P USB Camera for Computer & Raspberry Pi - 30/60/100fps High Speed Board Camera - 2.8mm Lens - Industrial Video - OV2710 CMOS UVC Plug & Play

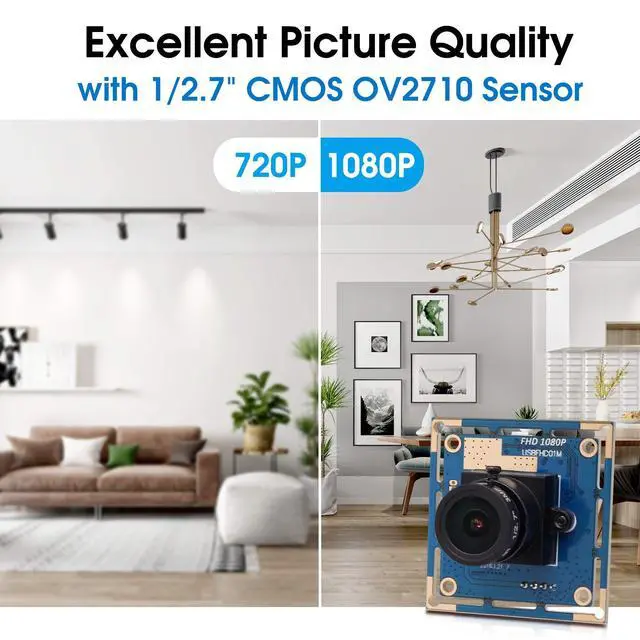

- HD 1080P Camera1080P Full HD USB Camera with 1/2.7" CMOS OV2710 image sensor, a great camera module with high pixel technology for sharp image and accurate color reproduction.

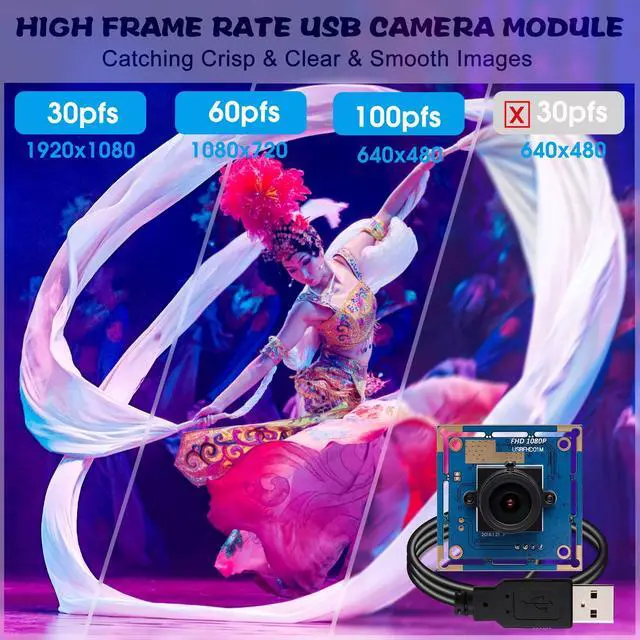

- High Frame Rate2 Megapixel HD USB camera has a high frame rate, captures your clips in ture 1080P glory and 30 frames per second, and 720P at 60fps, 480P at 100pfs, this usb video camera delivery decent and smooth image quality while catching moving objects.
- 2.8mm Lens Wide angle of view 113 degree

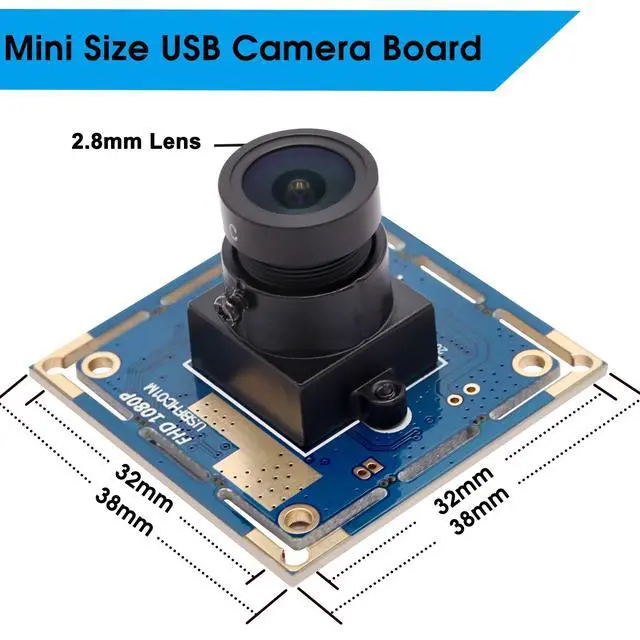

- Wide ApplicationsThis 1080P USB Camera Board has a small size only 38x38mm(can cut to 32x32mm), the open structure of this usb camera board is good for embedded project, widely use for picture and recording,machine vision and industrial use,diy project

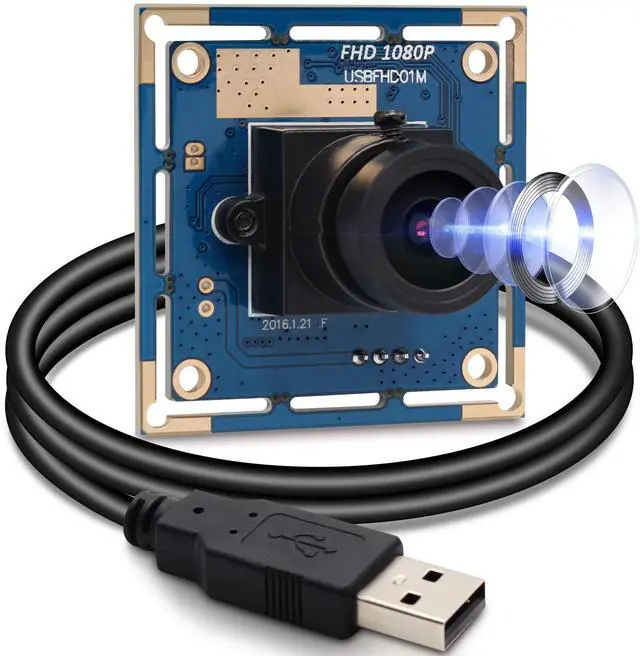

- Plug & Play, UVC 2 Megapixel USB camera designed with standard UVC protocal USB connector, occupy less bandwidth, great improved the working efficiency. Easy to use this camera module just play and plug no driver needed.
- Supported Systems Compatible with W
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The HD 1080P USB CMOS board camera module is ideal for many applications like security systems, portable video system, video calls, industrial machine monitoring and toys. It use high quality image sensors made by OmniVision, one of the world leaders in this field of electronics. The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.
Parameters: Optional models
ELP-USBFHD01M-L28( 2.8 mm lens)Sensor: 1/3"
CMOS OV2710Lens size: 200W, 2.0 megapixel, 1920 (H) x1080 (V) pixelsMax.
Resolution: 1920X1080Picture
format: MJPEGUSB
Protocal: USB 2.0 HS/FS, USB 1.1
FSSupport free driver: USB Video Class (UVC) 1.1A uto exposure
AEC: SupportAuto white blance
AEB: SupportFrame
rate: MJPEG 30 fps @ 1920 (H) x1080 (V) MJPEG 60 fps @ 1280 (H) x 720 (V)

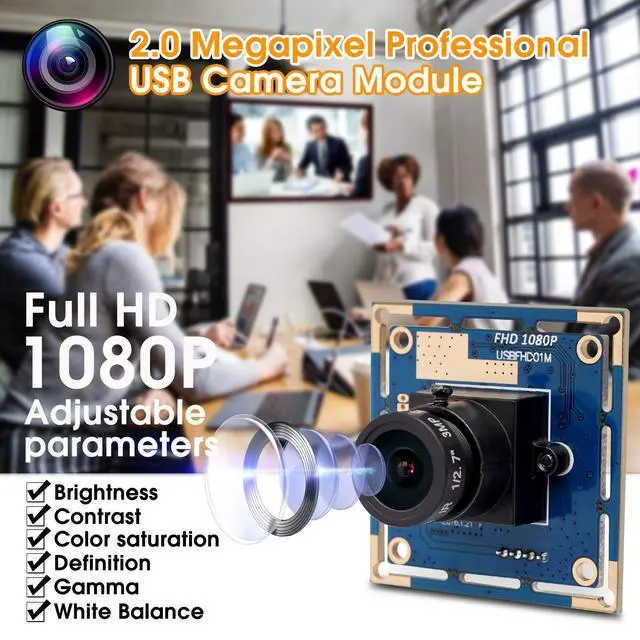

Adjustable parameters: Brightness/Contrast/Color
saturation /Definition/Gamma/WBNight vision: optional, can choose IR boardView angle 30-150 degree optionalVoltage: DC
5VCurrent: 150mAWork
temperature: DEGREES(-20~70)
Parameters: Optional models
ELP-USBFHD01M-L28( 2.8 mm lens)Sensor: 1/3"
CMOS OV2710Lens size: 200W, 2.0 megapixel, 1920 (H) x1080 (V) pixelsMax.
Resolution: 1920X1080Picture
format: MJPEGUSB
Protocal: USB 2.0 HS/FS, USB 1.1
FSSupport free driver: USB Video Class (UVC) 1.1A uto exposure
AEC: SupportAuto white blance
AEB: SupportFrame
rate: MJPEG 30 fps @ 1920 (H) x1080 (V) MJPEG 60 fps @ 1280 (H) x 720 (V)
Adjustable parameters: Brightness/Contrast/Color
saturation /Definition/Gamma/WBNight vision: optional, can choose IR boardView angle 30-150 degree optionalVoltage: DC
5VCurrent: 150mAWork
temperature: DEGREES(-20~70)
