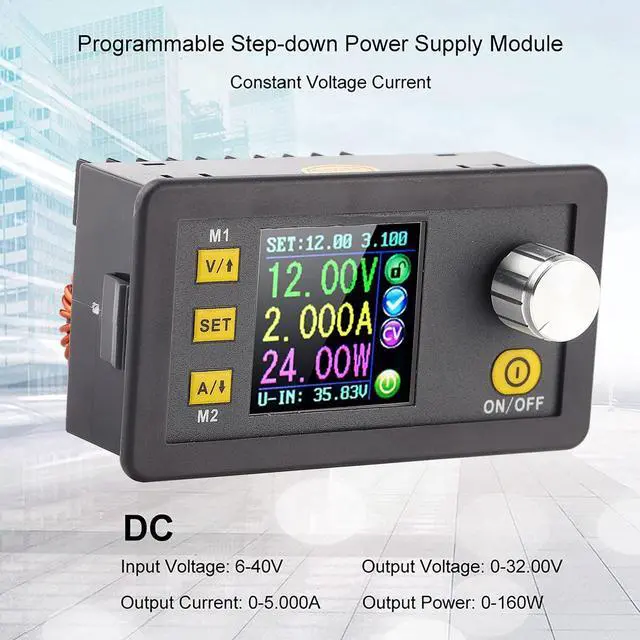

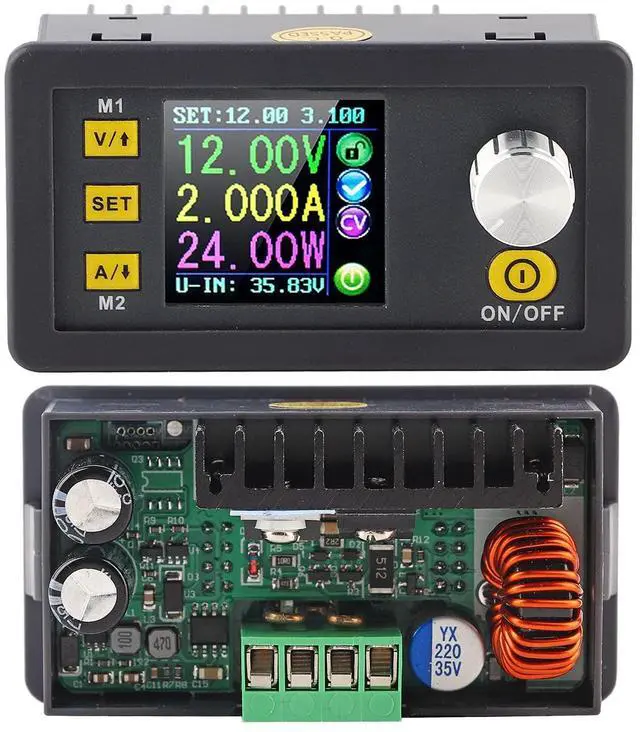

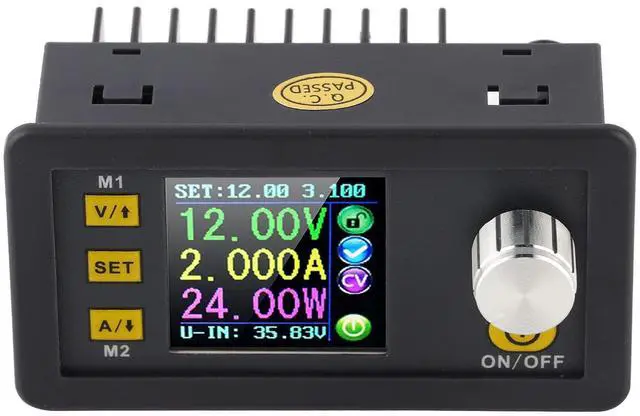

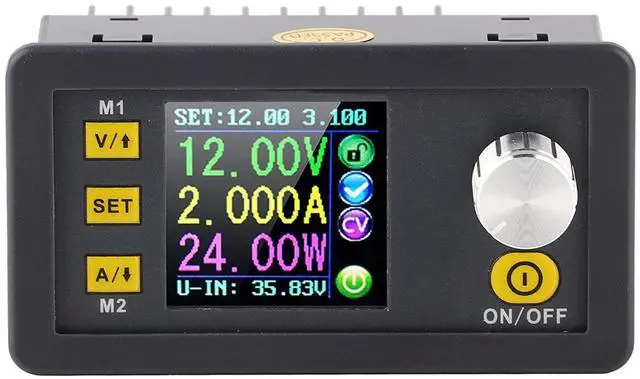

Digital Programmable Step Down Power Supply, DPS3005, LCD Screen, Constant Voltage and Current Regulator, DC Converter, 0-32V 0-5A 160W

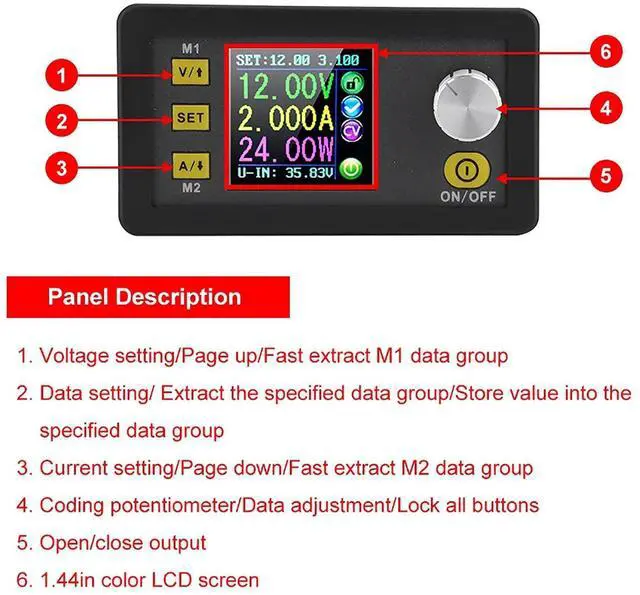

- Lock the button to avoid wrong On any interface, you can keep pressing coding potentiometer for 2 seconds, all buttons are locked. Keep pressing coding potentiometer for 2 seconds to unlock all buttons. You can see the key lock/unlock on
- The product is small in volume, advanced in function, good in effect, strong in maneuverability and high in accuracy.
- Open or close the output: You can press the ON/OFF button to open or close the output on any interface.
- M0M9 ten data groups: M0 group is the boot default data group. When you extract the data group you need, this data group will cover M0 data group and be automatically stored on M0 data group.
- You can quickly extract shortcut storage data group M1 or M2 and extract the specified data group.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Model (Optional) DPS3005DPS5005Input Voltage Range DC 6-40V DC 6-55VOutput Voltage Range 0- 32.00V 0- 50.00VO utput Current Range 0- 5.000AO utput Power Range 0-160W 0-250WOutput Voltage Resolution 0.01VO utput Voltage Accuracy ( 0.5 % +1)Output Current Resolution 0.001AO utput Current Accuracy ( 0.5 % +2)Function Reverse connection Output short circuitDimension Approx. 8* 4.5 * 4.5 cm / 3.15 * 1.77 * 1.77 inWeight (Approx. ) 115g/ 4.0 oz 118/ 4.1 ozPackagelist: 1 * Step-downPower
Supply ModuleNote: 1. You mustmake sure that the input voltage is 1.1 times higher than output voltage. 2. Though this module has reverse connection and output short circuit, you must be in strict accordance with connection description to connect. If you connect the supply power with output, the module will be burnt. 3. Under large current circumstances, pay attention to enhancing heat dissipation. 4. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Supply ModuleNote: 1. You mustmake sure that the input voltage is 1.1 times higher than output voltage. 2. Though this module has reverse connection and output short circuit, you must be in strict accordance with connection description to connect. If you connect the supply power with output, the module will be burnt. 3. Under large current circumstances, pay attention to enhancing heat dissipation. 4. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
