CM5 to Pi 5 Adapter Board, Alternative Solution for Raspberry Pi 5, Onboard Audio Header, Supports Connecting to Microphone, Rich Interfaces (CM5 not Include)

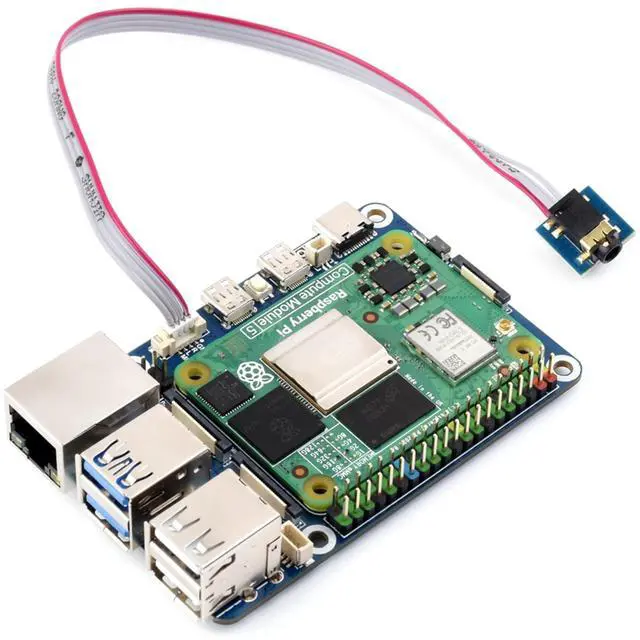

As the IO board of the Compute Module 5, CM5-to-Pi5-Adapter is a baseboard that can be used with all variants of Compute Module 5. With powerful features are integrated into a compact design, it is only the size of a bank card. It comes with two USB 3.2 Gen1 ports and two USB 2.0 ports onboard, making it convenient for users. ^^ Alternative Solution for
RPi 5: Based on Compute Module 5, Using CM5 to reproduce the original appearance of the Pi 5 as much as possible. Compatible with Raspberry Pi 5. ^^ Onboard USB

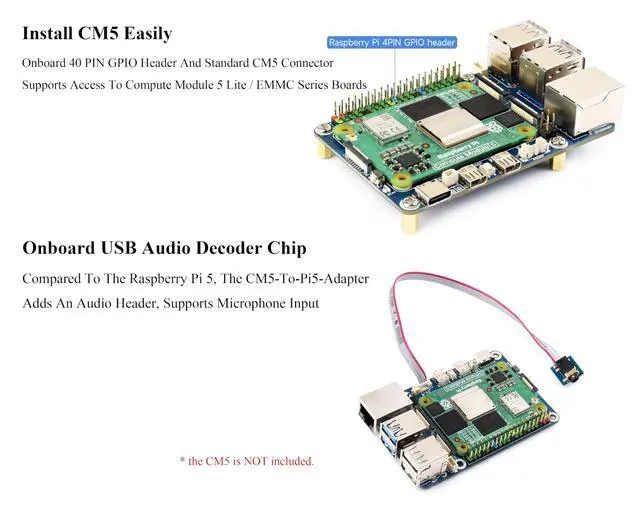

Audio Decoder Chip: Compared to the RPi 5, the CM5-to-Pi5-Adapter adds an audio header, supports microphone input. ^^ Type C can be used as a USB SLAVE interface to flash images. Onboard default 2 USB 3.2 Gen1 port. Supports 4 screens to display different contents, adds MIPI DSI driver, regardless of whether a screen is connected, the system will default to connect, the screen will display in split-screen mode (related to the system version). ^^ Do not connect other devices when using Type C for flashing. Insufficient power supply will cause the device to be unrecognized. The USB 2.0 ports have a total maximum power output of 2A, and the USB 3.0 ports have a total maximum power output of 2A. ^^ Comes with Online Tutorial Usage Guide and Online Development Resource, Please
check: n9. cl/15b76
