$45.99
Meet Your Seller

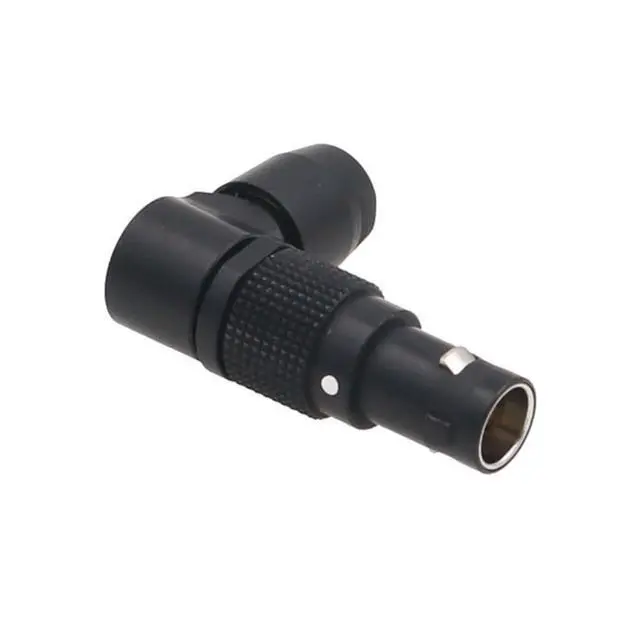

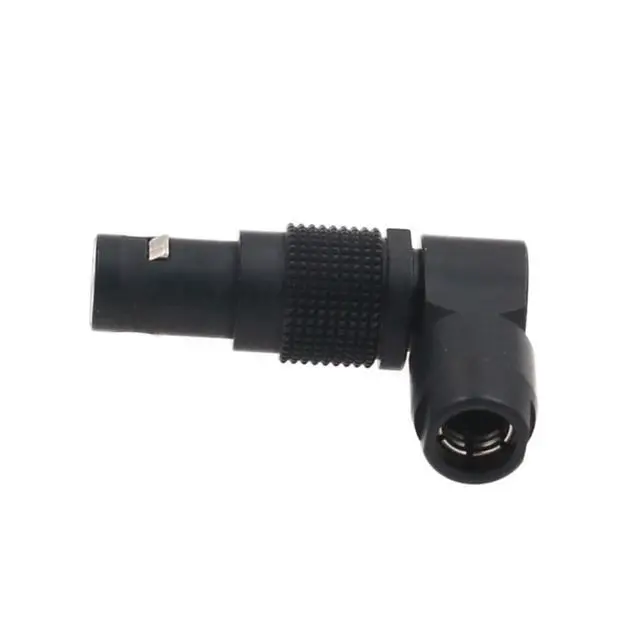

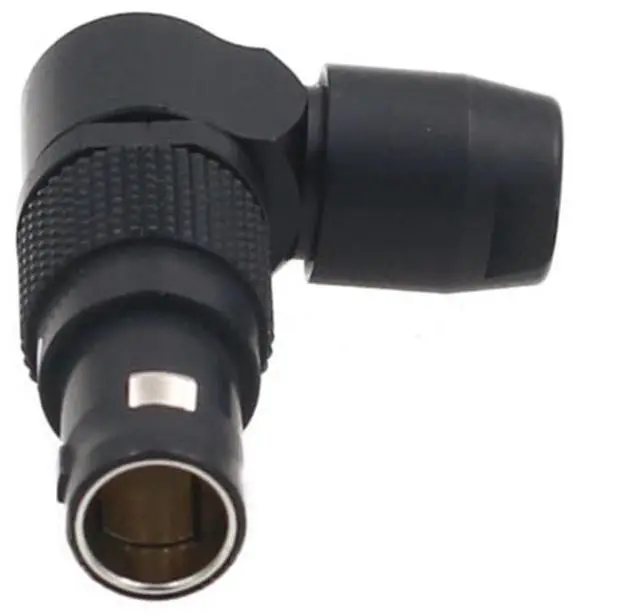

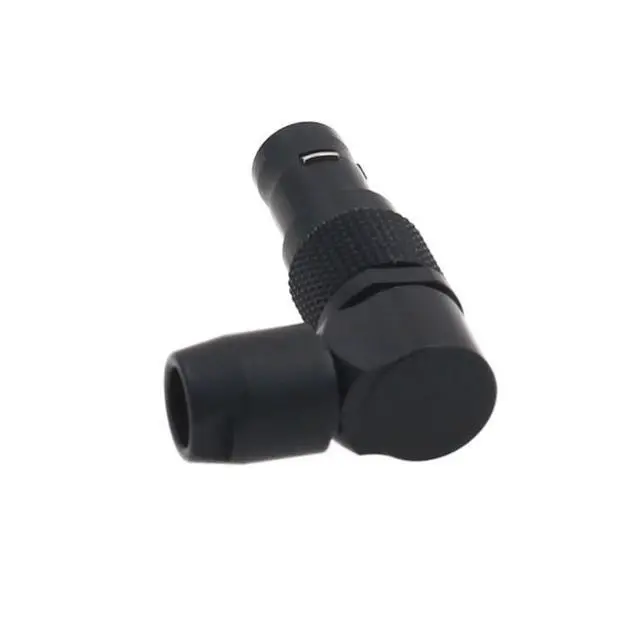

HangTon Black 0B FSG 2 Pin 90-Degree Connector Rotated Adjustable Right Angle Male Cable Plug Circular Push Pull Compatible for Lemo
- Black 2 pin male connector, compatible for Lemo 0B.FSG.302, right angle and adjustable. It allows to adjust the connector position in an efficient way in order to prevent cable snagging. Orientat it during its assembly and 8 positions available
- Rated current: 10 Amps. AWG wire size: 28 - 20, cable diameter: 2.5mm-5mm
- Contact diameter: 0.9 mm (0.035in), max. stranded conductor section: 0.56 mm^2 (AWG 20)
- Circular, push-pull self-latching, cable mounting, solder termination, IP50 rating
- Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

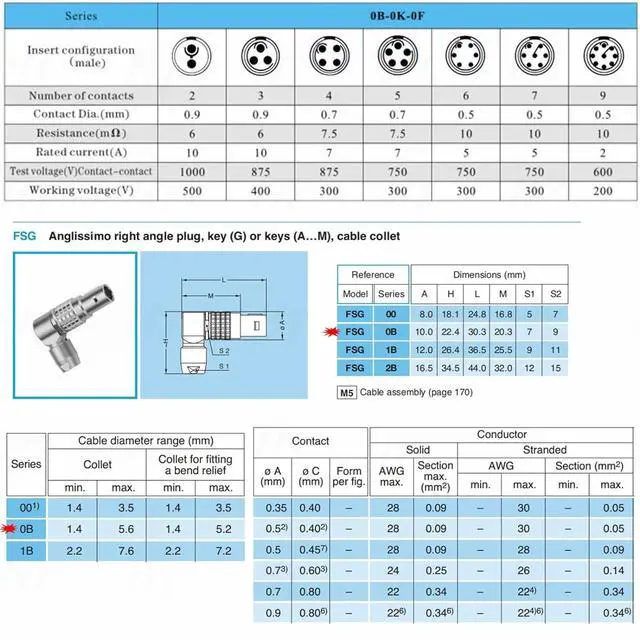

Compatible for LEMO 0B FGG EGG FSG FHG PHG connectors.
Contacts: 2 3 4 5 6 7 9Wire diameter max:
2-3pin: 20AWG
; 4-5pin: 22AWG
; 6-9pin: 28AWG
Cable Outer Diameter Range: 2mm-5mmProtection
Rating: IP50Shell
Material: Brass chrome platedContact
Material: Brass
gold platedTermination: SolderMating
Cycle: >4000 timesTemperature
Range: -45~+125We also supply all kinds of circular connectors( plug, panel mount socket, free socket, male or female contact, straight or right angle style, black / blue / golden / white anodized).
Contacts: 2 3 4 5 6 7 9Wire diameter max:
2-3pin: 20AWG
; 4-5pin: 22AWG
; 6-9pin: 28AWG
Cable Outer Diameter Range: 2mm-5mmProtection
Rating: IP50Shell
Material: Brass chrome platedContact
Material: Brass
gold platedTermination: SolderMating
Cycle: >4000 timesTemperature
Range: -45~+125We also supply all kinds of circular connectors( plug, panel mount socket, free socket, male or female contact, straight or right angle style, black / blue / golden / white anodized).
