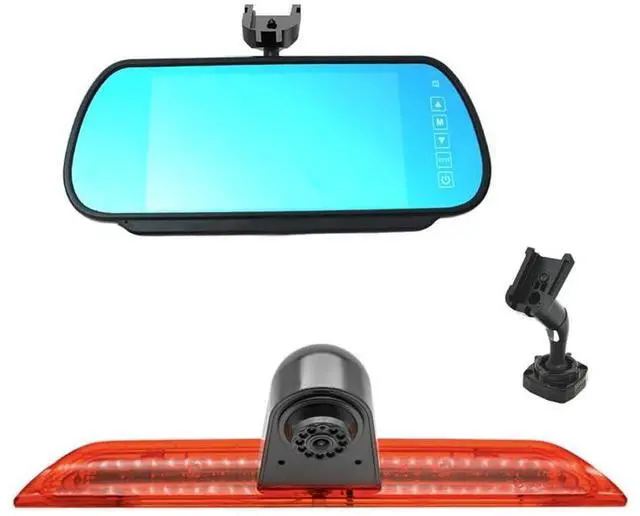

Compatible for Ford Transit 2020-Current/Ford Transit Connect 350XLT 2019 Brake Light Camera with 7Inch Monitor
- Thrid brake light backup camera and review monitor for Transit 2019-current ,Not to be confused with Transit Connect or Transit bus.
- 7 inch HD Monitor with 2 channels and the rearview image appears onto the screen automatically when you are parking car.Clip on your exist rear mirror
- Brake Light Camera Interface The Interface (Video Out) is 4PIN connector but it also connect RCA cable. which suitable for many car Interface monitor.
- Night vision&Waterproof 6 IR LEDs with light sensor for night mode which you can see clear in the darkIP68 grade ensure long life time and stable work for years.
- Install without HOLESeasy installation with no holes to be drilled; constructed of high grade automotive plastic
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

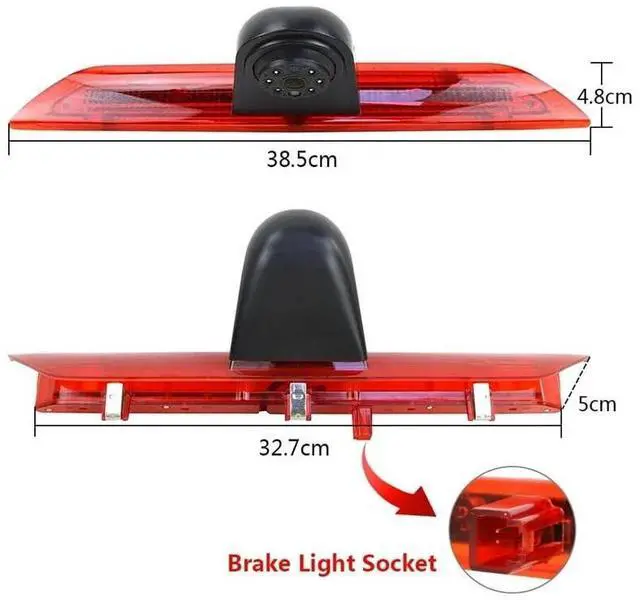

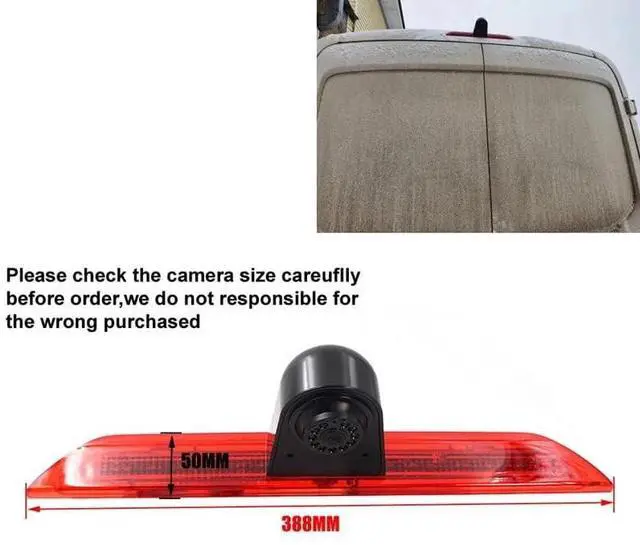

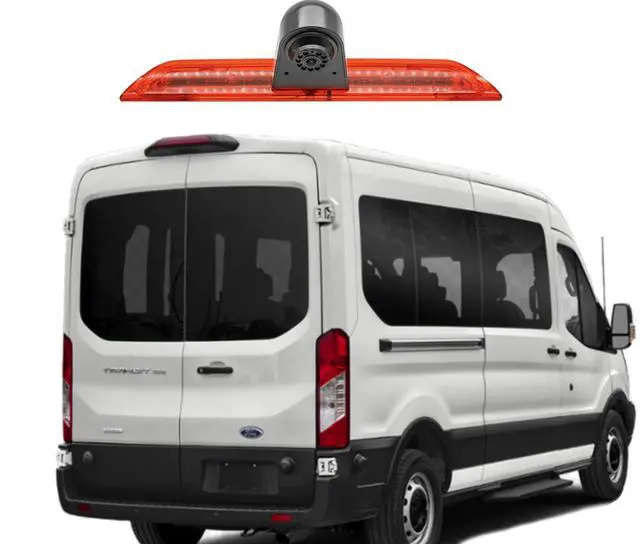

Backup camera is designed to completely replace the vans third brake light. When installed, this backup camera looks factory-fitted, as though it came with the van originally.
Application: Ford Transit 2019-CurrentFord Transit 350 Passenger VAn XLT
Camera Specification: Image
sensor: 1/3 Color CMOS
Resolution: 756 (H) X 504 (V)
TV line: 600TV linesTV
System: NTSC
Lens: 2.5
mmMin illumination: 0Lux (LED
ON) Viewing angle: 170Operation Temp.: -20~+70White
Balance: Auto7inch Clip-on
Monitor Specification: Monitor
size: 7 inch (800 X 480)
Contrast: 16:9
TV System: PAL/NTSC
Video input:
AV1/AV2Power:
DC12V-24VBrightness: 400
cd/Installation way: Clip on your exist rear mirror or stick monitor on windshield by Bracket. In The Box1 * Rear mirror monitor1* Backup Camera1*10M Extension Cable1*Power Cable1 * Manual1. How to wire it? It is very easy for wiring.

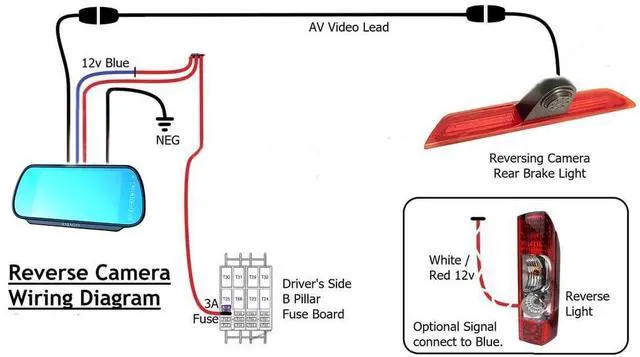

Backup camera wiring: The camera is 4PIN plug, please connect it directly to AV input wiring of monitor power cable.
Rear view monitor wiring: Red wire for power source, green wire for reverse, black for ground. 2. Is it ok if I want this rear view camera to always be on? Yes, if you want the camera to always be on, you can connect it to a constant 12V/24V power source such as accessory socket (cigarette lighter) that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights.
Application: Ford Transit 2019-CurrentFord Transit 350 Passenger VAn XLT
Camera Specification: Image
sensor: 1/3 Color CMOS
Resolution: 756 (H) X 504 (V)
TV line: 600TV linesTV
System: NTSC
Lens: 2.5
mmMin illumination: 0Lux (LED
ON) Viewing angle: 170Operation Temp.: -20~+70White
Balance: Auto7inch Clip-on
Monitor Specification: Monitor
size: 7 inch (800 X 480)
Contrast: 16:9
TV System: PAL/NTSC
Video input:
AV1/AV2Power:
DC12V-24VBrightness: 400
cd/Installation way: Clip on your exist rear mirror or stick monitor on windshield by Bracket. In The Box1 * Rear mirror monitor1* Backup Camera1*10M Extension Cable1*Power Cable1 * Manual1. How to wire it? It is very easy for wiring.
Backup camera wiring: The camera is 4PIN plug, please connect it directly to AV input wiring of monitor power cable.
Rear view monitor wiring: Red wire for power source, green wire for reverse, black for ground. 2. Is it ok if I want this rear view camera to always be on? Yes, if you want the camera to always be on, you can connect it to a constant 12V/24V power source such as accessory socket (cigarette lighter) that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights.
