at 100M Pro Tuner Power Standing Wavemeter 1.8mhz to 30mhz for Any Radio Station and with 3300mAh Lithium Battery OLED Display Portable
- Wide Application: This tuner and power standing meter has a wide range of applications, and supports any radio station and , no professional data cable is needed.
- 2 Adjustment Modes: This tuner standing meter has two adjustment modes, it supports both manual tuning and auto tuning modes.

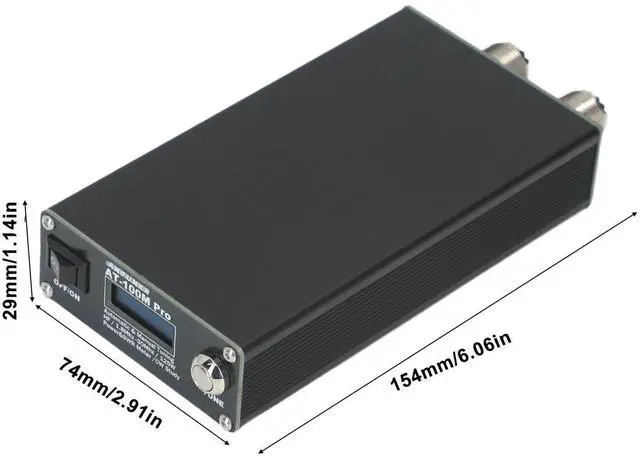

- Compact And Portable: This tuner and SWR power meter measures only 154mm x 74mm x 29mm, which is small in size and light in weight, very convenient to carry and use.

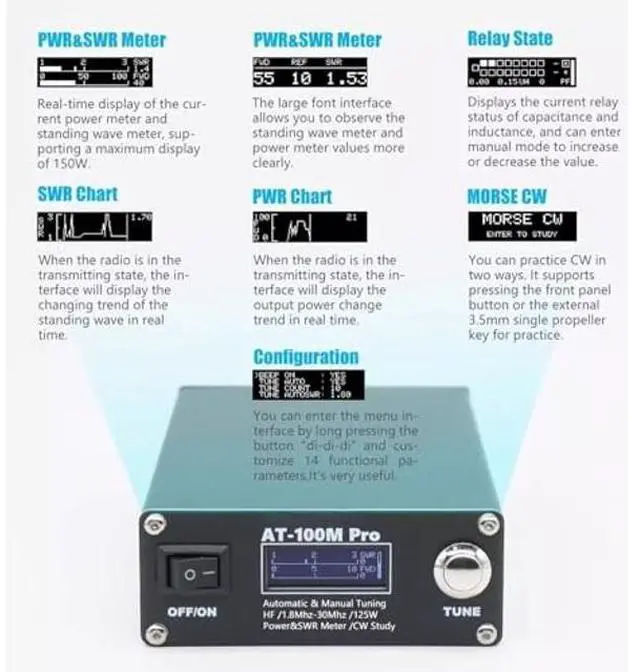

- 6 Status Interfaces Supported: This tuner and standing wavemeter supports 6 status interfaces, including user storage interface, bar power standing meter interface, large font interface, standing curve interface, interface, relay and battery voltage status interface.
- Large Capacity 3300mAh Lithium Battery: This tuner and power SWR meter has a built in large capacity 3300mAh lithium battery, untuned standby up to 150 to 200 hours, average standby time after tuning is about 15 hours, for outdoor portable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Spec: Item
Type: Tuner
Power Standing WavemeterMaterial: Aluminum
AlloyModel: AT 100M
ProSupported Radio: Any
RadioSupport:
AnyFrequency: 1.8 -30MhzPower
Range: 1-18Mhz, SSB, CW 0.1W -100W, Maximum 150W18-30Mhz, SSB, CW 0.1W -50W1-30Mhz, FM, AM, FT8
0.1W -50WCapacitance: Maximum
3869pFInductance: 17.21 uH
MaximumCW Key: 3.5 mm
JackCharging: Type C USB 5V 1A ( Support Overcharge and Overdischarge Protective )
Battery: Rechargeable Lithium Battery 3300mAh x 1 ( Shipped With Built In Battery )
Shutdown Current: Approx.
15uAStandby Current: Approx. 13mA, Approx. 150-200 Hours Standby ( No Tuning Status )
Tuning Standby: Starting 1-3 relays requires a current of 130-330mA, about 10-25 hours of standby.
Charging Time: Fully charged for about 4 hours. LEDs are red when charging and green when fully charged.

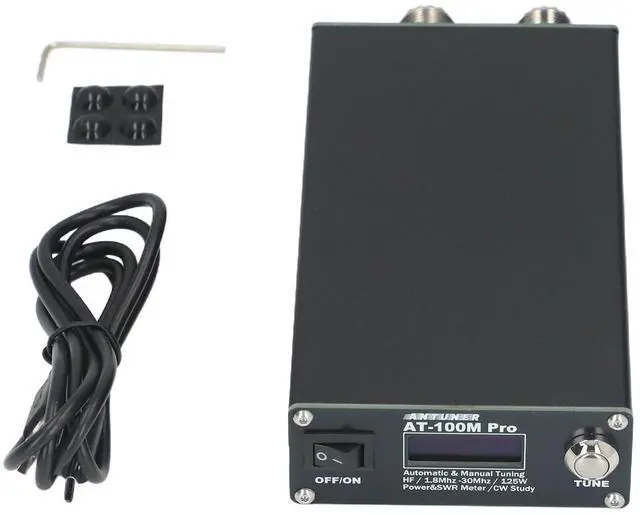

Package List: 1 x Tuner Power Standing Wavemeter1 x L Wrench1 x USB Cable1 x Foot Pad1 x
ManualNote: 1. Please calibrate the VSWP value of the device when you use it for the first time or change the radio, please refer to the instruction manual for details. 2. This power standing wavemeter can withstand different power at different frequencies or in different modes, please refer to the instruction manual for details. 3. The number of relays operating at different tuning levels will affect battery life.
Type: Tuner
Power Standing WavemeterMaterial: Aluminum
AlloyModel: AT 100M
ProSupported Radio: Any
RadioSupport:
AnyFrequency: 1.8 -30MhzPower
Range: 1-18Mhz, SSB, CW 0.1W -100W, Maximum 150W18-30Mhz, SSB, CW 0.1W -50W1-30Mhz, FM, AM, FT8
0.1W -50WCapacitance: Maximum
3869pFInductance: 17.21 uH
MaximumCW Key: 3.5 mm
JackCharging: Type C USB 5V 1A ( Support Overcharge and Overdischarge Protective )
Battery: Rechargeable Lithium Battery 3300mAh x 1 ( Shipped With Built In Battery )
Shutdown Current: Approx.
15uAStandby Current: Approx. 13mA, Approx. 150-200 Hours Standby ( No Tuning Status )
Tuning Standby: Starting 1-3 relays requires a current of 130-330mA, about 10-25 hours of standby.
Charging Time: Fully charged for about 4 hours. LEDs are red when charging and green when fully charged.
Package List: 1 x Tuner Power Standing Wavemeter1 x L Wrench1 x USB Cable1 x Foot Pad1 x
ManualNote: 1. Please calibrate the VSWP value of the device when you use it for the first time or change the radio, please refer to the instruction manual for details. 2. This power standing wavemeter can withstand different power at different frequencies or in different modes, please refer to the instruction manual for details. 3. The number of relays operating at different tuning levels will affect battery life.
