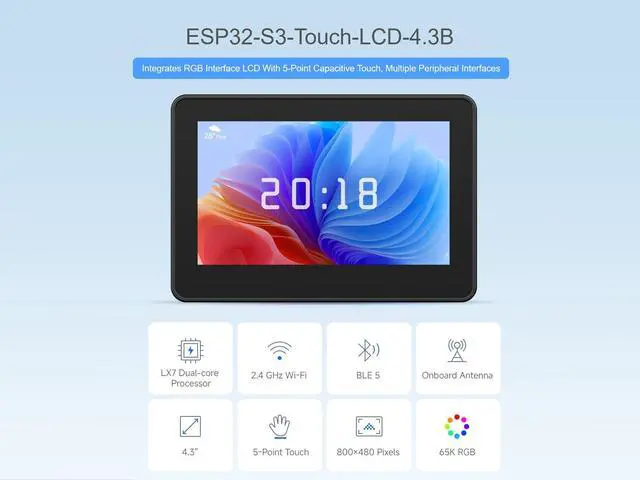

ESP32-S3 4.3inch Touch LCD Display Development Board, 800480 Pixels 65K RGB 5-Point Touch Screen, Onboard CAN, RS485, I2C, Digital Isolated IO Interfaces, etc. Supports 2.4GHz WiFi and BLE 5

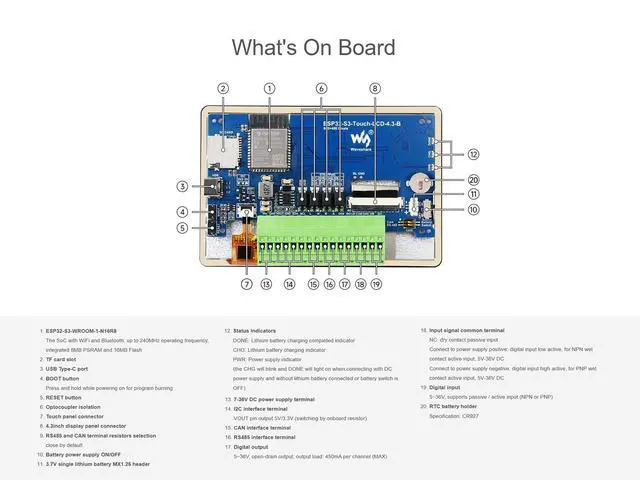

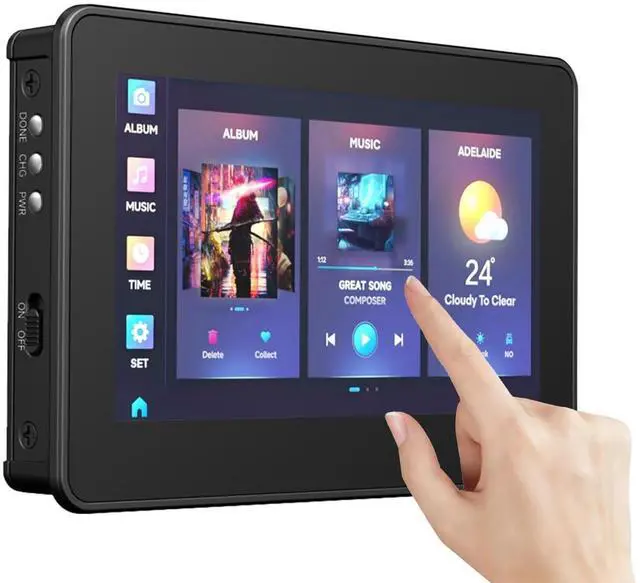

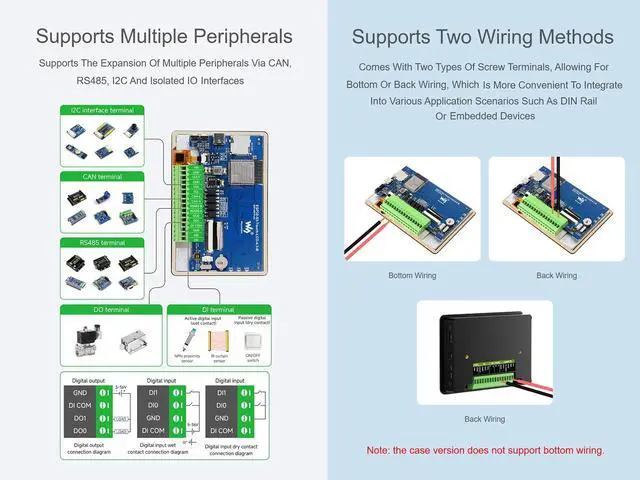

ESP32-S3-Touch-LCD- 4.3B development board equipped with 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GH z Wi-Fi and Bluetooth 5, with onboard antenna. Built in 512KB Static RAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM ^^ Onboard 4.3 inch capacitive touch display can smoothly run GUI programs such as LVGL, 800480 resolution, 65K color, IPS display panel, 160 wide viewing angle. Supports capacitive touch control via I2C interface, 5-point touch with interrupt support ^^ Onboard CAN, RS485, I2C interface, TF card slot, MX 1.25 2P battery header, and digital isolated IO interfaces, etc.

Supports passive and active digital input, with bi-directional optocoupler isolation. Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current ^^ Onboard voltage regulator, supports 7~36V wide range power supply. Onboard RTC chip and battery holder to ensure time data is not lost during power loss when battery is installed. Onboard LED indicators for indicating the power and battery recharging status ^^ Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios
