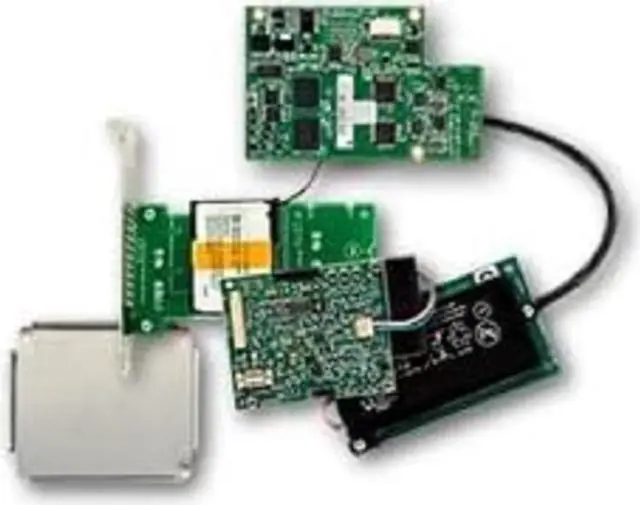

LSI Logic 05-50039-00 Accessory CacheVault Accessory for 9460 9480 Series

Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection, flexibility and performance todays applications and end users demand. The MegaRAID 9460-16i Tri-Mode Storage Adapter is a 12Gb / s SAS / SATA / PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of high-end server storage applications.

Broadcoms Tri-Mode SerDes Technology enables the operation of NVMe, SAS or SATA devices in a single drive bay, allowing for endless design flexibility.

Connect up to 255 SAS / SATA devices or 24* NVMe devices per controller
Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
Support critical, high-bandwidth applications with PCIe 3.1 connectivity
Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
Add more protection and peace of mind with CacheVault flash cache protection Lifecycle C
Active Distrib. Inventory C
No Cache Protection C
CacheVault CVPM05 Host Bus TypeC
x8 lane PCI Express 3.1 Cache Memory C
4GB 2133 MHz DDR4 SDRAM Internal Ports C
16 Data Transfer Rates C
12 Gb / s SAS-3 and 8 GT / s PCIe Gen 3 (NVMe) Compliant Devices Supported C
SAS / SATA: 255, NVMe: 4 x4, up to 24 x2 or x4 Internal Connectors C
4 Mini-SAS HD x4 SFF-8643 Operating TemperatureC
10 o to 55 o C Operating Voltage (V) C
+12V + / -8%, 3.3V + / -9% OS C
Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support. See / support / down-load-serach for details on versions. Regulatory Certifications C
Australia / New Zealand (AS / NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022 / EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 25), RoHS compliant, Safety: EN / IEC...
