MEAN WELL EDR-120-24 Single Output DIN Rail Power Supply 24V 5 Amp 120W

Single output DIN rail power supply 24 Volts 5 Amps 120 Watts 24 Volts 5
Amps specifications output power (W): 120 ripple
& noise (mV p-p): 100
load regulation (): 1
percent line regulation (): 0.5
percent efficiency: 87.5 percent size (L x W x
H) inches: 4.5 x 1.6 x 4.9 universal AC input/full range built-in active

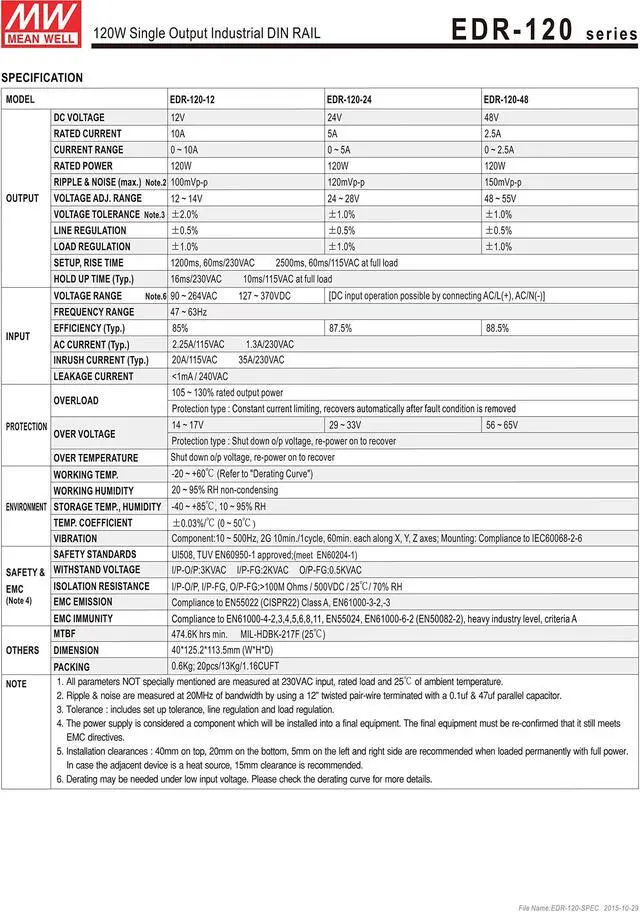

PFC function protections: short circuit, over voltage, overload, over temperature cooling by free air convection 100 percent full load burn-in Test 2 year warranty detailed specifications: primary
output voltage (VDC): 24
output current (a): 5
maximum output power (W): 120
family: edr-120
input voltage (VAC): 90
to 264 input frequency: 47 to 63 maximum input current (a): 2.25 output connector
Type: screw terminal efficiency ( percent ): 87.5
operating temperature-min (CEL): -20
operating temperature-max (CEL): 60
Length (inch): 1.57
width (inch): 4.93
height (inch): 4.47
agency approvals: UL/cul/TUV/CB/CE
color: silver
style: DIN.
