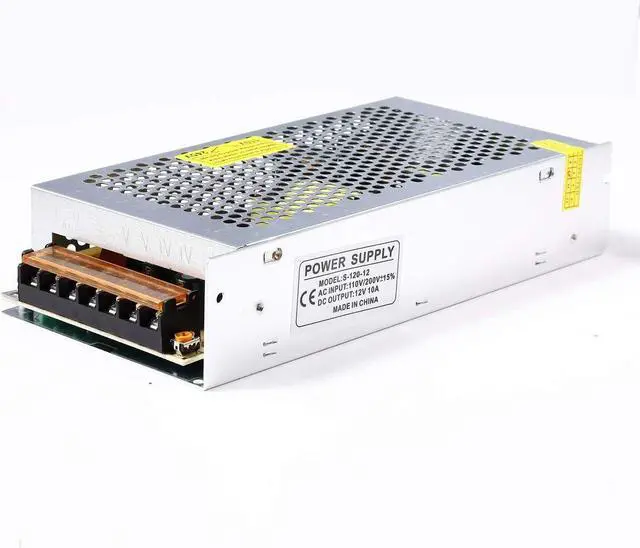

12V 10A DC Universal Regulated Switching Power Supply (SMPS) 120W AC 110V / 220V to DC 12V 10amp for CCTV, Radio, Computer Project, LED Strip Lights, 3D Printer
- [(Power Supply)] Input: 110V/220V AC; Output: DC 12V 10A max. Output voltage is adjustable 10%, Two sets of output Channel. Transformer Switch Convert AC to DC 12V 10A 120W.
- [(Safety features)] Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.Smart device surge protection for Short-circuit Protection, Over Temperature Protection.High efficiency, High Reliability, Low Temperature Rise,Built-in EMI filter, 100% Full load burn-in Tested. Parallel/Redundancy Operation is possible.
- [(Dual input voltage)] AC 110V/220V.Wide voltage input adjusted automatically to SMPS Model (12V 1A-5A, 12W-60W). As for Model (12V 10A-60A 120W-600W), there is a voltage selector switch located on the side of the switcher is used to set the input voltage to the power supply to either 110V/115V or 220V/230V.We have already adjusted the switcher to 110V/115V for our US customers, if you want to use AC220V,don't forget to adjust the switch to the 220V si
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This Switching Power Supply 12V 10A 120W is suitable for LED lighting, lamp strips, lamps, light box modules, light emitting words. Security surveillance cameras, instrumentation, 3D printers, etc. Be sure to confirm the input and output voltage first, Factory default output voltage 110V.
Technical Parameter

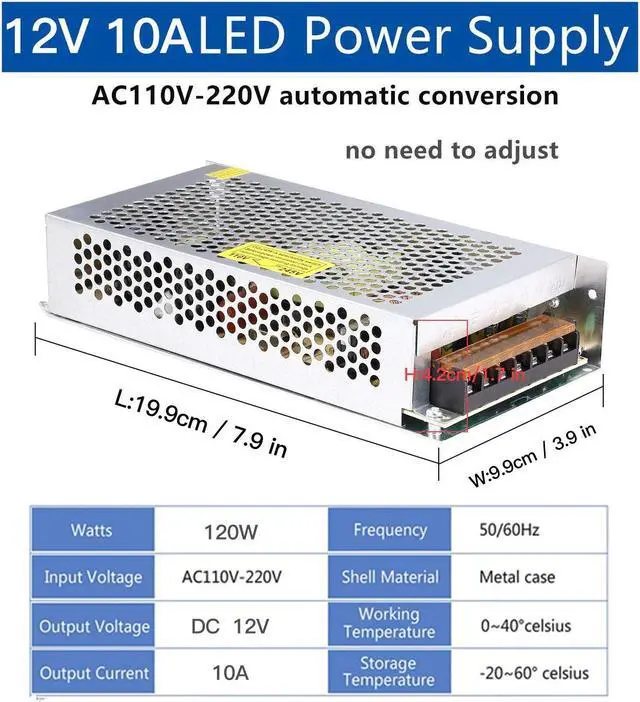

Input: AC110V/220V 50/60Hz
Output Voltage: DC 12V (Number+V x 2, -V x 2)
Output Current: 10A max
Output Wattage: 120W max
Fix Screw Hole Diameter: 2.5 mm ( 0.1 inch)
Working Storage temperature: -15 to 55degree Celsius
Environmental humidity: 10-95%
Material: Metal, Electronic Parts, Rugged heavy duty enclosure
Safety Compliance: CCC/FCC/CE/RoHS
Overload Voltage Protection
Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.
100% Full load burn-in Tested: Smart device surge protection for Short-circuit Protection, Over Temperature Protection. Low Temperature Rise, low output ripple, noise, Parallel/Redundancy Operation is possible.
Note:

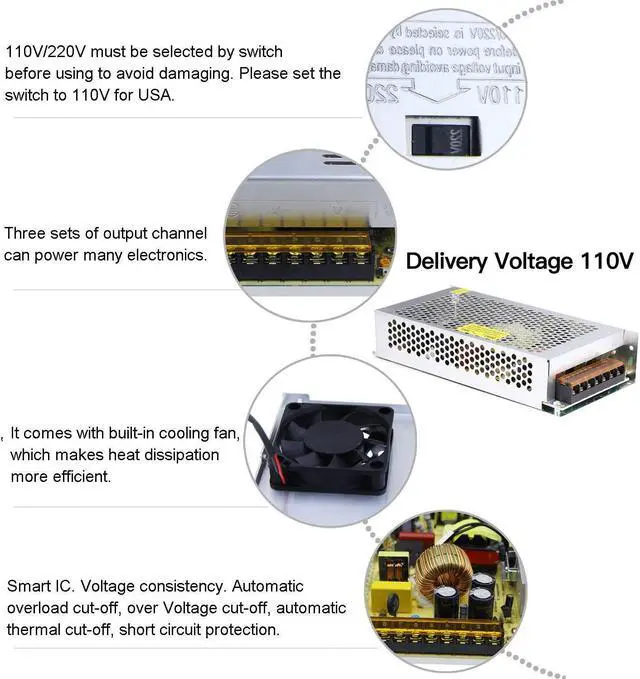

1.110V /220V must be selected by switch before using to avoid damaging. Please change the switch to 110V for USA.
2. The unit can work long hours at this current and good cooling environment. The actual output current depends on circuit loads.
3. Do not power the unit before wire connection and voltage adjustment, DO NOT let the unit work long hours over rated current! Work under 80% of rated currency.
4. Even with EMI/RFI filter built inside, still not suitable for a hamradio operator connecting with radio or wireless communication equipments.
5. High Voltage inside, do not remove the cover. Dust the switcher out every 2 or 3 months if necessary.
6. IN-DOOR USE ONLY! This Unit "DOES NOT" comes with installation instruction, wiring cable, on/off switch, or screws. Professional installation of qualified electrician is highly recommended.
Technical Parameter
Input: AC110V/220V 50/60Hz
Output Voltage: DC 12V (Number+V x 2, -V x 2)
Output Current: 10A max
Output Wattage: 120W max
Fix Screw Hole Diameter: 2.5 mm ( 0.1 inch)
Working Storage temperature: -15 to 55degree Celsius
Environmental humidity: 10-95%
Material: Metal, Electronic Parts, Rugged heavy duty enclosure
Safety Compliance: CCC/FCC/CE/RoHS
Overload Voltage Protection
Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.
100% Full load burn-in Tested: Smart device surge protection for Short-circuit Protection, Over Temperature Protection. Low Temperature Rise, low output ripple, noise, Parallel/Redundancy Operation is possible.
Note:
1.110V /220V must be selected by switch before using to avoid damaging. Please change the switch to 110V for USA.
2. The unit can work long hours at this current and good cooling environment. The actual output current depends on circuit loads.
3. Do not power the unit before wire connection and voltage adjustment, DO NOT let the unit work long hours over rated current! Work under 80% of rated currency.
4. Even with EMI/RFI filter built inside, still not suitable for a hamradio operator connecting with radio or wireless communication equipments.
5. High Voltage inside, do not remove the cover. Dust the switcher out every 2 or 3 months if necessary.
6. IN-DOOR USE ONLY! This Unit "DOES NOT" comes with installation instruction, wiring cable, on/off switch, or screws. Professional installation of qualified electrician is highly recommended.
