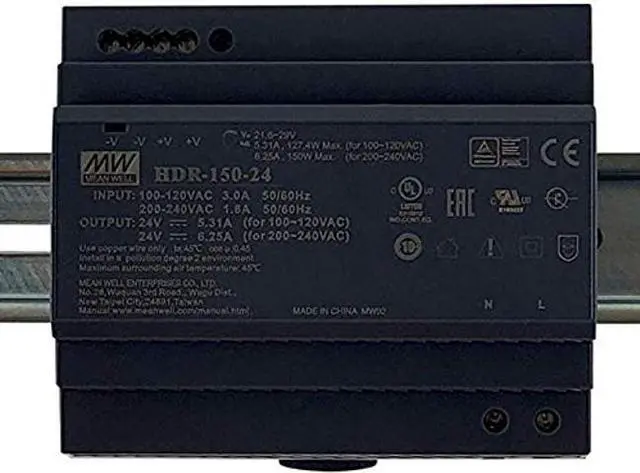

Meanwell HDR-150-24 Power Supply - 150W 24V 6.25A - Ultra Slim

Features:
Ultra slim design with 105mm (6SU) width
Universal input 85~264VAC (277VAC operational)
No load power consumption <0.3W
Isolation class
DC output voltage adjustable
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
DIN rail TS-35/ 7.5 or 15 mountable
Over voltage category
LED indicator for power on
3 years warranty

General Specification:
AC input voltage range: 85~264VAC (277VAC operational) 120~370VDC (390VDC operational)
AC inrush current (Typ. ): COLD START 35A/115VAC 70A/230VAC
Overload protection: 105~135% rated output power;
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over voltage protection:
12V: 14.2 ~ 16.2V, 15V: 18.8 ~ 22.5V, 24V: 30~36V, 48V: 56.5 ~ 64.8V
Protection type: Shut down o/p voltage, re-power on to recover
Setup,
rise,
hold up time: 500ms, 60ms/230VAC/115VAC at full load; 30ms/230VAC; 12ms/115VAC at full load
Withstand voltage: I/P-O/P: 4KVAC
Working temperature: -30~+70(Refer to "Derating Curve")
Safety standards: IEC62368-1, UL62368-1, UL61010, TUV EN61558-2-16, EAC TP TC 004 approved; Design refer to EN50178, TUV EN62368-1
EMC standards: EN55032 (CISPR32); EN61000-3-2, 3; EN61000-4-2, 3, 4, 5, 6, 8, 11
Dimension (WxHxD): 105×90× 54.5 mm
