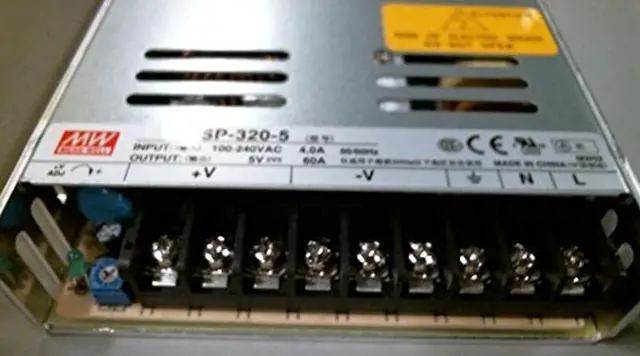

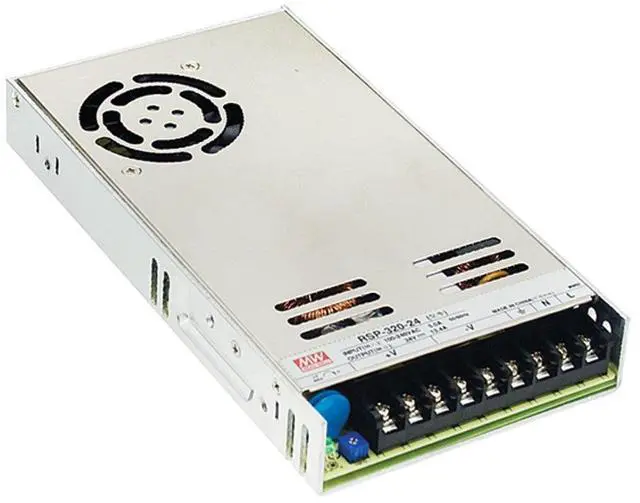

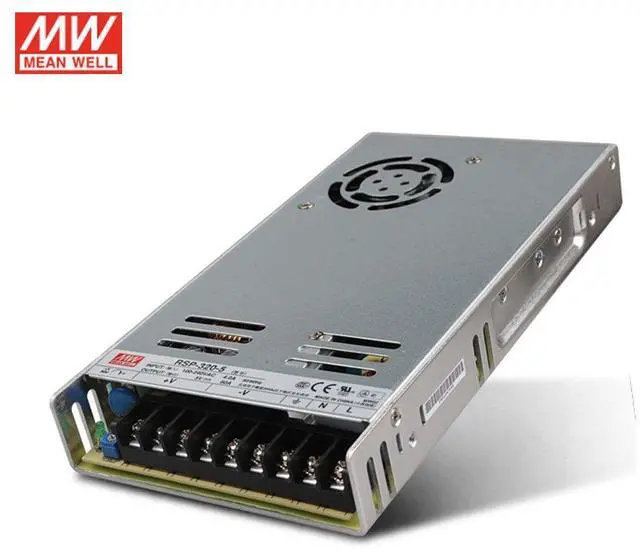

MEAN WELL RSP-320-5 AC-DC Switching Enclosed Power Supply PFC
- Primary output voltage (vdc): 5
- Output current (a): 60
- Maximum output power (w): 300
- Family: rsp-320
- Input voltage (vac): 88 to 264
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
300 watt single output enclosed power supply with PFC function 5 Volts 60 Amps features universal AC input/full range built-in active PFC function, pf> 0.95 high efficiency up to 85 percent protections: short circuit/overload/over voltage/over temperature forced air cooling by built-in DC fan with fan speed control function 3 years warranty 1U low profile 30mm LED indicator for power on agency approvals: UL, cULus, TUV, CB, CE
detailed specifications: primary
output voltage (VDC): 5
output current (a): 60
maximum output power (W): 300
family: rsp-320
input voltage (VAC): 88
to 264 input frequency: 47 to 63 maximum input current (a): 5 output connector
Type: screw terminal block number of outputs: 1 product
Type: AC to DC power supply efficiency ( percent ): 85
minimum isolation voltage: 3000V
operating temperature-min (CEL): -30
operating temperature-max (CEL): 70
Length (inch): 8.5
width (inch): 4.5
height (inch): 1.2
agency approvals: UL/cul/TUV/CB/CE
color: silver
Type: auto
switching style: enclosed.
detailed specifications: primary
output voltage (VDC): 5
output current (a): 60
maximum output power (W): 300
family: rsp-320
input voltage (VAC): 88
to 264 input frequency: 47 to 63 maximum input current (a): 5 output connector
Type: screw terminal block number of outputs: 1 product
Type: AC to DC power supply efficiency ( percent ): 85
minimum isolation voltage: 3000V
operating temperature-min (CEL): -30
operating temperature-max (CEL): 70
Length (inch): 8.5
width (inch): 4.5
height (inch): 1.2
agency approvals: UL/cul/TUV/CB/CE
color: silver
Type: auto
switching style: enclosed.
