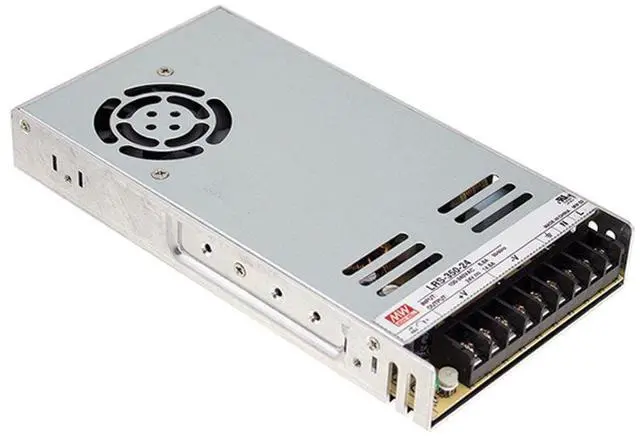

MEAN WELL LRS-350-24 350.4W 24V 14.6 Amp Single Output Switchable Power

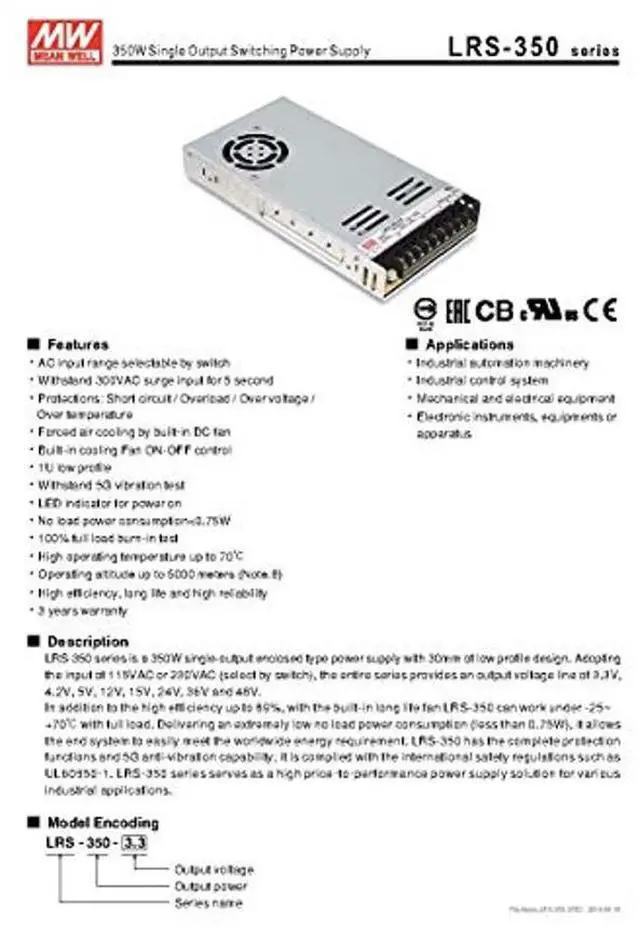

350.4W 24V 14.6A Single Output Switchable Power Supply 24 Volts 14.6 Amps Features AC input range selectable by a switch Withstand 300 VAC surge input for 5 seconds No load power consumption 1U low profile High operating temperature, up to 70°C
Protections: Short circuit / Overload / Over voltage / Over temperature Built-in cooling fan, ON-OFF control Compliance to UL 60950-1 Withstand 5G vibration test High efficiency, long life and high reliability LED indicator for power on 100% full load burn-in test 3 year warranty Applications Industrial automation machinery Industrial control system Mechanical and electrical equipment Electronic instruments, equipment or apparatus Related Products LRS-350- 3.3 ( 3.3V 60A, 198W)
Jameco P/N: 2219778 LRS-350- 4.2 ( 4.2V 60A, 252W)
Jameco P/N: 2219786 LRS-350-5 (5V 60A, 300W)
Jameco P/N: 2219794 LRS-350-12 (12V 29A, 348W)
Jameco P/N: 2219807 LRS-350-15 (15V 23.2A, 348W)
Jameco P/N: 2219815 LRS-350-36 (36V 9.7A, 349.2W )
Jameco P/N: 2219831 LRS-350-48 (48V 7.3A, 350.4W )
Jameco P/N: 2219840 LRS-150 Series (150 Watt, Enclosed Switchable Single Output Power Supply) LRS-150F Series (150 Watt, Full Range Input Enclosed Switching Power Supply) LRS-200 Series (200 Watt, Enclosed Switchable Single Output Power Supply) Detailed

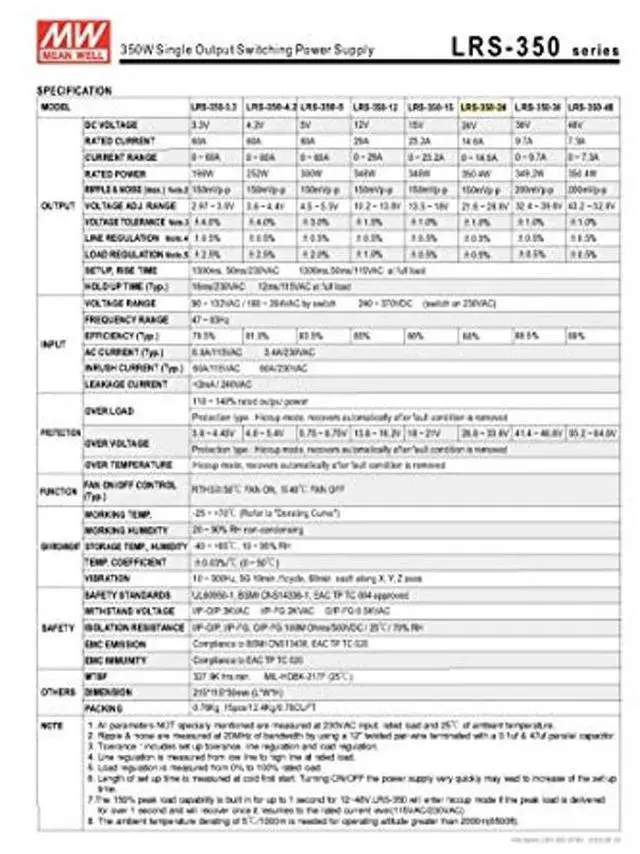

Specifications

: Primary
Output Voltage (VDC): 24
Output Current (A): 14.6 Maximum
Output Power (W): 350
Family: LRS-350
Input Voltage (VAC): 90 to 132, 180 to 264
Input Frequency: 47 to 63
Maximum Input Current (A): 6.8 Output
Connector Type: Screw Terminal Block Number of
Outputs: 1
Product Type: AC to DC Power Supply (more. ).
