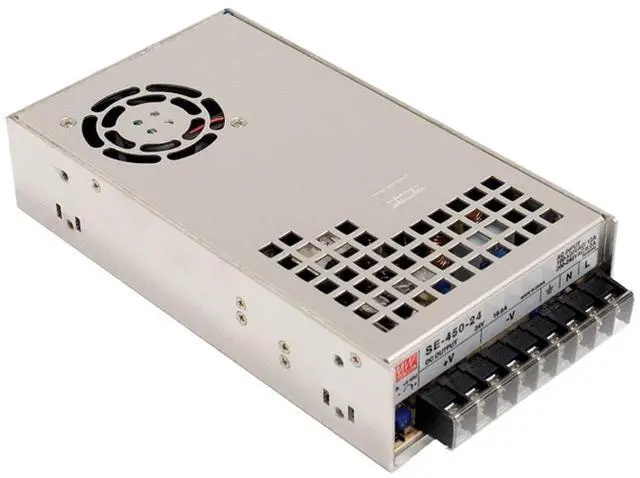

MEAN WELL SE-450-24 AC-DC Power Supply Single Output 24V 18.8 Amp 451.2W
- Primary output voltage (vdc): 24
- Output current (a): 18.8
- Maximum output power (w): 451.2
- Family: se-450
- Input voltage (vac): 90 to 264
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
451.2W AC/DC enclosed switching power supply 24Volts 18.8A mps specifications: size (L x W x
H) (inches): 8.9 x 4.9 x 2.0 ripple and noise (mV p-p): 200
load regulation: 0.5
percent line regulation: 0.2
percent input: 90-264vac 47-63hz universal
AC input protections: short circuit/overvoltage/over temperature/overload 2-year warranty certifications: UL
detailed specifications: primary
output voltage (VDC): 24
output current (a): 18.8
maximum output power (W): 451.2
family: se-450
input voltage (VAC): 90
to 264 input frequency: 47 to 63 maximum input current (a): 10 output connector
Type: screw terminal block number of outputs: 1 product
Type: AC to DC power supply efficiency ( percent ): 86
minimum isolation voltage: 3000V
operating temperature-min (CEL): -10
operating temperature-max (CEL): 60
Length (inch): 8.9
width (inch): 4.9
height (inch): 2
agency approvals: UL
color: silver
Type: switch
selectable style: enclosed.
H) (inches): 8.9 x 4.9 x 2.0 ripple and noise (mV p-p): 200
load regulation: 0.5
percent line regulation: 0.2
percent input: 90-264vac 47-63hz universal
AC input protections: short circuit/overvoltage/over temperature/overload 2-year warranty certifications: UL
detailed specifications: primary
output voltage (VDC): 24
output current (a): 18.8
maximum output power (W): 451.2
family: se-450
input voltage (VAC): 90
to 264 input frequency: 47 to 63 maximum input current (a): 10 output connector
Type: screw terminal block number of outputs: 1 product
Type: AC to DC power supply efficiency ( percent ): 86
minimum isolation voltage: 3000V
operating temperature-min (CEL): -10
operating temperature-max (CEL): 60
Length (inch): 8.9
width (inch): 4.9
height (inch): 2
agency approvals: UL
color: silver
Type: switch
selectable style: enclosed.
