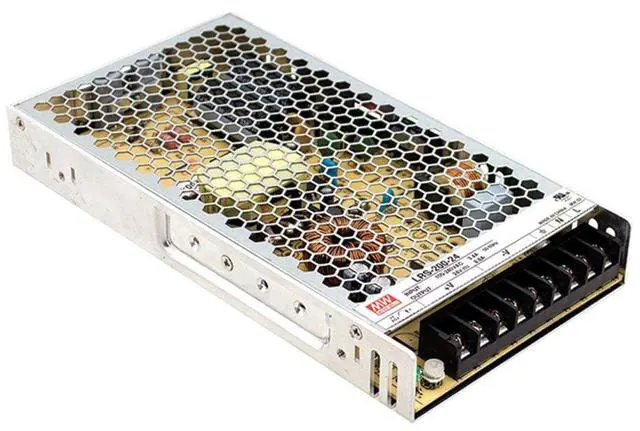

MEAN WELL LRS-200-24 211.2W 24V 8.8 Amp Single Output Switchable Power

211.2W 24V 8.8A Single Output Switchable Power Supply 24 Volts 8.8 Amps Features AC input range selectable by a switch Withstand 300 VAC surge input for 5 seconds No load power consumption 1U low profile High operating temperature, up to 70°C
Protections: Short circuit / Overload / Over voltage / Over temperature Cooling by free air convection Compliance to UL 60950-1 Withstand 5G vibration test High efficiency, long life and high reliability LED indicator for power on 100% full load burn-in test 3 year warranty Applications Industrial automation machinery Industrial control system Mechanical and electrical equipment Electronic instruments, equipment or apparatus Related Products LRS-200- 3.3 ( 3.3V 40A, 132W)
Jameco P/N: 2219698 LRS-200- 4.2 ( 4.2V 40A, 168W)
Jameco P/N: 2219701 LRS-200-5 (5V 40A, 200W)
Jameco P/N: 2219719 LRS-200-12 (12V 17A, 204W)
Jameco P/N: 2219727 LRS-200-15 (15V 14A, 210W)
Jameco P/N: 2219735 LRS-200-36 (36V 5.9A, 212W)
Jameco P/N: 2219751 LRS-200-48 (48V 4.4A, 211W)
Jameco P/N: 2219760 LRS-150 Series (150 Watt, Enclosed Switchable Single Output Power Supply) LRS-150F Series (150 Watt, Full Range Input Enclosed Switching Power Supply) LRS-350 Series (350 Watt, Enclosed Switchable Single Output Power Supply) Detailed

Specifications

: Primary
Output Voltage (VDC): 24
Output Current (A): 8.8 Maximum
Output Power (W): 200
Family: LRS-200
Input Voltage (VAC): 90 to 132, 180 to 264
Input Frequency: 47 to 63
Maximum Input Current (A): 4 Output
Connector Type: Screw Terminal Block Number of
Outputs: 1
Product Type: AC to DC
Power Supply Efficiency (%): 89.5 (more. ).
