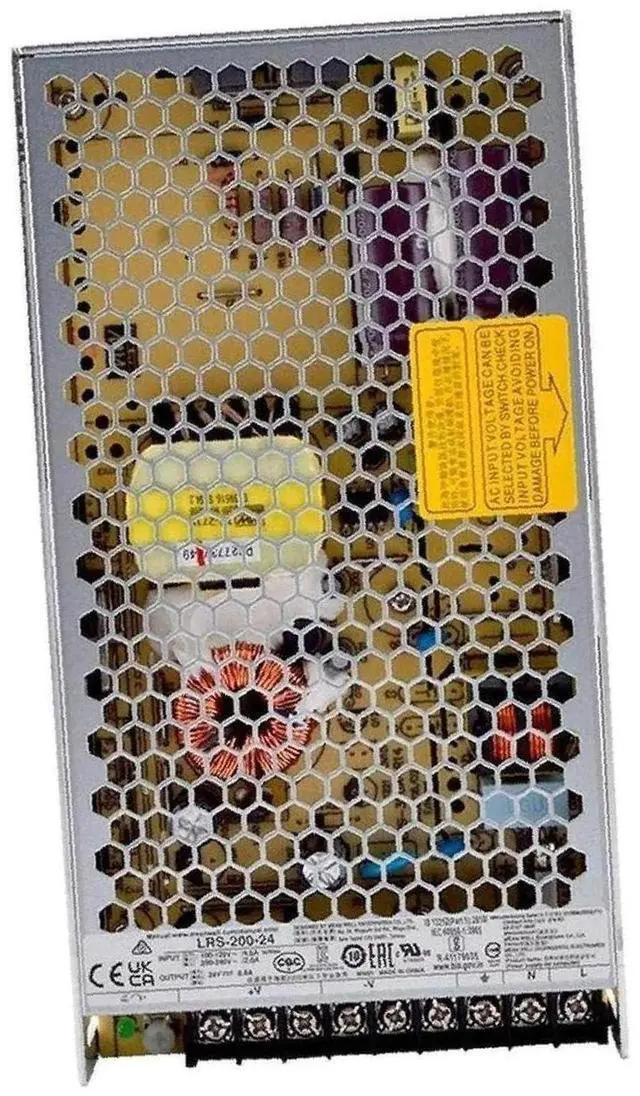

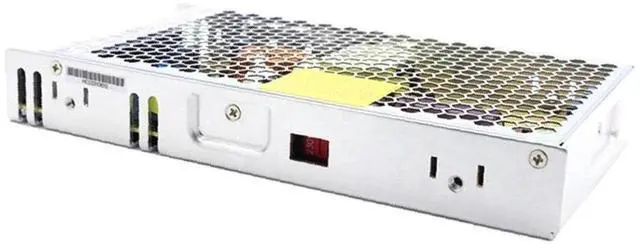

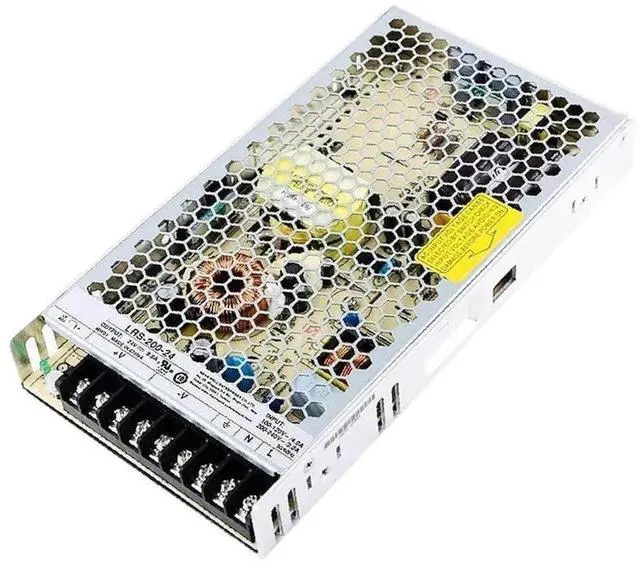

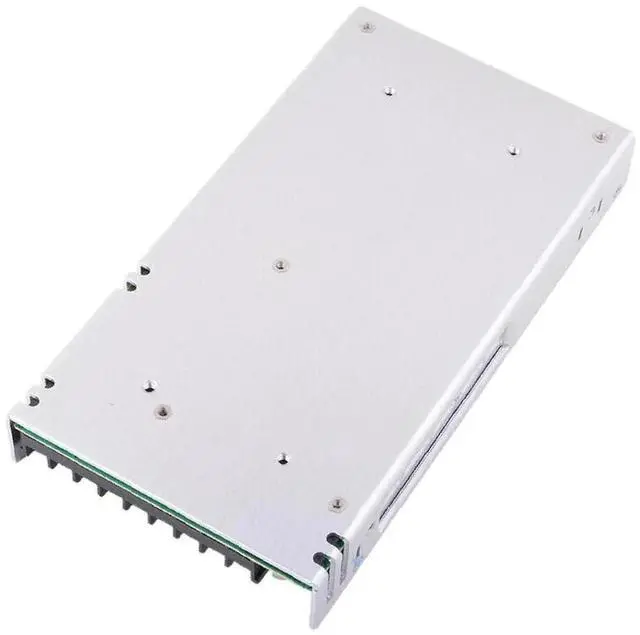

MeanWell LRS-200-24 Power Supply - 200W 24V

Features:
No load power consumption <0.5W for 150W; <0.75W for 200W/350W
AC input selectable by switch
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage / Over temp.
Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W)
Compliance to IEC/EN60335-1 (PD3) and IEC/EN61558-1, -2-16 for household appliances (150W)
Operating altitude up to 5000 meters
LED indicator for power on
High efficiency, long life and high reliability
Low cost
3 years warranty
General Specification (Please refer to images below for detailed datasheet)
AC input voltage range: 115 / 230VAC by switch
AC inrush current (max. ): Cold start, 60A at 230VAC
DC adjustment range: ±10% by potentiometer
Overload protection Range: 110%~140%
Overload protection Type: Hiccup mode, auto-recovery
Over voltage protection Range: 115%~145% rated output voltage
Over voltage protection Type: Shut down o/p voltage, re-power on to recover
Withstand voltage:
I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5 kVAC
Working temperature: -25~+70°C (refer to output derating curve)
Safety standards: UL60950-1 approved
EMC standards: Design refer to EN55022 class A
Connection: 9P/ 9.5 mm pitch terminal block
Dimension (LxWxH): 215x 115x 30
