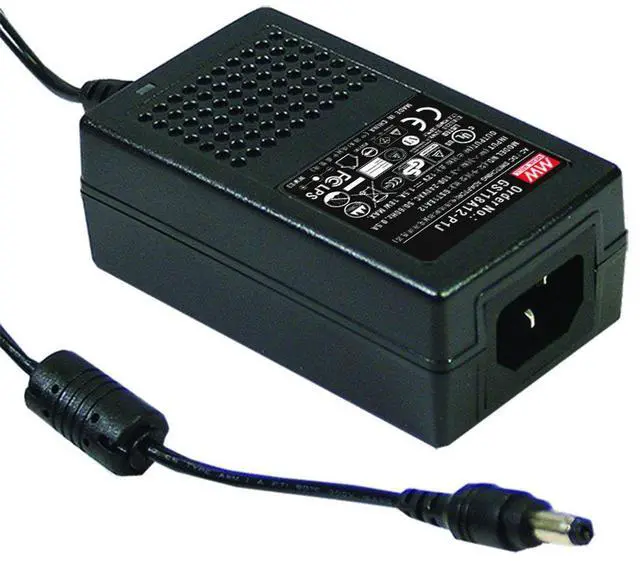

Mean Well GST18A12-P1J 18W AC-DC High Reliability Industrial Adaptor

18 Watt AC-DC High Reliability Industrial Adaptor 12 Volts 1.5 Amps GST18A is a highly reliable, 18W desktop style single-output green adaptor series. This product is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 85VAC to 264VAC. The entire series supplies different models with output voltage ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. The supreme feature allows the adaptor to save the energy when in operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock.

GST18A is certified for the international safety regulations.
Features: Universal AC input / Full range 3 pole AC inlet IEC320-C14 No load power consumption Energy efficiency Level VI Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and CoC Version 5 Class I power (with earth pin)
Protections: Short circuit / Overload / Over voltage Fully enclosed plastic case Pass LPS High operating temperature up to +70°C LED indicator for power on 3 year warranty Detailed

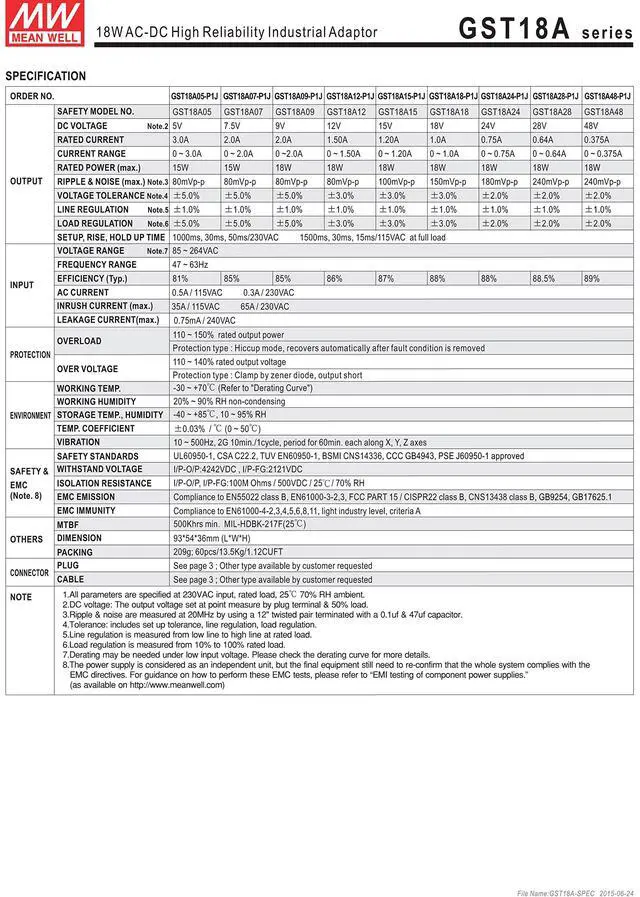

Specifications

: Primary
Output Voltage (VDC): 12
Output Current (A): 1.5 Maximum
Output Power (W): 18
AC Power Cord: NOT INCLUDED, RECOMMEND 38050
Family: GST18
Input Voltage (VAC): 85 to 264
Input Frequency: 47 to 63
Maximum Input Current (A): 0.5 Output
Connector Type: Cylindrical Female
Output Connector Diameters: 2.1 mm x 5.5 mm
Polarity: Center Positive Number of
Outputs: 1
Product Type: AC to DC
Power Supply Efficiency (%): 86 Minimum
Isolation Voltage: 4242
Operating Temperature-Min (Cell): -30
Operating Temperature-Max (Cell): 70 (more. ).
