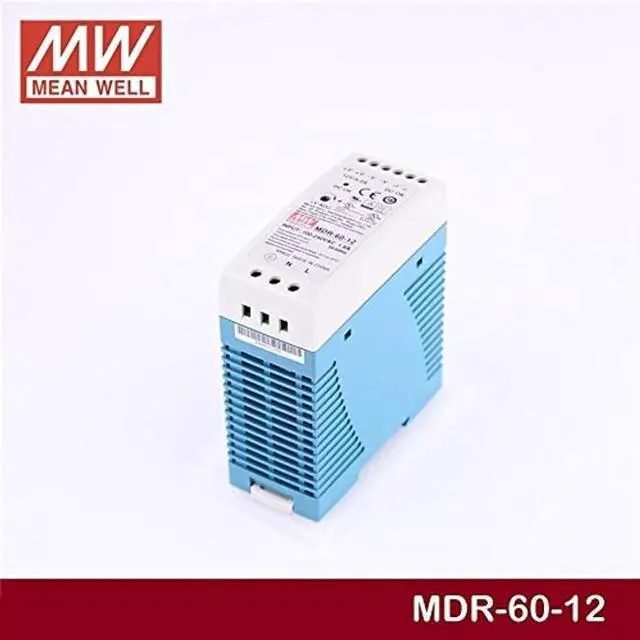

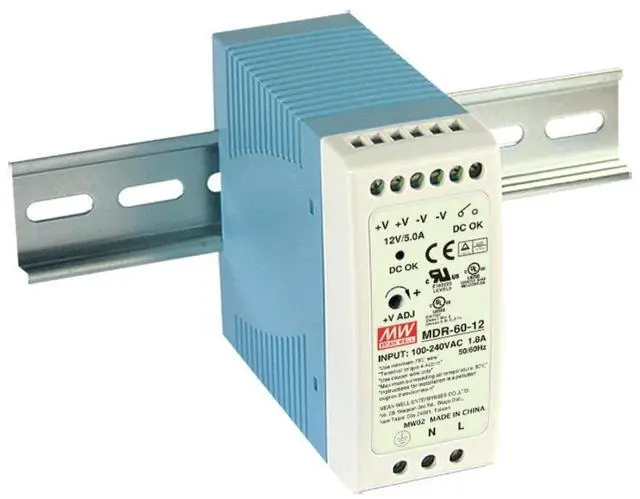

AC to DC Power Supply Enclosed LED Single Output 12 Volt 5 Amp 60 Watt
- Item model number: MDR-60-12
- Brand: MEAN WELL
- Output Wattage: 60 Watts
- Item Dimensions LxWxH: 1.77 x 4.06 x 4.41 inches
- Item Weight: 11.6 ounces
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
60W DIN-Rail switching Power Supply 24 Volts 2.5 Amps
Protections: Short-circuit, Overload, Overvoltage 100% Full load burn-in test Soft-start circuit, limiting AC surge current
Input Voltage: 85-264VAC 47-63Hz, or 120-370VDC
Input Current Full load: 1.8A (115V) / 1.0A (230V)
Size: 3.9 x 1.6" x 3.5"
Weight: 0.7 lbs.
3-year warranty Detailed
Output Voltage (VDC): 24
Output Current (A): 2.5 Maximum
Output Power (W): 60

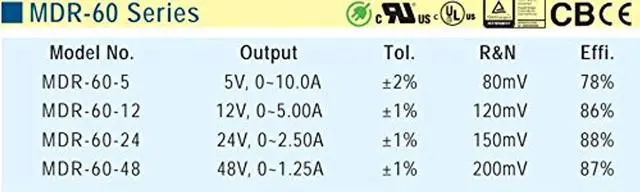

Family: MDR-60
Input Voltage (VAC): 85 to 264
Input Frequency: 47 to 63
Maximum Input Current (A): 1.8 Output
Connector Type: Screw Terminal
Efficiency (%): 88
Operating Temperature-Min (Cell): -20
Operating Temperature-Max (Cell): 70
Length (inch): 1.57
Width (inch): 3.54
Height (inch): 3.94
Agency Approvals: UL/CUL/TUV/CB/CE
Color: White
Style: DIN".
Specifications
Universal AC input rangeProtections: Short-circuit, Overload, Overvoltage 100% Full load burn-in test Soft-start circuit, limiting AC surge current
Input Voltage: 85-264VAC 47-63Hz, or 120-370VDC
Input Current Full load: 1.8A (115V) / 1.0A (230V)
Size: 3.9 x 1.6" x 3.5"
Weight: 0.7 lbs.
3-year warranty Detailed
Specifications
: PrimaryOutput Voltage (VDC): 24
Output Current (A): 2.5 Maximum
Output Power (W): 60
Family: MDR-60
Input Voltage (VAC): 85 to 264
Input Frequency: 47 to 63
Maximum Input Current (A): 1.8 Output
Connector Type: Screw Terminal
Efficiency (%): 88
Operating Temperature-Min (Cell): -20
Operating Temperature-Max (Cell): 70
Length (inch): 1.57
Width (inch): 3.54
Height (inch): 3.94
Agency Approvals: UL/CUL/TUV/CB/CE
Color: White
Style: DIN".
