$95.99
Meet Your Seller

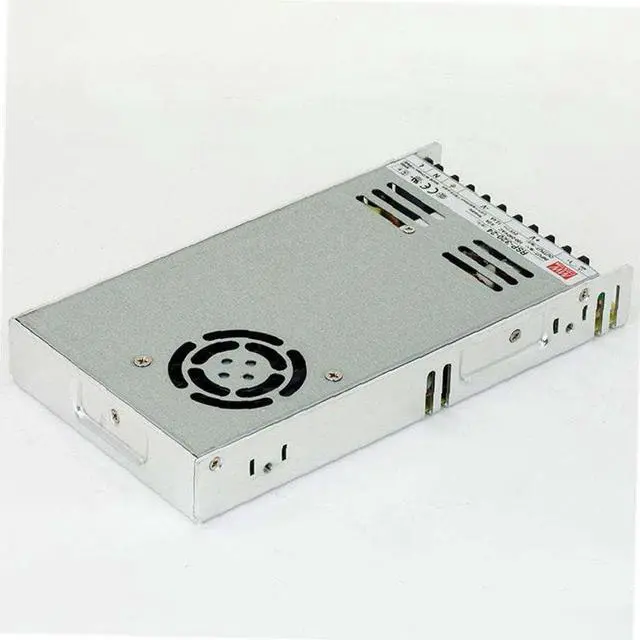

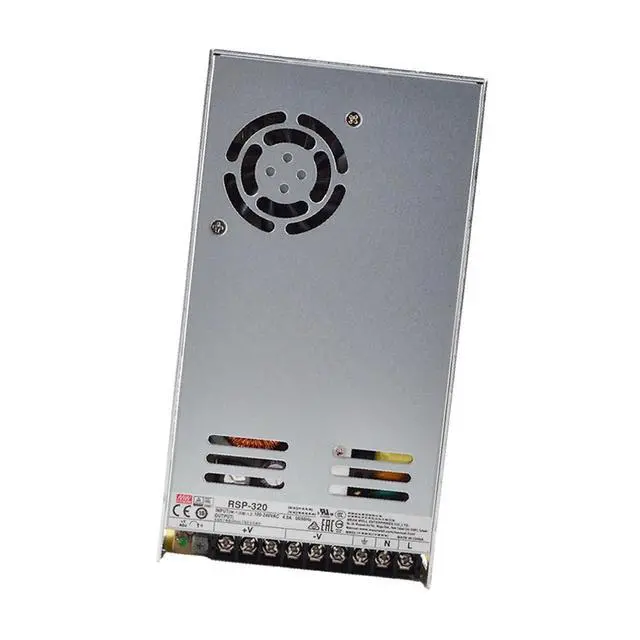

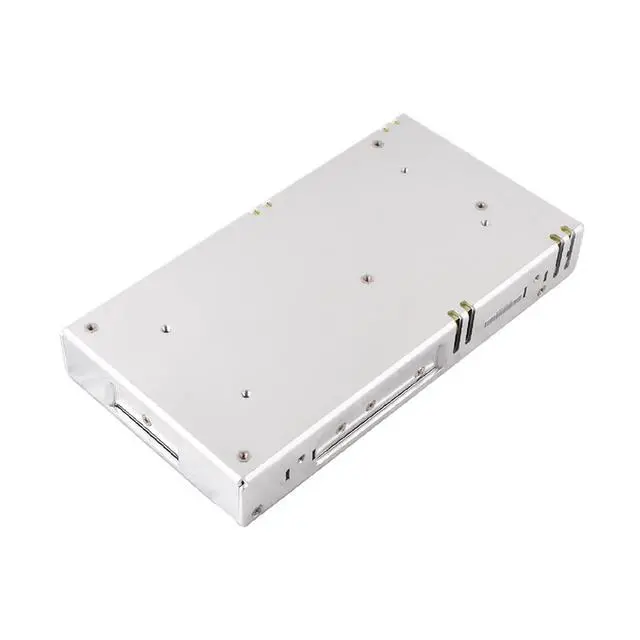

Meanwell RSP-320-24 Power Supply - 320W 24V 13.4A - Low Profile
- Output Voltage: 24V
- Approx. Wattage: 320W
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Warranty: 3 Years Warranty
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Features: 1U low profileUniversal AC input /
Full rangeProtections: Short circuit / Overload / Over voltage / Over temperatureForced air cooling by built-in DC fanLED indicator for power on3 years warrantyGeneral Specification (Please refer to images below for detailed datasheet)
AC input voltage range: 88~264VAC; 124~370VDCAC inrush current (max. ): 40A
at 230VACDC adjustment range: 10% rated output voltageOverload protection
Range: 105%~150%Overload protection
Type: Hiccup mode, auto-recoveryOver voltage protection
Range: 115%~145%Over voltage protection
Type: Shut down O/P voltage, re-power
on to recoverWithstand voltage:
I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5 kVAC
Working temperature: -30~+70C (refer to output derating curve)
Safety standards: UL60950-1, TUV EN60950-1, CCC
GB4943 approvedEMC standards: EN55022 class B, EN61000-3-2, 3, EN61000-4-2, 3, 4, 5, 6, 8, 11, GB9254Connection
Input: 9P / 9.5 mm pitch terminal blockConnection
Output: 9P / 9.5 mm pitch terminal blockDimension (LxWxH): 215x115x30Case No.: 207A
Full rangeProtections: Short circuit / Overload / Over voltage / Over temperatureForced air cooling by built-in DC fanLED indicator for power on3 years warrantyGeneral Specification (Please refer to images below for detailed datasheet)
AC input voltage range: 88~264VAC; 124~370VDCAC inrush current (max. ): 40A
at 230VACDC adjustment range: 10% rated output voltageOverload protection
Range: 105%~150%Overload protection
Type: Hiccup mode, auto-recoveryOver voltage protection
Range: 115%~145%Over voltage protection
Type: Shut down O/P voltage, re-power
on to recoverWithstand voltage:
I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5 kVAC
Working temperature: -30~+70C (refer to output derating curve)
Safety standards: UL60950-1, TUV EN60950-1, CCC
GB4943 approvedEMC standards: EN55022 class B, EN61000-3-2, 3, EN61000-4-2, 3, 4, 5, 6, 8, 11, GB9254Connection
Input: 9P / 9.5 mm pitch terminal blockConnection
Output: 9P / 9.5 mm pitch terminal blockDimension (LxWxH): 215x115x30Case No.: 207A
