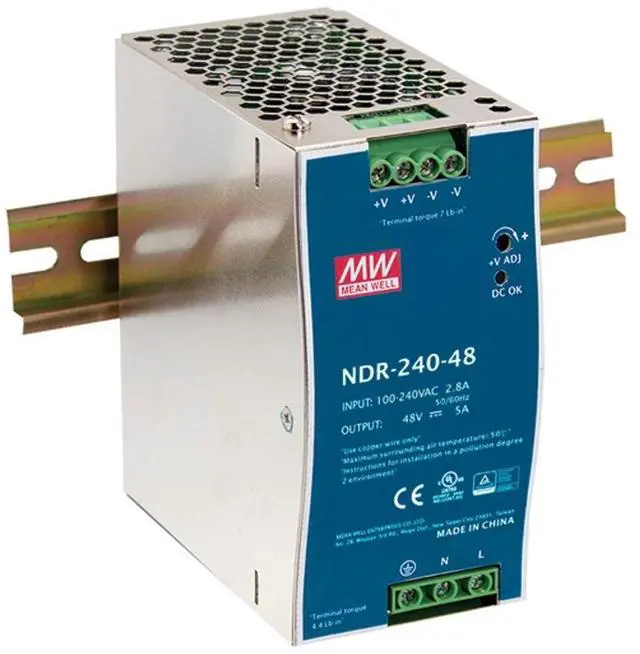

LINOVISION Mean Well NDR-240-48 48V 5 Amp 240W Industrial DIN Rail Power Supply PFC90V to 264V AC Input

48 Volt 5 amp 240 watt industrial DIN rail power supply 48 Volts 5 Amps the standards-240 is an economical slim 240 watt DIN rail power supply Series that can be installed on ts-35/ 7.5 or ts-35/15 mounting rails. The body is designed 63mm in width, which allows space saving inside the cabinets. The entire Series adopts the full range AC input from 90VAC to 264VAC and conforms to en61000-3-2, the NORM the European union regulates for harmonic current. Standards-480 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 90 percent, the entire Series can operate at the ambient temperature between -20c and 70c under air convection.

It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN60950-1, and etc. ) make standards-240 a very competitive power supply solution for industrial applications. Features universal AC input/full range (90-264 VAC) built-in active
PFC function protections: short circuit/overload/over voltage/over temperature cooling by free air convection can be installed on DIN rail ts-35/ 7.5 or 15 UL 508 (industrial control equipment) approved en61000-6-2 (en50082-2) industrial immunity level 100 percent full load burn-in Test 3 year warranty applications industrial control systems factory automation electro-mechanical apparatus semiconductor fabrication equipment detailed specifications: primary
output voltage (VDC): 48
output current (a): 5
maximum output power (W): 240
family: standards-240
input voltage (VAC): 90
to 264 input frequency: 47 to 63 maximum input current (a): 2.5 output connector
Type: screw terminal (more. ).
