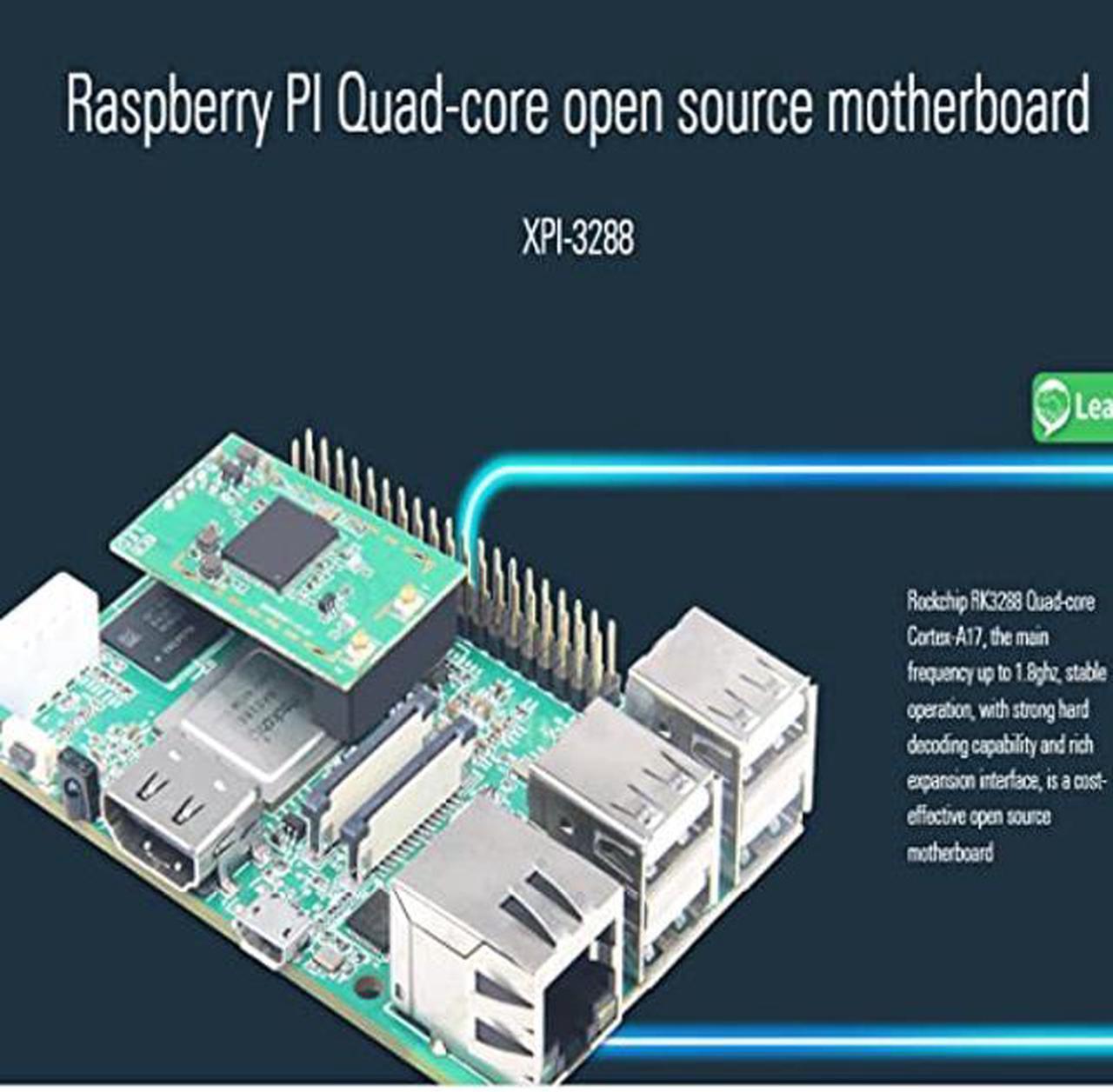

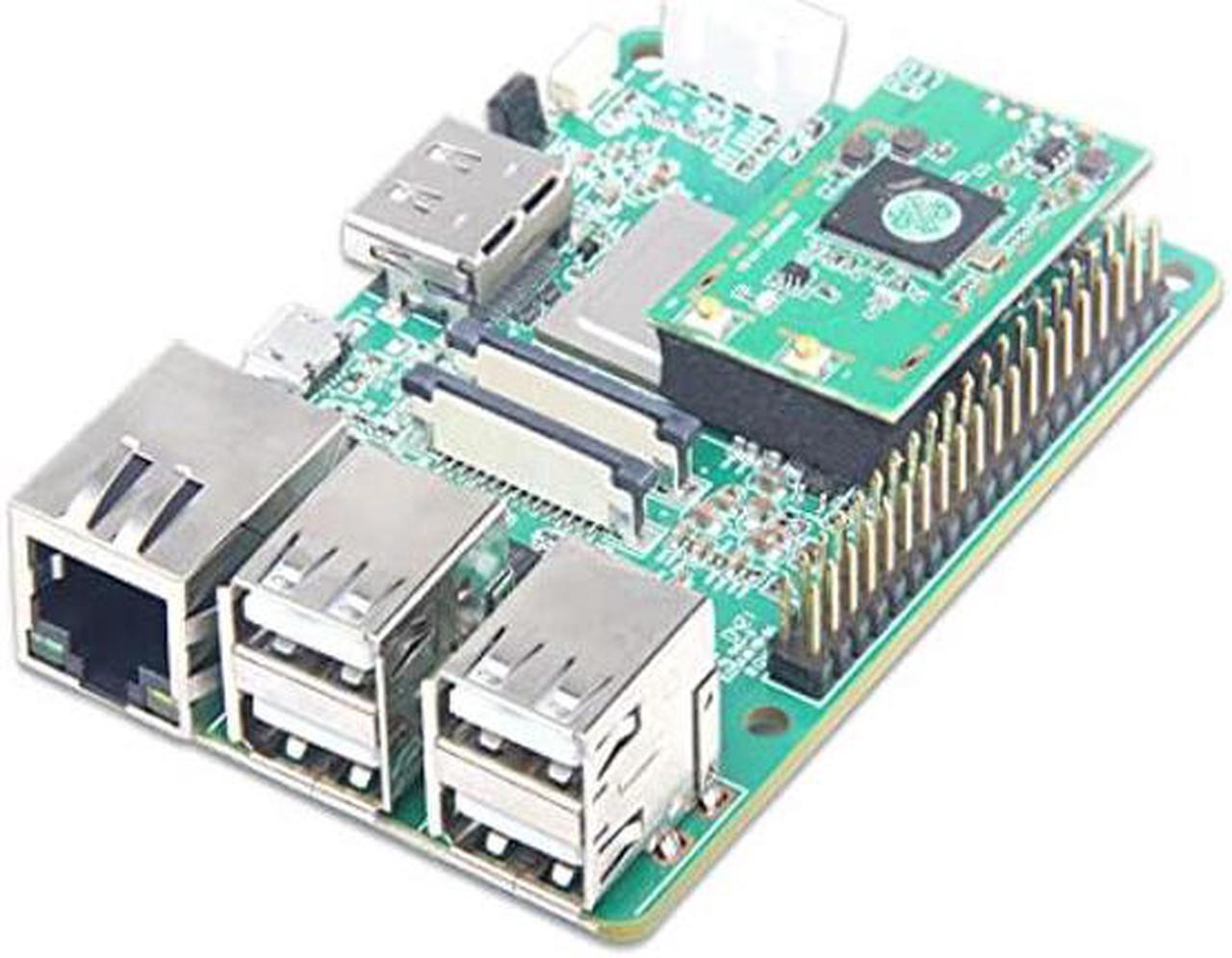

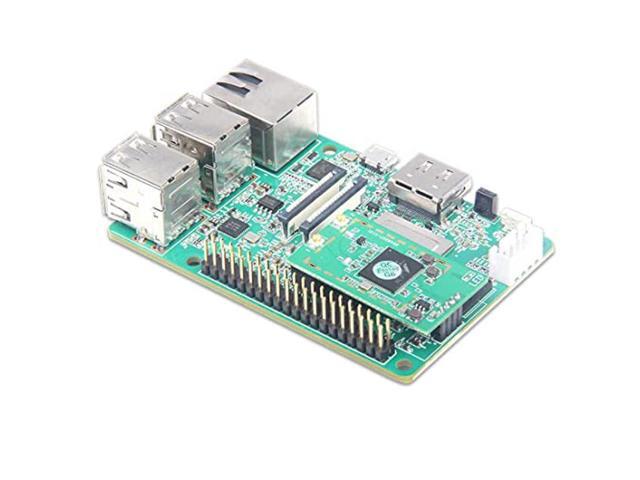

Geniatech XPI-3288 Android Single Board Computer Development Board Moudle,Rockchip RK3288 Quad Core CPU 2G RAM, 16GB EMMC Flash Motherboard
- Card-sized High Performance Board, Rockchip RK3288 with Quad-core Cortex-A17 up to 1.6GHz, 2G RAM, 16GB eMMc flash, faster read / write speeds for the OS, applications and file storage

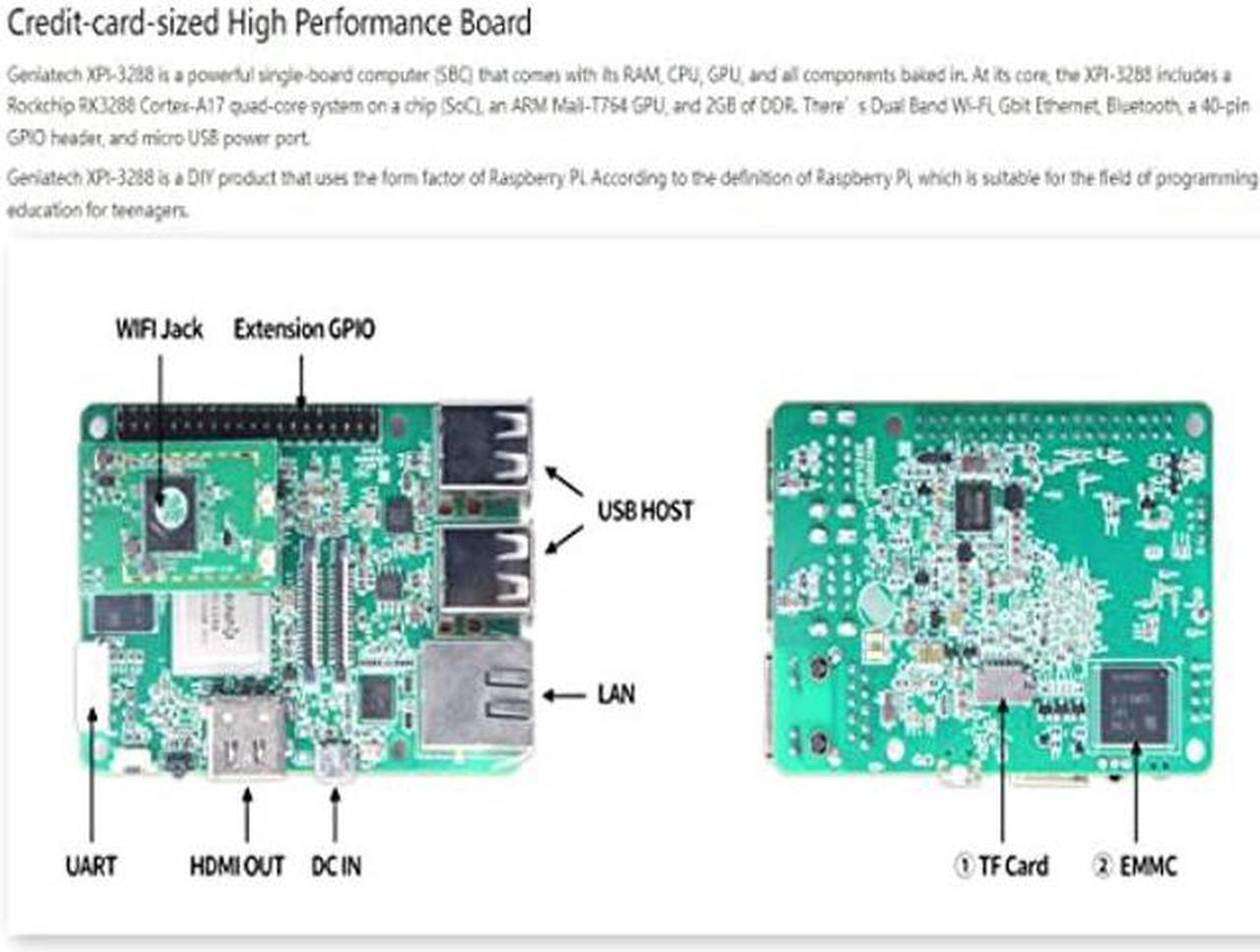

- 4*USB2.0, 1*HDMI Out, 1*Micro USB, 1*UART, 1*GPIO interface, WiFi and 1000M LAN interface, Micro SD card (TF card : Max64G)
- Multiple DIY use Single Board Computer, use the Form Factor of Raspberry Pi, DIY Friendly Design: 40 Pin GPIO header with I2S, I2C, SPI, UART, etc
- According to the definition of Raspberry Pi, which is suitable for the field of programming education for teenagers
- Compatibility and Extensibility: 40 Pin header enables hardware re-use by maintaining compatible alternate pin functions like I2S, I2C, SPI, UART, and so on
+
+
Overview
Specs
Reviews

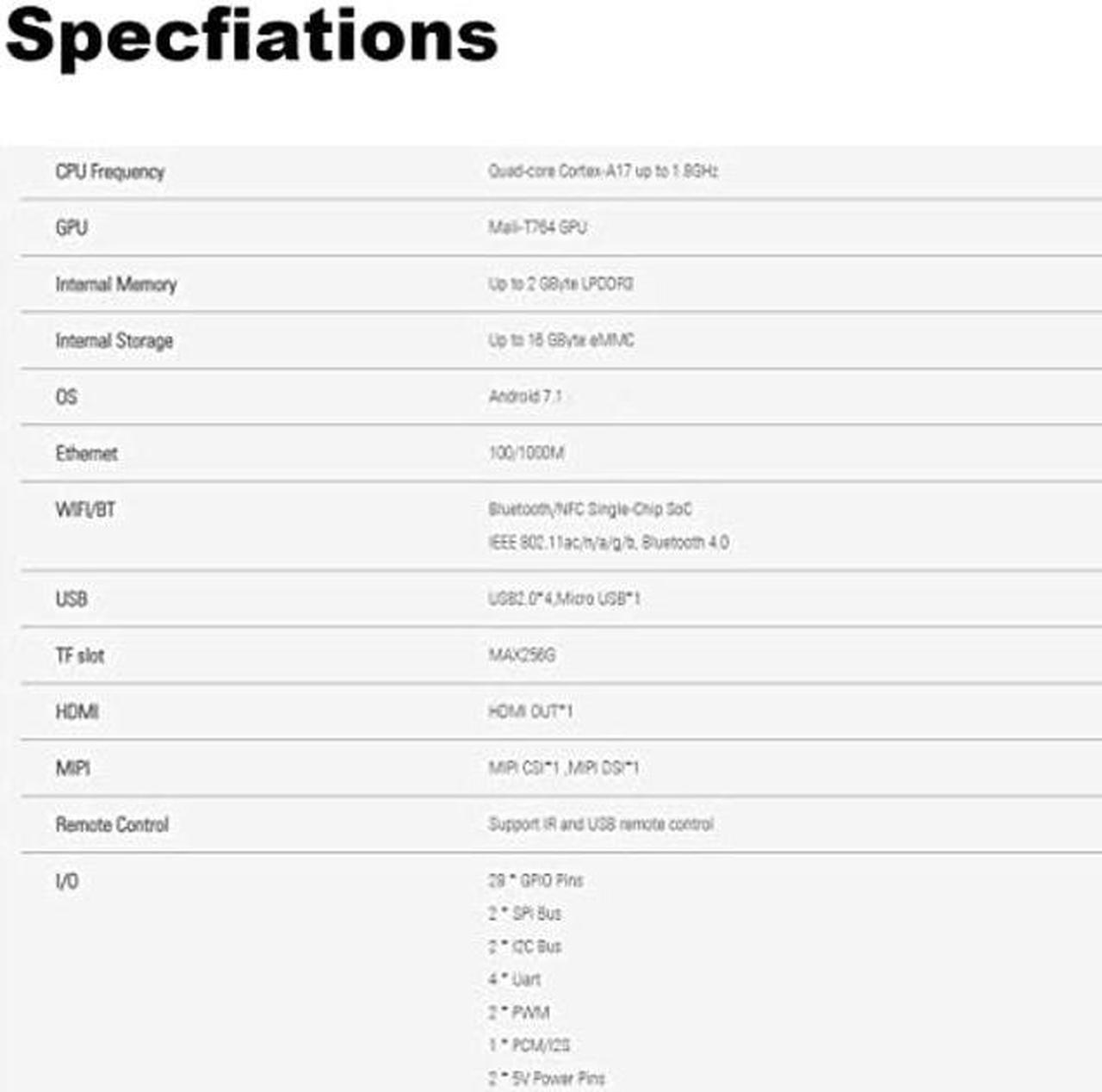

Specifications
of Geniatech XPI-3288Chipset: Rockchip RK3288
Software: Android 7.1
Processor:
CPU: Quad-core Cortex-A17 up to 1.6GH z
GPU: Mali-T764
DDR: 2GB
EMMC FLASH: 16GB
Network:
Ethernet: RJ45, 1000M
WiFi: 2.4G /5G Dual Band
Bluetooth: BT 4.0
Interface:
TF Card Slot: TF card *1(max. 64GB)
HDMI out*1, USB Host 2.0 *4
MicroUSB: Power IN*1
GPIO: GPIO*28
Codec: Video:
MPEG-1: up to MP: 1080p@60fps (1920x1080)
MPEG-2: up to MP: 1080p@60fps (1920x1080)
MPEG-4: up to ASP level 5: 1080p@60fps (1920x1080)
GMC (global motion compensation) not supported
H. 263: 576 p@60fps (720x576)
H. 264: up to HP level 5.1: 2160p@24fps (3840x2160)
image cropping not supported
AVS: 1080p@60fps (1920x1080)
4:4: 4 sampling not supported
VC-1: up to AP level 3: 1080p@30fps (1920x1080)
VP 8: 1080 p@60fps (1920x1080)
MVC: 1080p@60fps (1920x1080)
Audio: Supports MP3, AAC, WMA
Photo: jpeg, jpg, png
Dimensions: 85 mm * 56 mm
Operating Temp: 0degC to 70degC
Adapter: DC5V / 3A
Accessory: Power Adapter
