OM3 Fiber LC to LC 30m, (98ft) LC to LC Multimode Fiber Patch Cable, Options 7in~500ft, 10GB Fiber Cable LC to LC OM3 LSZH, RamboCables
- [(OM3 LC-LC Multimode Duplex Fiber Patch Cable)] RamboCables 98ft/30m OM3 LC to LC Multimode Duplex Fiber Patch Cord is constructed wtih 50/125mm high rated fiber cladding, 850/1300nm Wavelength, 2.0mm fiber cable diameter and environmentally friendly LSZH fiber jacket. This international industry standard OM3 lc/ lc duplex multimode fiber optic cable ensures a more stable and efficient transmission for your network.
- [(Wide Usage)] OM3 MMF is the preferred fiber specification for 10G Ethernet connections. OM3 LC to LC Multimode Duplex Fiber patch cords is specially designed for connecting 10G SR, 40G BIDI SR, QSFP+, SFP+ transceivers etc, ideal for 10G/40G/100G Ethernet connections and RamboCables OM3 LC-LC optic fiber patch cables help saving more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places patch cables are needed.
- [(Transmission Distance)] OM3 Multimode LC to LC Fiber Patch Cables
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Production

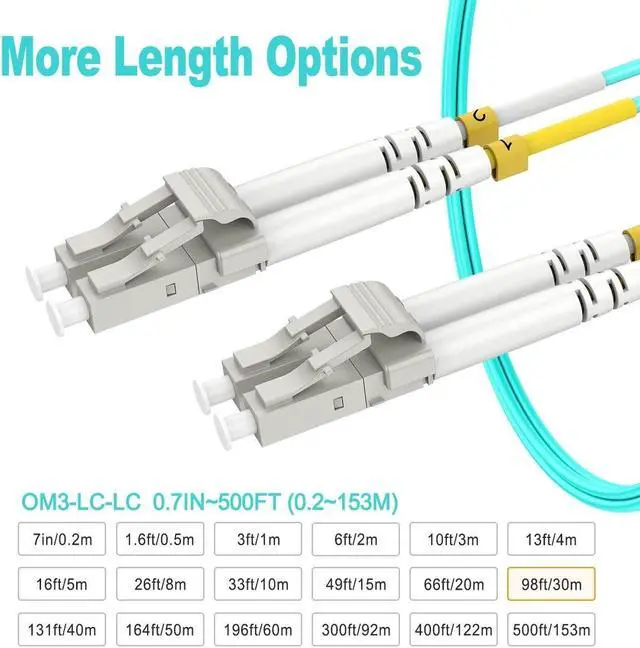

Length Options: 0.2 m/7inch to 122m/400ft - RamboCablesCable
Length (included connector):
30M/98FTManufacturer: RamboCables
Product SpecificationsFiber Type: OM3(Laser-optimized)
MultimodeCable Color:
AquaWavelengths: 850nm and 1300nmConnector
Type: Duplex LC to
LC Polarity: UPC to UPC
Ferrule Material: CeramicCable
Jacket: LSZH

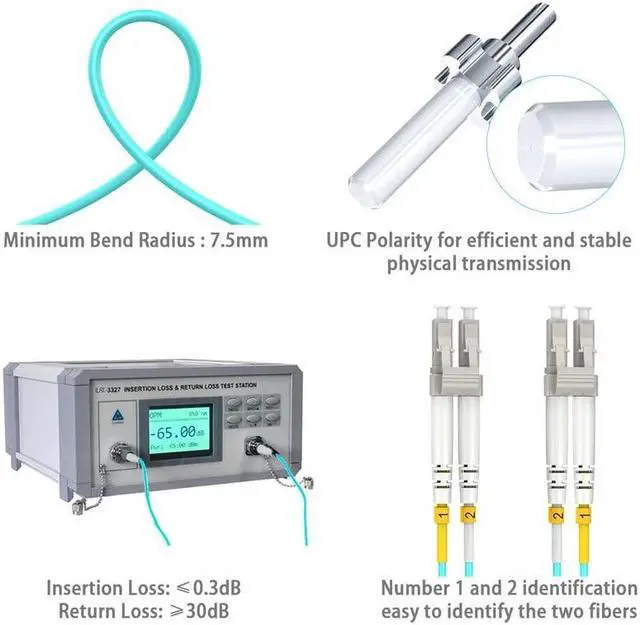

Minimum Bend Radius: 7.5 mmCable
Diameter: 2.0 mmOperating
Temperature: -20~70degCFiber

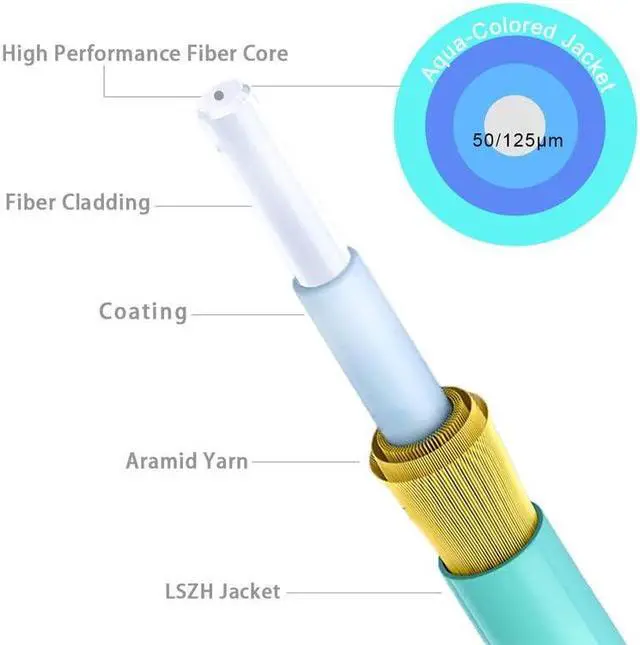

Core: High Rated 50/125um Fiber and CladdingLength in
Meters: 30MLength in
Feets: 98FTInsertion
Loss: <=0.3dBReturn Loss: > =20dB
Transmission DistanceWavelength: 850nm and 1300nm1G
Ethernet Max Distance: 550 Meters at 850nm10G
Ethernet Max Distance: 300Meters at 850nm40G
Ethernet Max Distance: 300Meters at 850nm100G
Ethernet Max Distance: 200Meters
at 850nmBandwidth: 2000
MHz*km at 850nmAttenuation at 850nm: 3.0
dB/kmAttenuation at 1300nm: 1.0 dB/km ApplicationsComputer Networking - Transfers data at a higher rate of speed. Telecommunications - Carries data to internet, cable TV and phone subscribers at greater bandwidths. Military and Defense - Transmits data signals more clearly. Quality Assurance & ServiceWe provide 5 years warranty, free replacement and unconditional 90-day full refund guarantee. Contact us for technical support at any time.
Details
LC to LC 30m/98ft OM3 Fiber Patch Cable Multimode Duplex - 50/125mm Fiber Optic Patch Cords - 10G MMF LSZH 850/1300nm,Length Options: 0.2 m/7inch to 122m/400ft - RamboCablesCable
Length (included connector):
30M/98FTManufacturer: RamboCables
Product SpecificationsFiber Type: OM3(Laser-optimized)
MultimodeCable Color:
AquaWavelengths: 850nm and 1300nmConnector
Type: Duplex LC to
LC Polarity: UPC to UPC
Ferrule Material: CeramicCable
Jacket: LSZH
Minimum Bend Radius: 7.5 mmCable
Diameter: 2.0 mmOperating
Temperature: -20~70degCFiber
Core: High Rated 50/125um Fiber and CladdingLength in
Meters: 30MLength in
Feets: 98FTInsertion
Loss: <=0.3dBReturn Loss: > =20dB
Transmission DistanceWavelength: 850nm and 1300nm1G
Ethernet Max Distance: 550 Meters at 850nm10G
Ethernet Max Distance: 300Meters at 850nm40G
Ethernet Max Distance: 300Meters at 850nm100G
Ethernet Max Distance: 200Meters
at 850nmBandwidth: 2000
MHz*km at 850nmAttenuation at 850nm: 3.0
dB/kmAttenuation at 1300nm: 1.0 dB/km ApplicationsComputer Networking - Transfers data at a higher rate of speed. Telecommunications - Carries data to internet, cable TV and phone subscribers at greater bandwidths. Military and Defense - Transmits data signals more clearly. Quality Assurance & ServiceWe provide 5 years warranty, free replacement and unconditional 90-day full refund guarantee. Contact us for technical support at any time.
