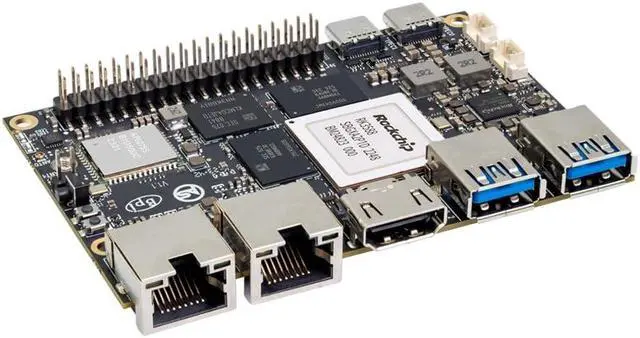

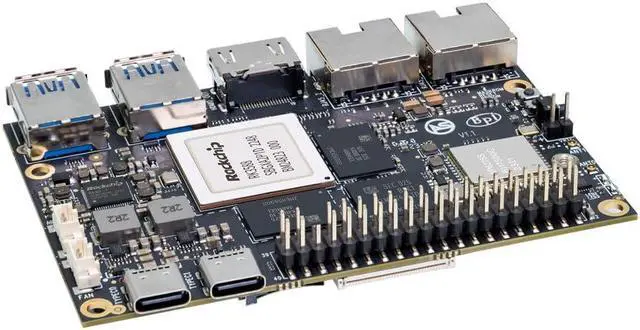

Banana Pi BPI-M7 LPDDR4x 16GB Single Board Computer, RK3588 CPU 6Tops NPU Mali-G610 GPU, 2X 2.5GbE Ethernet for AI Edge Computing/Cloud Servers/Video Encoder, Support Android Linux (BPI-M7(8+64GB))
- [High Performance RockChip RK3588 CPU] ] Banana Pi BPI-M7 single board computer adopt RK3588 Quad-Core Cortex-A76 2.4GHz and Quad-Core Cortex-A55 1.8GHz CPU, Imagination ARM Mali-G610 MP4 GPU (4x256KB L2 Cache), supports OpenGL ES3.2/OpenCL2.2/Vulkan1.1. NPU (3 NPU core) for AI up to 6Tops, supports INT4/INT8/INT16 mixed computing.
- [Greater Storage Scalability] Banana Pi BPI-M7 single board computer onboard 64bit 8/16/32GB LPDDR4x RAM and 64/128GB eMMC flash, onboard MicroSD slot and M.2 PCIe interface (PCIe 3.0 4-lanes), expansion support for 2280/2260/2242/2230 M.2 SSD cards, providing greater possibilities for AI edge computing and ARM computers development.
- [Wide Range of Applications] Banana Pi BPI-M7 single board computer can be widely used in ARM computers, AI edge computing, Cloud Servers, Artificial intelligence, Cloud Computing, Virtual/Augmented Reality, Blockchain, Smart NVR, Smart Home Devices, Security Surveillance etc. It is also a smart SBC built specifi
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

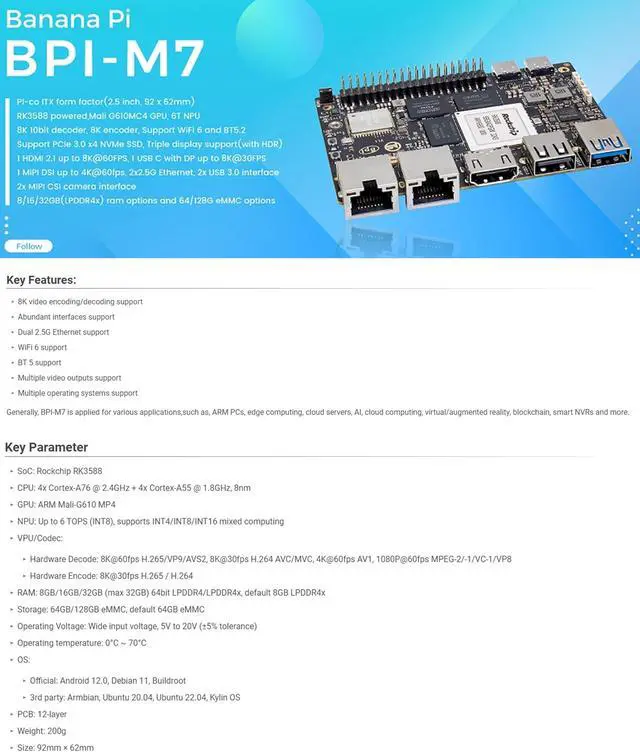

-Specification-
SOC Master Controller: RockChip RK3588
CPU:
RK3588 Quad-Core Cortex-A76@ 2.4GH z+Quad-CoreCortex-A55@ 1.8GH z, 8nm process
GPU: GPU Mali-G610 MP4 (4x256KB L2 Cache) Supports OpenGL ES 3.2 /OpenCL 2.2 /Vulkan 1.1
NPU: 6 TOPS@INT8 (3 NPU core)
Supports INT4/INT8/INT16 mixed computing
Supports frameworks like TensorFlow, MXNet, PyTorch, Caffe, Tflite, Onnx NN, Android NN, etc
VPU/Codec:
Hardware Decode: 8K@60fps H. 265/VP9/AVS2, 8K@30fps H. 264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8
Hardware Encode: 8K@30fps H. 265 / H. 264
ISP:
Integrated 48MP ISP with HDR&3DNR
RAM: 8GB/16GB/32GB (max 32GB ) 64bit LPDDR4/LPDDR4x, default 8GB LPDDR4x
Flash:: 32GB/64GB/128GB eMMC, default 64GB eMMC, Supports MicroSD card expansion
PCIe:
1x M. 2 Key M (PCIe 3.0 4-lanes). Expandable SSD support for 2280/2260/2242/2230 M. 2 SSD cards, default 2280
Networking:
2x 2.5G Ethernet
Onboard IEEE 802.11 a/b/g/n/ac/ax WIFI6 and BT5 (AP6275P)
USB:
1x USB 3.0 (USB 3.1 Gen 1), equivalent to USB 3.2 Gen 1/USB 3.0, up to 5Gbps
1x USB Type-C 3.1 (DP 1.4 /OTG)
1x USB 2.0 High (480Mbps) /Full (12Mbps) /Low-Speed( 1.5M bps) modes
40-pin:
Fully compatible with Raspberry Pi 40-pin header for connecting abundant add-on modules
Supports UART/SPI/I2C/I2S/PWM/ADC/5V Power/ 3.3V Power
Other:
1x 5V fan interface
1x battery connector for low power RTC chip HYM8563TS
2x LEDs - blue LED blinks on system start, red LED user controllable
Power Input: USB Type-C PD 2.0, 9V/2A, 12V/2A, 15V/2A
-OS Support-
Official:: Android 12.0, Debian11, Buildroot
3rd Party: Armbian, Ubuntu 20.04, Ubuntu 22.04, Kylin OS
Dimensions: 92 mm x 62mm
Operating temperature: 0 ~ 80

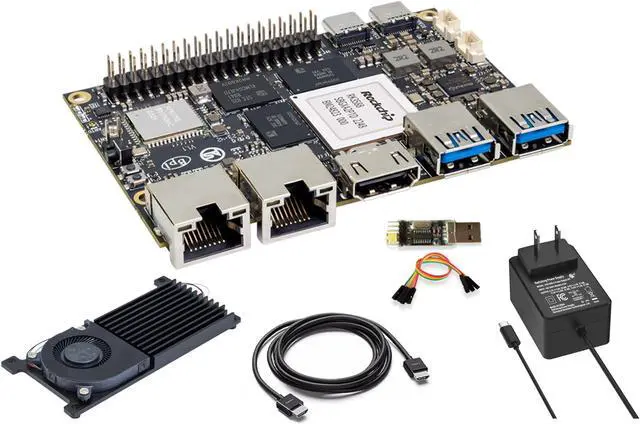

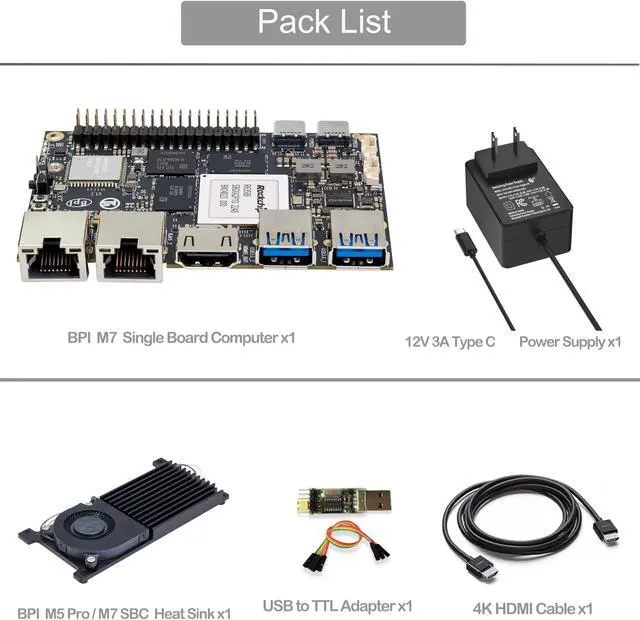

-Package Content-
BPI-M7 Single Board Computer x1
Heat Sink x4
Serial Port x1
Dupont Line x1
20W PD Power Supply x1
-Technical Support-
Please click "WayPonDEV" and ask a question.
Please leave the message "wpd#youyeetoo&com (#-@, &-
. )" or skype: monica_9122.
