UOTEK UTEK UT-885 USB to RS-485/422 Interface Protocol Vonverter (1-Port USB to RS-422/485 Serial Converter with ESD Protection)
- Supports Win XP/Vista/7/8/10/CE/Mac/Linux Built with an FTDI Chipset. Works seamlessly with Windows 7, 8, 10, 11, Linux, and macOS 10.X, making it a highly versatile solution across platforms.

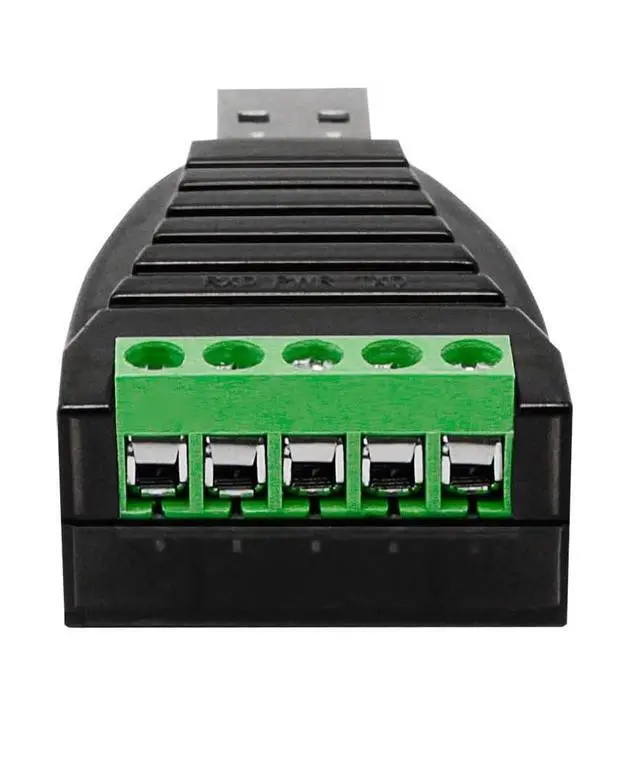

- USB Signals:VCC,DATA+,DATA-,GND,FG Built-in signal tester features Power, TX, and RX LED indicators for quick and easy connection testing. Integrated terminal block connector with screws for secure wired RS485 and RS422 conversions.
- RS-485 Signals:T/R+,T/R-,GND ;RS-422 Signals:TXD+,TXD-,RXD+,RXD-,GND
- The Range of Baudrate: 300-912.6Kbps, auto-detect serial signal USBUSB to Serial RS485/422 Converter with LED Indicators, FTDI Chipset, Terminal Connectors, ESD Protection, Wide OS Support
- Transmission Distance: 1.2KM for RS485 RS422, less than 5m for USB
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
OverviewUT-885 is a universal USB to RS485 RS422 converter. It complies with USB, RS485 and RS422 standards. UT-885 converter provides connection for point to point, point to multipoint communication. For point to multipoint mode, each converter is allowed to connect 32 sets RS422 or RS485 devices with baudrate 300- 921.6K bps. SpecificationsUSB 2.0; compliable USB 1.1, 1.0; TIA/EIA RS-485, RS-422USB
Signals: VCC, DATA+, DATA-, GND, FGRS-485
Signals: T/R+, T/R-, GNDRS-422
Signals: TXD+, TXD-, RXD+, RXD-, GND
Working mode: Asynchronous, P2P, Point to multipoint, 2 lines half duplex, 4
lines all duplexDirectional control: Automatically determine and control the data transmission direction.
Baud rate: 300-921, 600bps, Automatically adapt serial port signal speed.
Load capacity: Point to multipoint, Max=32 RS-422 or
RS-485 interface devicesTransmission distance: RS-485/422 port 1.2KM (at 9, 600bps), USB&<5
metersInterface protection: 600W lightning strike, surge protection and 15KV
ESD protectionInterface types: USB port A-class males, and
RS-485/422 port 5Pin postsSignal indicators: PWR, TXD, RXD
Transmission medium: STP, UTP
External dimension: 62mm
x 33mm x 19mmEnvironment: -40 to 85, relative humidity 5%-95%Original Packing Included1x UT-885 USB to RS485 RS422 Converter1x CD Driver
Signals: VCC, DATA+, DATA-, GND, FGRS-485
Signals: T/R+, T/R-, GNDRS-422
Signals: TXD+, TXD-, RXD+, RXD-, GND
Working mode: Asynchronous, P2P, Point to multipoint, 2 lines half duplex, 4
lines all duplexDirectional control: Automatically determine and control the data transmission direction.
Baud rate: 300-921, 600bps, Automatically adapt serial port signal speed.
Load capacity: Point to multipoint, Max=32 RS-422 or
RS-485 interface devicesTransmission distance: RS-485/422 port 1.2KM (at 9, 600bps), USB&<5
metersInterface protection: 600W lightning strike, surge protection and 15KV
ESD protectionInterface types: USB port A-class males, and
RS-485/422 port 5Pin postsSignal indicators: PWR, TXD, RXD
Transmission medium: STP, UTP
External dimension: 62mm
x 33mm x 19mmEnvironment: -40 to 85, relative humidity 5%-95%Original Packing Included1x UT-885 USB to RS485 RS422 Converter1x CD Driver
