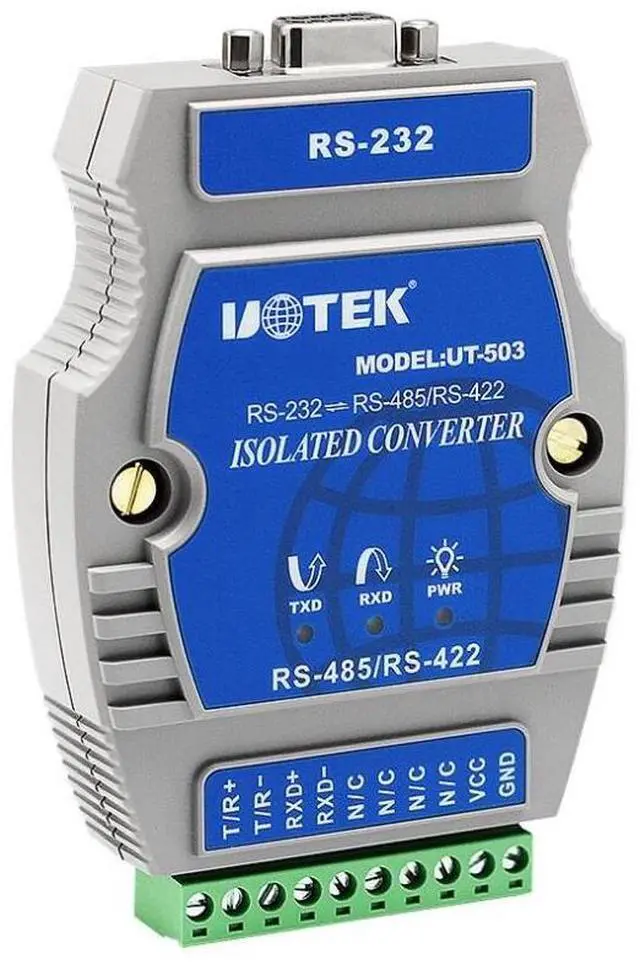

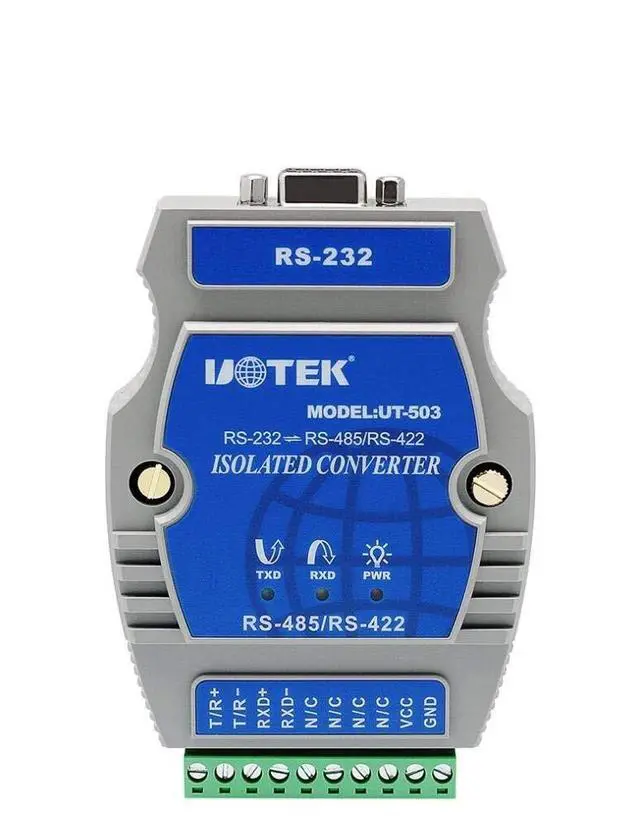

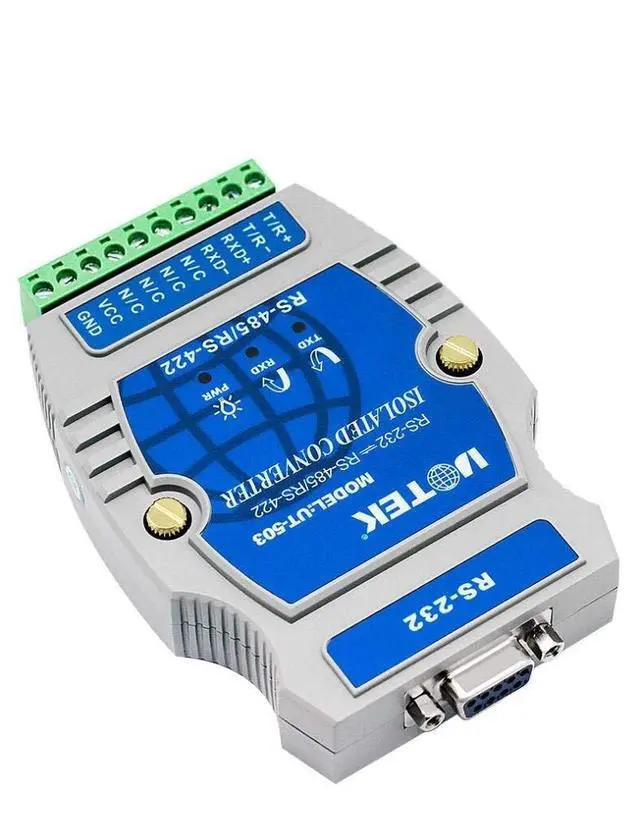

UTEK UT-503 External-Powered, RS-232 to RS-485/422, Rail-Mounted, PhotoElectric Isolation

UT-503 is an industrial converter with optoelectronic isolation. It complies with RS-232C, RS422, and RS-485 standards; it converts single side RS-232 signal to a balanced differential RS-422 or RS-485 signal. The built-in optoelectronic isolator can provide as high as 2, 500Vrm isolated voltage; the fast instant voltage restraint is designed to protect RS-422/RS-485 interface; it adopts advanced TVS (TRANSIENT VOLTAGE SUPPRESSOR) instant voltage restraint; normally, TVS tube is in high impedance state; when both sides of TVS tube suffer from high power impact in a sudden, the voltage restraint will fast lower the impedance from both sides, and absorb in big current; with this, the voltage on both sides are fixed at presupposed value, protects the component of circuit from damage.

This voltage restraint provides 600W each wire with lightning and ESD protection, and surge voltage, instant overvoltage protection on circuit which causing by all reasons; the tiny interelectrode capacitance ensures high speed transmission for RS-422/485 ports. RS-232 connects with RS-232C standaUT-503 industrial optoelectronic isolated converter provides connection for point to point, point to multipoint communication. For point to multipoint mode, each converter is allowed to connect 128 sets RS-422 or RS-485 device with baudrate 300- 115.2K bps. The power and data flow indicators indicate the working status. RS-232 in DB9 female; RS485/422 side in binding postMax connection: 128 RS485/422 devices;
Max: 5 KM (9, 600BPS).
Baud rate: 300BPS- 115.2KBPS.
Dimensions: 120mm
x 80mm x 25mmIndicator: Power, Data
trafficEnvironment: -40 to 85, relative humidity 5%-95%.
Protection: +/-15KV ESD protection for
RS-232 interfacePhotoelectric isolation voltage: 2.5KV rms /500VDC600W lightning strike and grounding interference protection for RS-485/422
