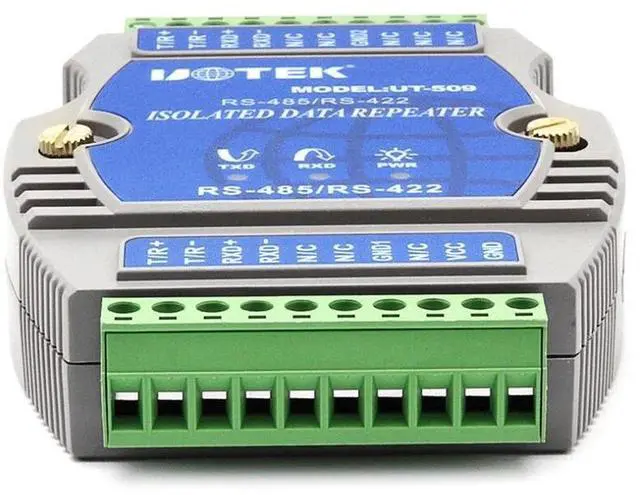

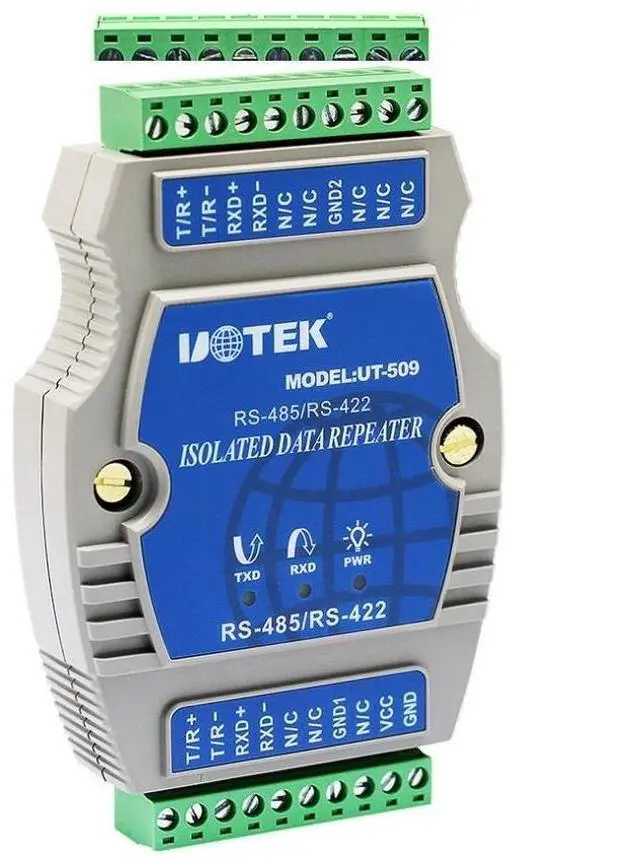

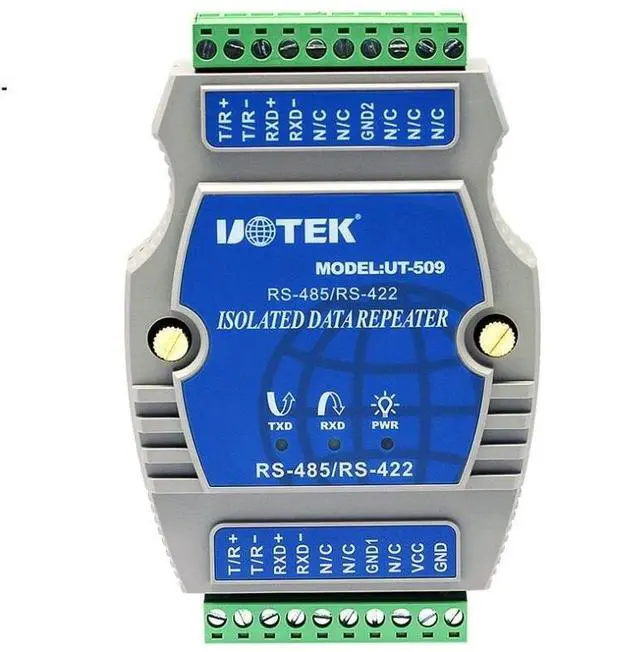

UOTEK UTEK UT-509 External-Powered RS-485/422 Repeater Rail-Mounted PhotoElectric Isolation

OverviewUT-509 is a repeater with optical isolation. Compatible with RS422 and RS485 standards, it extends the communication distance of RS422/RS485 BUS networking, increases the quantity of RS422/RS485 networking devices. Built-in zero-delay auto receiving and transmitting conversion, it has unique I/O circuit auto control data flow direction, plug & play.. RS485/422 Both side in binding post.
Max connection: 128 RS485/422 devices;
Max: 5 KM (9, 600BPS)..
Baud rate: 300BPS- 115.2KBPS..
Dimensions: 120mm x 80mm x 25mm.
Indicator: Power, Data traffic.
Environment: -40 to 85, relative humidity 5%-95%..
Protection:. +/-15KV ESD protection for RS-232 interface.
Photoelectric isolation voltage: 2.5KV rms /500VDC.

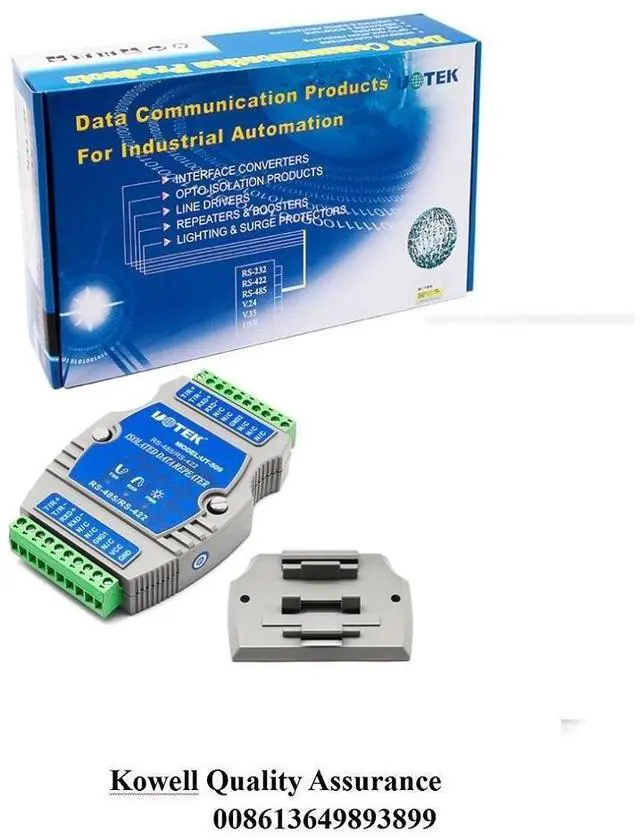

Application fields: Factory automation system. Distributed control system. Other RS232/485/422 serial device wireless network. LED INFO display equipments. PLC control and management. SCADA, measuring instruments and monitoring system. CNC management. Medical treatment/medication automation. Building automation. Check on work attendance/ Human resource managementOriginal Packing Included1x UT-509 RS485/422 Repeater1x Terminal Block1x User Manual
