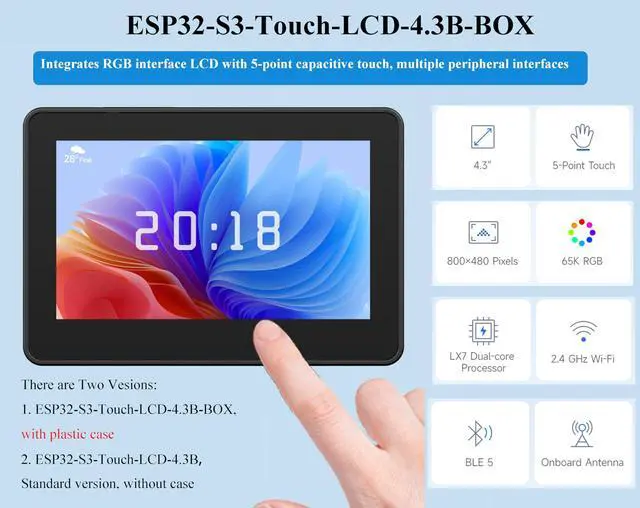

UeeKKoo ESP32-S3 Development Board with 4.3inch Touch Screen IPS Display 800x480 Resolution, 32-Bit LX7 Dual-Core Processor Support CAN RS485 I2C Interface, 2.4 G H z W-i-F-i/Blue-Too-th 5, with Case

Overview
ESP32-S3-Touch-LCD- 4.3B -BOX is a microcontroller development board with 2.4 G H z W-i--F--i and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 4.3 inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.
This is version 4.3 inch LCD and with Case.

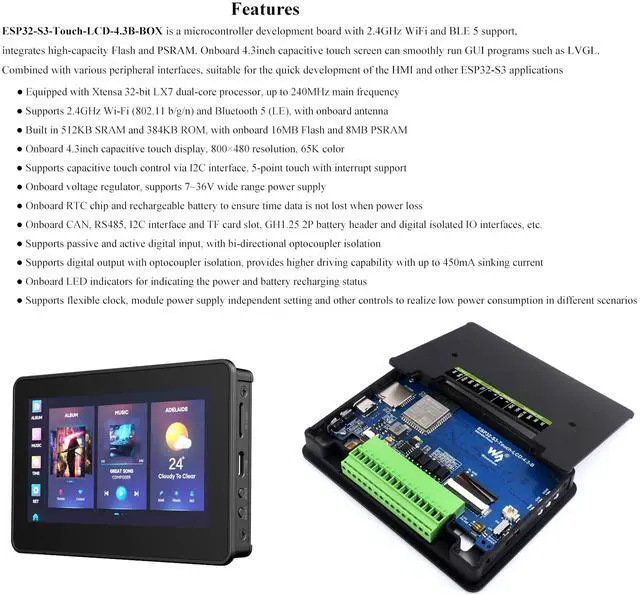

Features
Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4 G H z W-i--F--i ( 802.11 b/g/n) and Blue-too-th 5 (LE), with onboard antenna
Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

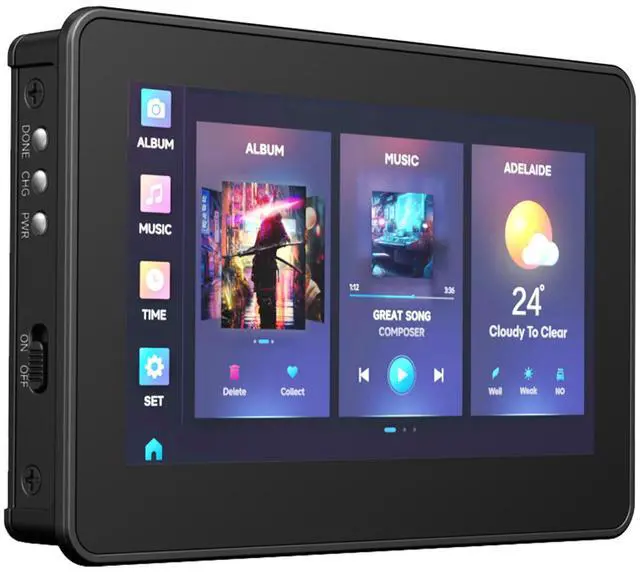

Onboard 4.3 inch capacitive touch display, 800x480 resolution, 65K color
IPS Display Panel, Excellent display performance, 160deg wide viewing angle
Capacitive 5-point touch, supports touch function with I2C interface, 5-point touch for flexible operation and smooth multi-point UI interaction
Onboard voltage regulator, supports 7~36V wide range power supply
Onboard R TC chip and rechargeable batte-ry to ensure time data is not lost when power loss

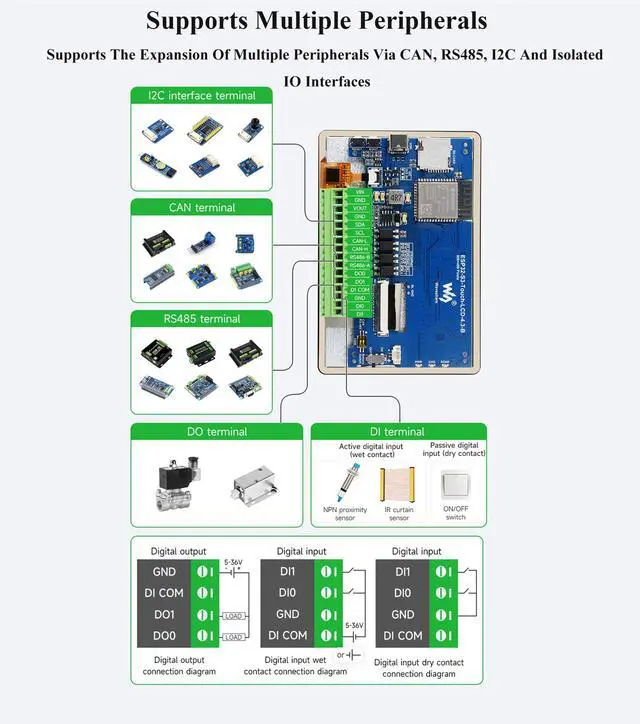

Onboard CAN, RS485, I2C interface and TF card slot, GH 1.25 2P battery header and digital isolated IO interfaces, etc.
Supports passive and active digital input, with bi-directional optocoupler isolation
Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current
Onboard LED indicators for indicating the power and battery recharging status
Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios

Provide Online Development Resources /User Manual: bit. ly/3LgYUNh

Package Content
ESP32-S3-Touch-LCD- 4.3B -BOX x1
