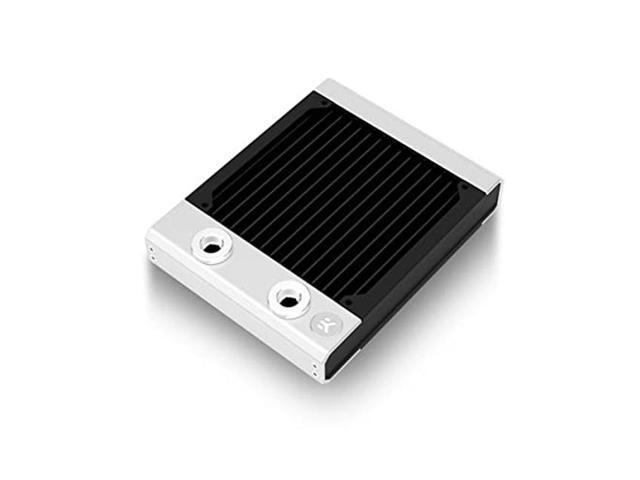

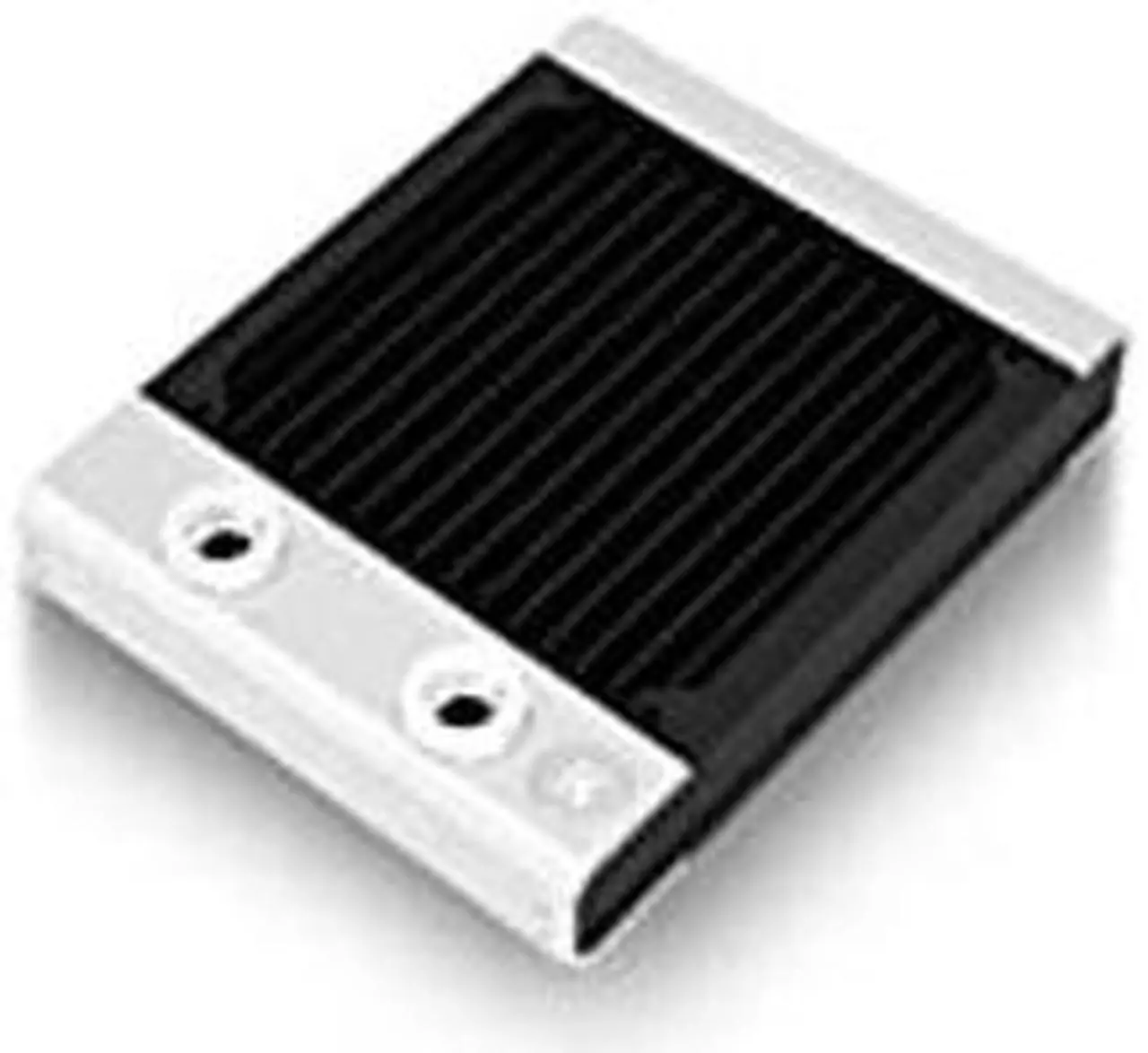

EKWB EK-Quantum Surface S120 Radiator, Single, Black

With a thickness of only 30mm, the EK-Quantum S Series Surface radiators are ideal for space-constrained cases. Despite the reduced thickness, they deliver exceptional performance at very low and medium fan speeds. A total of 16 copper 2mm wide tubes across the entire length of the radiator assure optimal coolant flow putting no stress on your cooling loop. High-grade non-louvered copper fins with 20 FPI density provide the best balance between thermal transfer and air resistance for optimal performance even at low-speed fan operation. A Push/Pull setup on an S Series EK-Quantum Surface radiator is not something EK would recommend since it will not bring a proportional performance increase.

If more cooling power is needed, adding additional radiators is the way to go.
Technical and Material

Specifications

: - High-grade 99.9 % copper fins - Copper H90 tubing - Brass H62 end tank chambers - Stainless Steel side plates - Extruded Aluminum Silver anodized end piece covers - Brass nickel-plated extenders and plugs
Dimensions: 165 x 130 x 30mm (L x W x
H) Weight: 0.50 kg
FPI: 20
Port threads: 2x G1/4"
Fan compatibility: 120x120x25mm fan
Pressure tested: 1bar
Enclosed: - EK-Quantum Surface S series radiator - 4x Phillips Slotted M4x30mm for 25mm thick fans - 4x Phillips Slotted M4x5mm for mounting the radiator directly to the case - 6mm steel Allen (Hex) key - 9mm steel Allen (Hex) key
Model: 3831109839751
