Adeept Robot HAT for Raspberry Pi, Expansion Board for Raspberry Pi 5/4B/3B/3B+, Smart Robot Car Driver with PDF Tutorial
- 1. Adeept Robot HAT V3.1 is a robot / smart car expansion board designed for Raspberry Pi, it is compatible with Raspberry Pi 5/4B/3B/3B+/2B/B+. It supports peripherals such as active cooler / heat sinks.

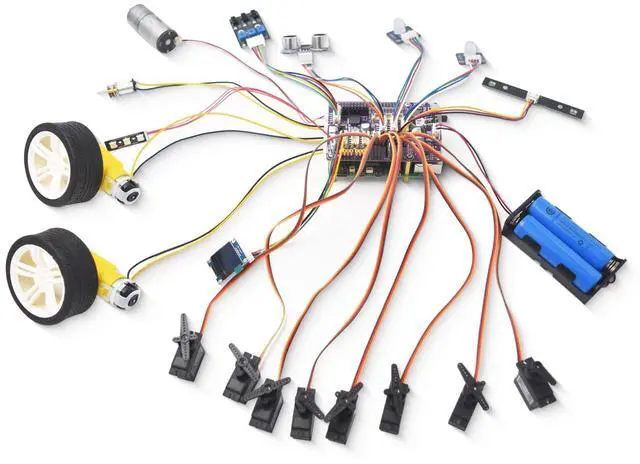

- 2. The Robot HAT can drive servos, motors, sensors and other executable components. With support for secondary development and expansion, it emerges as the optimal choice for developing robotic arms, articulated humanoid robots, and robot cars.
- 3. Uninterruptible Power Supply: Power your Raspberry Pi using with many kinds of batteries or power banks, ensuring continuous operation even when unplugged. The board features an integrated 8.4V battery charger with a USB-C port for charging.
- 4. Versatile Motor Control: Integrated with 1x PCA9685 chip and 2x DRV8833 chips, it can simultaneously drive 16 servos and 4 DC motors. It also integrates an ADC chip - ADS7830, which can be used to detect battery voltage and convert external analog signals into digital signals.
- 5.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Adeept Robot HAT for Raspberry Pi is designed for DIY projects and educational needs.
The Adeept Robot HAT V 3.1 is a motor and sensor driver HAT that supports Raspberry Pi 5, Pi 4, and Pi 3 models. The board features a bunch of headers that give access to sensor and motor controllers including 16 servo motor ports, a 3-CH line tracking sensor, an ultrasonic sensor, IR receivers, WS2812 RGB LEDs, and more. Additionally, the board features an integrated 8.4V battery charger with a USB-C port for charging. All these features make it easy to build DIY robotics and smart car projects with this HAT.

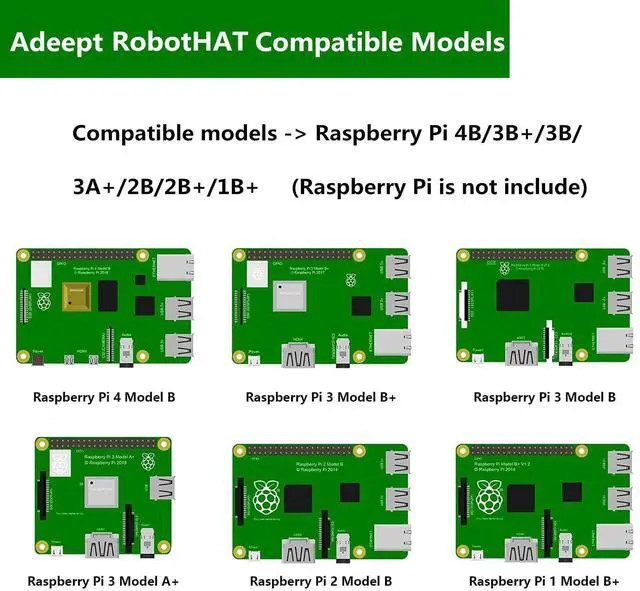

Adeept Robot HAT V 3.1 is a robot driver board and must be used in conjunction with a Raspberry Pi. Compatible with Raspberry Pi 5/4B/3B/3B+. With it, you can easily DIY your Raspberry Pi robot and smart car, etc.
Adeept Robot HAT V 3.1

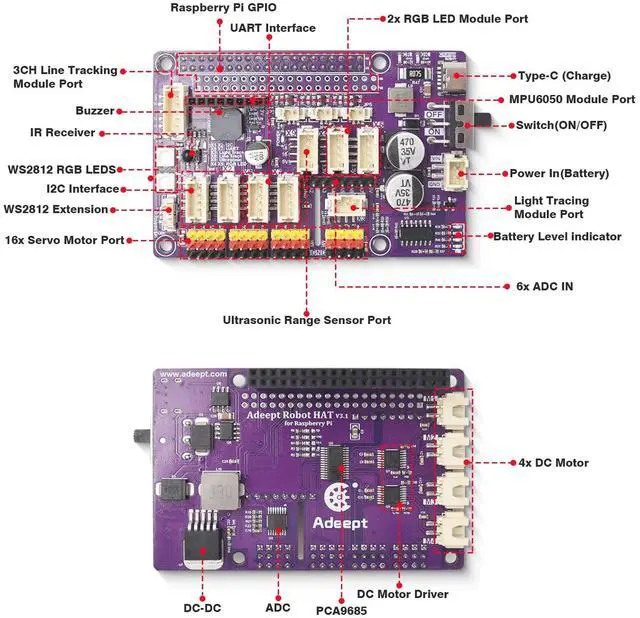

HAT Name Adeept Robot HAT V 3.1 Interfaces and Ports RGB LED 2x RGB LED ports 2x WS2812 RGB LEDs onboard 1x WS2812 extension header Sensor Interface 3-CH Line following sensor port Ultrasonic range sensor port MPU6050 6-axis (gyro + accelerometer) port Light tracing sensor port IR receiver Motor Drivers 4x High power DC motor driver 16x Servo motor driver with PCA9685 Communication 1x UART port for communication and debug 1x I2C interface port USB 1x USB-C port for charging only Misc 1x Onboard battery level indicator 1x Buzzer 6x ADC 1x Integrated DC-DC converter Power 1x 8.4V battery power input port with charger

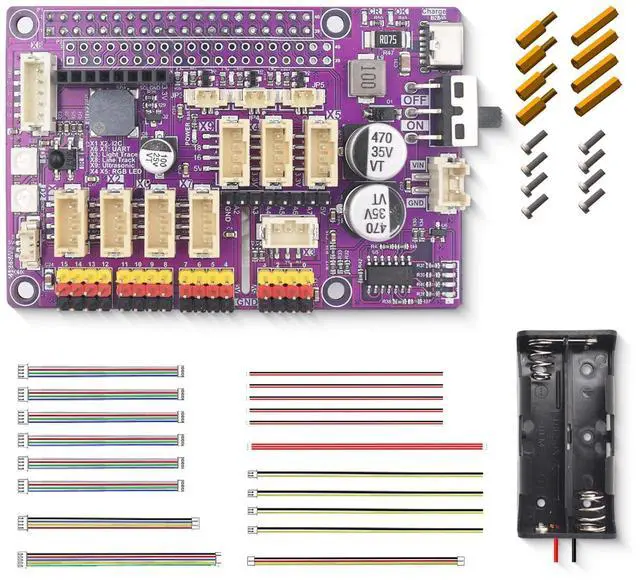

Package List:
1x Adeept Robot HAT V 3.1 (Purple)
1x Battery Holder
1x Screws, Nuts, Copper Standoff Set
1x Wires Set
The Adeept Robot HAT V 3.1 is a motor and sensor driver HAT that supports Raspberry Pi 5, Pi 4, and Pi 3 models. The board features a bunch of headers that give access to sensor and motor controllers including 16 servo motor ports, a 3-CH line tracking sensor, an ultrasonic sensor, IR receivers, WS2812 RGB LEDs, and more. Additionally, the board features an integrated 8.4V battery charger with a USB-C port for charging. All these features make it easy to build DIY robotics and smart car projects with this HAT.
Adeept Robot HAT V 3.1 is a robot driver board and must be used in conjunction with a Raspberry Pi. Compatible with Raspberry Pi 5/4B/3B/3B+. With it, you can easily DIY your Raspberry Pi robot and smart car, etc.
Adeept Robot HAT V 3.1
Specifications
:HAT Name Adeept Robot HAT V 3.1 Interfaces and Ports RGB LED 2x RGB LED ports 2x WS2812 RGB LEDs onboard 1x WS2812 extension header Sensor Interface 3-CH Line following sensor port Ultrasonic range sensor port MPU6050 6-axis (gyro + accelerometer) port Light tracing sensor port IR receiver Motor Drivers 4x High power DC motor driver 16x Servo motor driver with PCA9685 Communication 1x UART port for communication and debug 1x I2C interface port USB 1x USB-C port for charging only Misc 1x Onboard battery level indicator 1x Buzzer 6x ADC 1x Integrated DC-DC converter Power 1x 8.4V battery power input port with charger
Package List:
1x Adeept Robot HAT V 3.1 (Purple)
1x Battery Holder
1x Screws, Nuts, Copper Standoff Set
1x Wires Set
