OREI UltraHD HDMI Extender 18G HDBaseT Over Single CAT5e/CAT6 Cable 4K @ 60Hz Upto 230FT With Dual IR Remote 1080P Upto 330 Ft - Power Over Cable - RS-232 - Zero Latency
- Extend Full HD Up to 4K@60Hz / 2K@60Hz Transmit high-quality video signals up to 330 feet over Cat5e/Cat6/Cat7 cable with RS-232 and power-over-cable (PoC) support. The device comes with a dual-voltage power supply using a US plug, and an adapter/converter is provided for international use.
- RS-232 & IR Control Pass-Through Serial RS-232 signals and IR remote control commands (@39 kHz) pass through the HDMI transmitter, enabling remote control of devices such as scanners, touchscreen displays, and other RS-232-compatible equipment at baud rates up to 115 Kbps.
- Wide HDMI Compatibility Supports HDMI resolutions including 480i@60Hz, 480p@60Hz, 576i@50/60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz. Compatible with IR devices operating from 2050 kHz.
- Uncompressed High-Definition Transmission Supports full HD 1080p, 3D content, 4Kx2K video, HDMI 1.4, HDCP 2.0, CEC, and 24-bit deep color for vibrant, lossless visuals.
- Plug-and-Play Setup No software installation
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

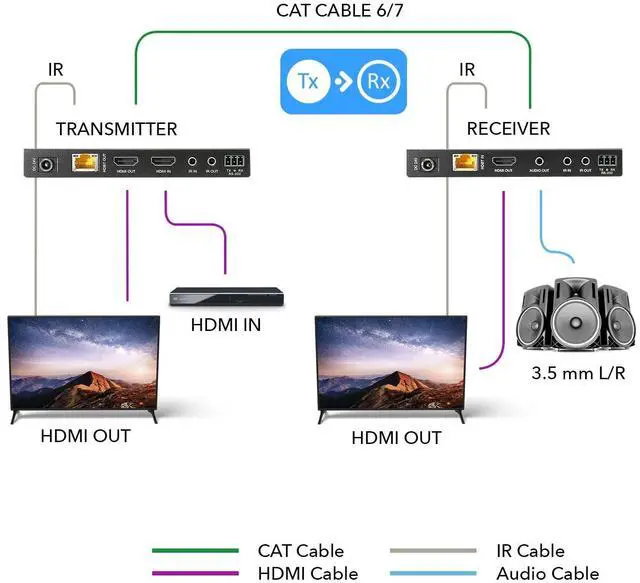

Product DescriptionThe OREI HDMI extender balun allows you to transmit HDMI audio/video signals over Cat5e/6/7 cable with zero latency along with maintaining original audio/video quality. It supports up to 4K@60Hz
YUV 4:4: 4 resolution and extends the transmission distance up to 400 feet using high quality cat cables. HDBaseT technology transmits uncompressed HDMI audio and video, RS-232 serial and Bi-directional IR control signals up to 400 feet and supports up to 18 gbps transmission. The HDBaseT installation can control RS-232 signal devices such as scanners and touchscreen display at baud rates up to 115 Kbps. Compact, durable and easy to setup and operate. Ideal for home, businesses, test bench facilities, data centers, and help desks. You can also operate a set-top box or a Blu-ray player using its remote when at the remote monitor and vice versa. Power Over Cable - only use one included power adapter at either transmitter side or the receiver side to power both unitsHDMI Loop-out - Connect HDMI display to the transmitter for an output to local display at the source. Bi-directional IR control - enables source device to recognize remote commands from remote display or control the remote display from the source deviceRS-232 Control - accepts control commands via PC interfaceAnalog Audo-out - 3.5 mm audio output on receiver for PCM output when the audio stream is along from the source.

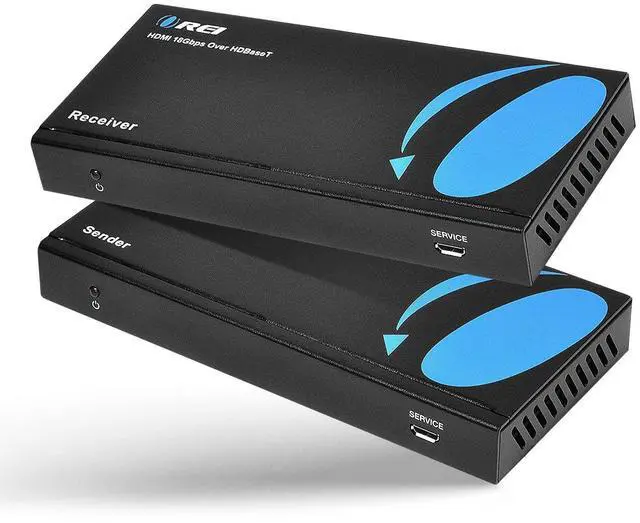

The package includes Orei UHD-EXB400R-K HDMI Extender (Sender & Receiver Units), 2x IR Tx Cables, 2x IR Rx Cables, 1x Power adapter, Mounting kit & user manual. Manufacturer Contact Informationinfo@orei. com
YUV 4:4: 4 resolution and extends the transmission distance up to 400 feet using high quality cat cables. HDBaseT technology transmits uncompressed HDMI audio and video, RS-232 serial and Bi-directional IR control signals up to 400 feet and supports up to 18 gbps transmission. The HDBaseT installation can control RS-232 signal devices such as scanners and touchscreen display at baud rates up to 115 Kbps. Compact, durable and easy to setup and operate. Ideal for home, businesses, test bench facilities, data centers, and help desks. You can also operate a set-top box or a Blu-ray player using its remote when at the remote monitor and vice versa. Power Over Cable - only use one included power adapter at either transmitter side or the receiver side to power both unitsHDMI Loop-out - Connect HDMI display to the transmitter for an output to local display at the source. Bi-directional IR control - enables source device to recognize remote commands from remote display or control the remote display from the source deviceRS-232 Control - accepts control commands via PC interfaceAnalog Audo-out - 3.5 mm audio output on receiver for PCM output when the audio stream is along from the source.
The package includes Orei UHD-EXB400R-K HDMI Extender (Sender & Receiver Units), 2x IR Tx Cables, 2x IR Rx Cables, 1x Power adapter, Mounting kit & user manual. Manufacturer Contact Informationinfo@orei. com
