Tycon Power Systems TPDIN-POE-Relay PoE Powered 10A Relay 802.3af/at/bt Class 0 or 24V Passive PoE N

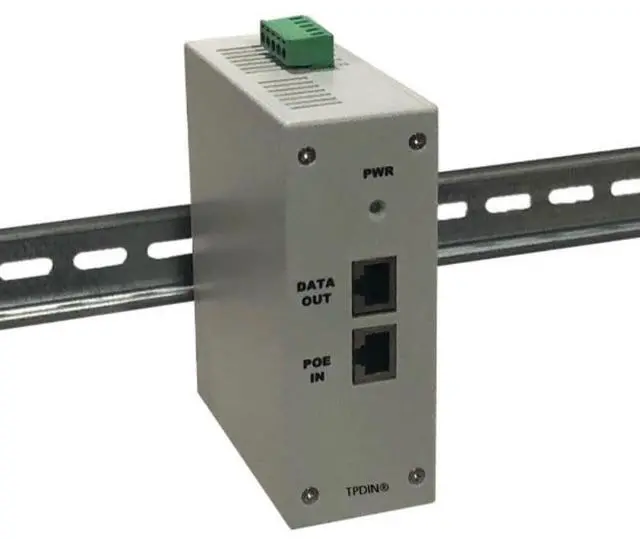

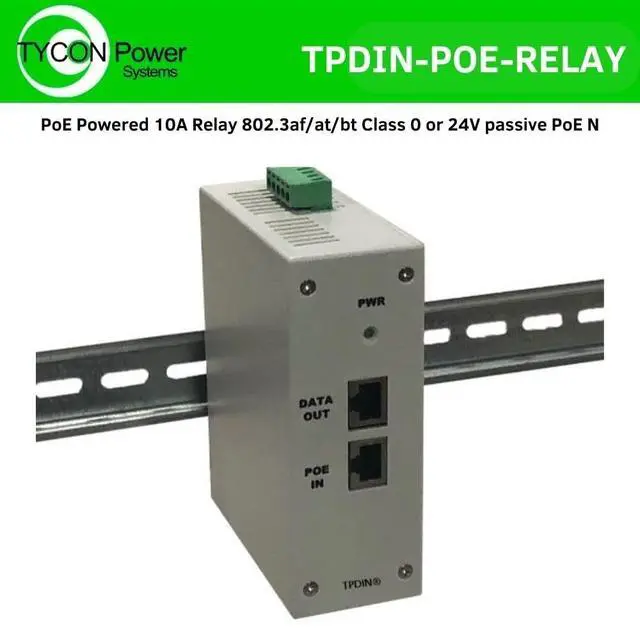

SKU: TPDIN-POE-RELAYThe TPDIN-POE-RELAY is a unique device that provides a way to control up to 10A of current from a managed PoE Switch or other PoE device. When PoE is applied to the TPDIN-POE-RELAY, the relay closes and the LED turns ON. When PoE power is removed, the relay turns off and the LED turns OFF. There are two connections, a normally closed and a normally open, so that both relay logic states can be utilized. Many modern PoE switches allow an operator to enable or disable the PoE on a particular port. This PoE switch function can be used to control the relay. The unit features a Gigabit Data Passthrough with surge protection to protect the data connection up to 30KV. It mounts to a standard DIN Rail commonly used in industrial installations. Features PoE Powered, No Other External Power Required Accepts 802.3 af/at/bt Class 0 PoE or 24V Passive PoE Normally Open and Normally Closed 10A Relay Connections Gigabit Data Passthru with Surge Protection Wide Operating
Voltage Range: -40C to +70C DIN Rail Mounting
