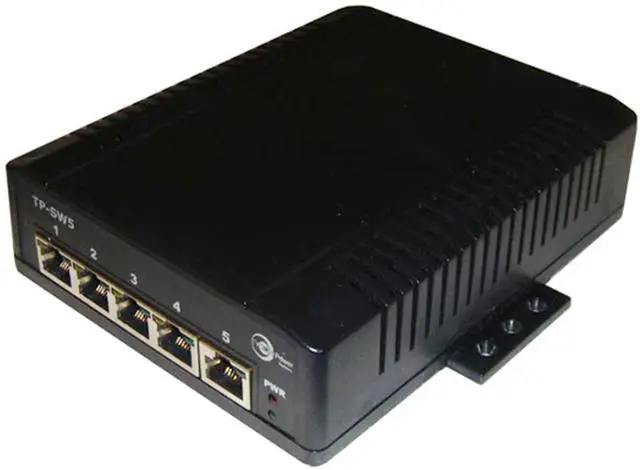

Tycon Systems TP-SW5G-24 5 Port High Power POE Switch - 10-36V DC Input
- 5 Port Unmanaged Gigabit 802.3at Mode B PoE Layer 2 Network Switch, 12-24VDC Wire Terminal Input, 70W
- 4x 802.3at PoE Ports + 1x Uplink Port
- 10V to 36VDC Wire Terminal Input, 12AWG
- 5W per port, 70W Total Max out
- Applications: Wireless Access Points and Client Devices; IP Phone and Security Camera Systems
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The TP-SW5G-24 Power Over Ethernet (POE) 10/100/1000Mb switch offered by Tycon Power Systems is a fully automatic high speed 5 port Ethernet switch with up to 35 Watts of POE power per port. It complies with the IEEE 802.3 af/at specifications for valid POE device detection. The unit supplies power to the remote device on the unused Ethernet pins 4, 5(V+) and 7, 8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the POE switch and the remote device. The switch accepts DC power from 10-36VDC which makes it an excellent choice for those systems powered by battery power.
There are 2 power inputs for attachment of primary and backup power sources. It also accepts 802.3 af or 802.3 at power thru port 5.
There are 2 power inputs for attachment of primary and backup power sources. It also accepts 802.3 af or 802.3 at power thru port 5.
