E-link Industrial Hardened Gigabit PoE+ Splitter PoE IEEE802.3 at 30W Input 20W/12VDC Output DIN- Rail Wall Mount -40degC to 80degC IP40

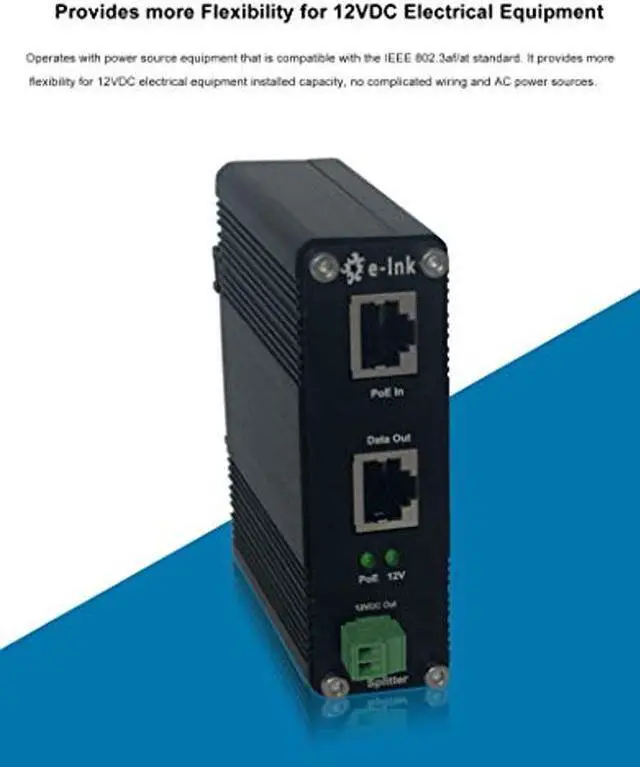

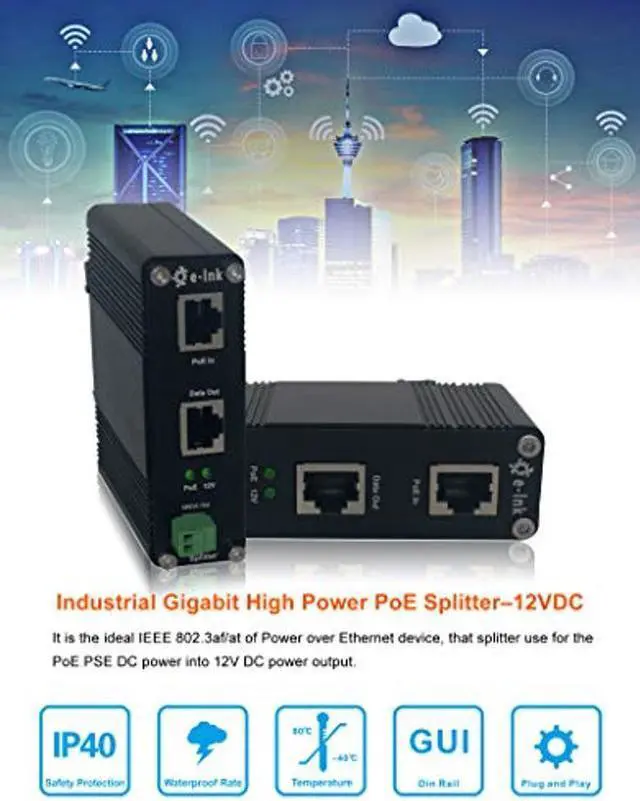

LNK-SPT12V is the ideal IEEE 802.3 af/at of Power over Ethernet device, that splitter use for the PoE PSE DC power into 12V DC power output. LNK-SPT12V operates with power source equipment that is compatible with the IEEE 802.3 af/at standard. It provides more flexibility for 12VDC electrical equipment installed capacity, no complicated wiring and AC power sources

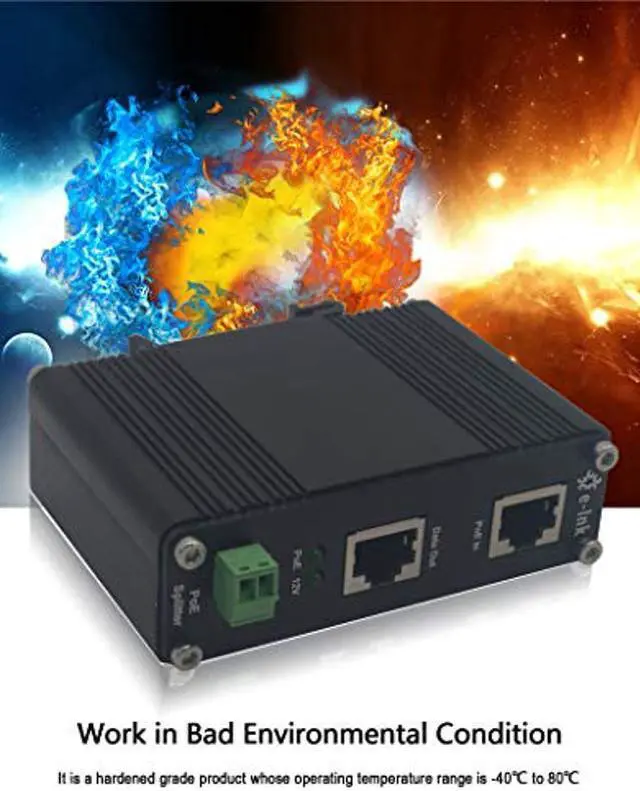

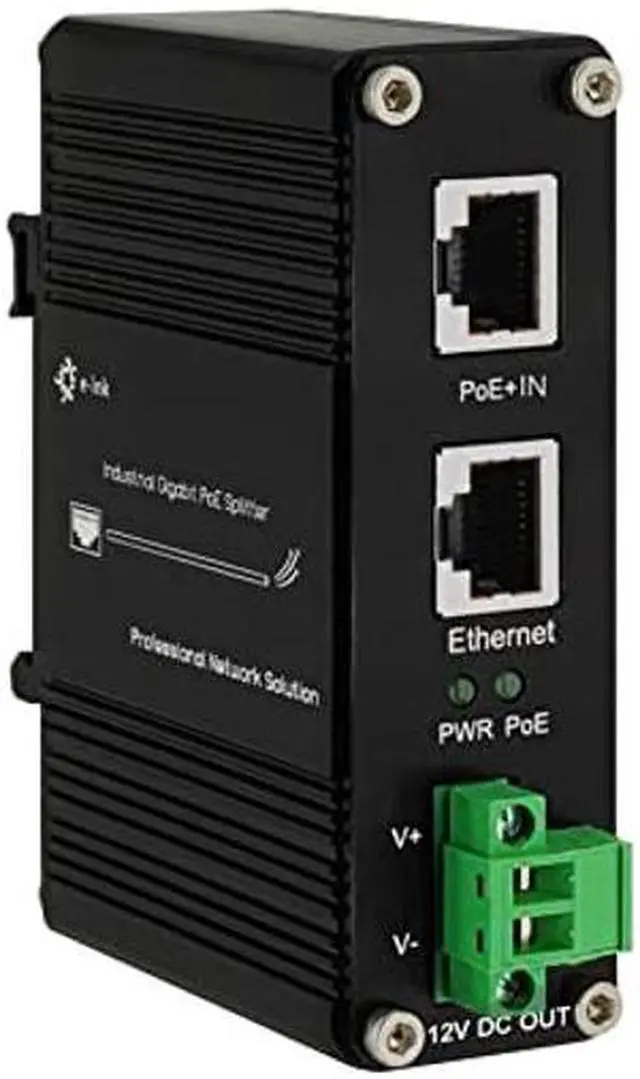

Features: 1 RJ45 PoE PSE Input Port(Data + Power) + 1 RJ45 Ethernet Data Output Port (Data only). Support IEEE 802.3 af/at Power over Ethernet(PoE+) Power Sourcing Equipment Support 10/100/1000Base-TX Extensive LED indicators for PoE diagnostics Environmentally Hardened -40degC to 75degC Plug and Play. Max Output Power 20W@12VDC ET Mini Case DIN-Rail/Wall Mount installation Complies with EN55022 class A standard

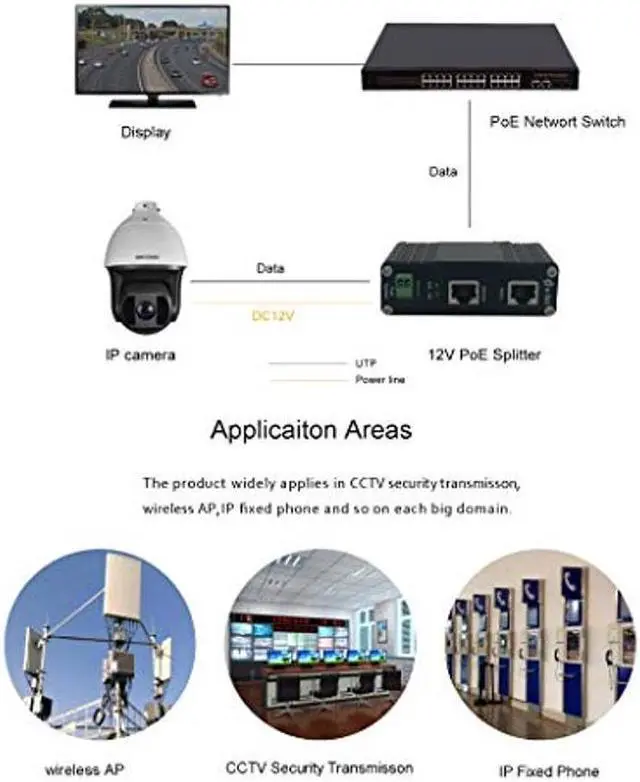

How To Set Up: a)Connect the Ethernet equipment or IP Camera to Data out port of the splitter use the UTP cable. b)Connect the PoE PSE to the Splitter PoE In port. c)When the Splitter get the power by POE PSE, the PoE In LED lights illuminate. If the indicators are not on, check the PoE PSE equipment connection. d)When 12VDC output, 12V LED lights illuminate.
General Tips: To ensure trouble free transportation and storage, all products must be thoroughly inspected, tested and well packed before delivery. Check the product upon receipt for any visible damage which may have been caused during shipping.
Package Content: 1 * LNK-SPT12V 20W PoE Splitter 1 * Quick Start Guide 1 * L-Shaped Wall Mount Bracket
