40G QSFP+ SR for Brocade 40G-QSFP-SR4-INT,40GBASE-SR4 QSFP+ 850nm 150m MTP/MPO DOM Optical Transceiver Module...
- [(QSFP+ 40G)] compliant with for Brocade the QSFP+ MSA IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. Digital diagnostics functions are also available via the I2C interface, compatible for Brocade 40G-QSFP-SR4-INT
- [(40GBASE-SR4)] 40G SR4 850nm QSFP+ transceiver module, connecting with 12-fiber parallel fiber terminated with MPO/MTP multi-fiber female connectors. It can also be used in a 4x10G breakout mode interfaces up to 100 and 150 meters on OM3, and OM4/OM5 fibers, respectively.
- [(Connection)] The 40G SR4 module uses MTP/MPO-12 male connectors, but only requires 8 fibers, of which 4 are unused, so both 8 and 12 MTP fibers can be used. Using OM3 fiber, the transmission distance is 100m; using OM4/OM5 fiber, the transmission distance is 150m,Pluggable, support DOM ,0degC to 70degC(32 to 158degF)
- [(3 Warranty)] 30-Days Free-returned, 65-Days Free-replacement 5-Years Free-maintenance
- [(Customization)] Fibermall supports regular custom service for your options.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

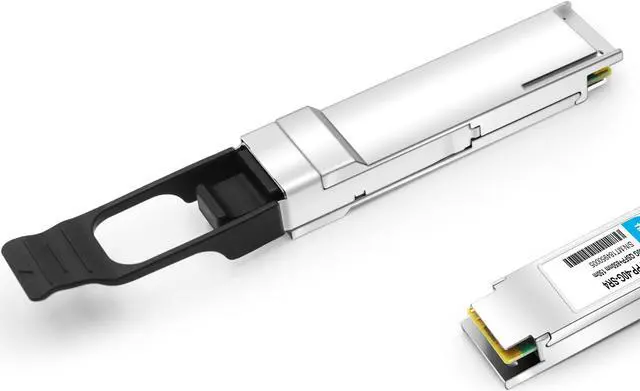

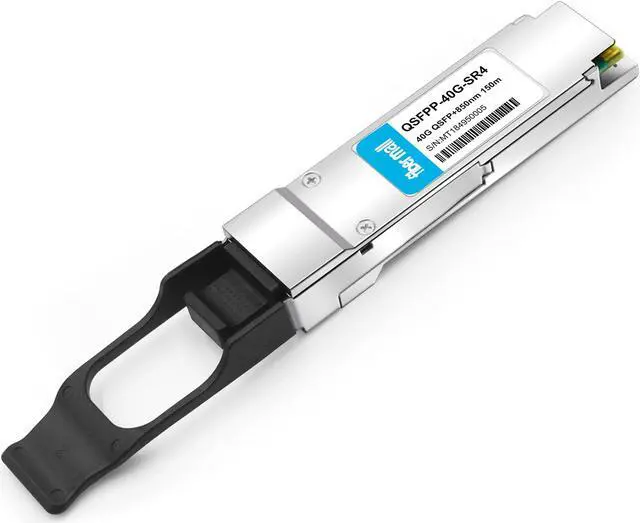

Fiber Mall QSFP-40G-SR4-Br is a 40Gb/s QSFP+ Optical transceiver module. It is used in 40gb Ethernet with links up to 150m over OM4 multimode fiber (MMF) at 850nm wavelength via a MTP/MPO connector. Besides, it is compliant with the QSFP+ MSA and IEEE 802.3 ba 40GBASE-SR4 and breakout to 4x10GBASE-S

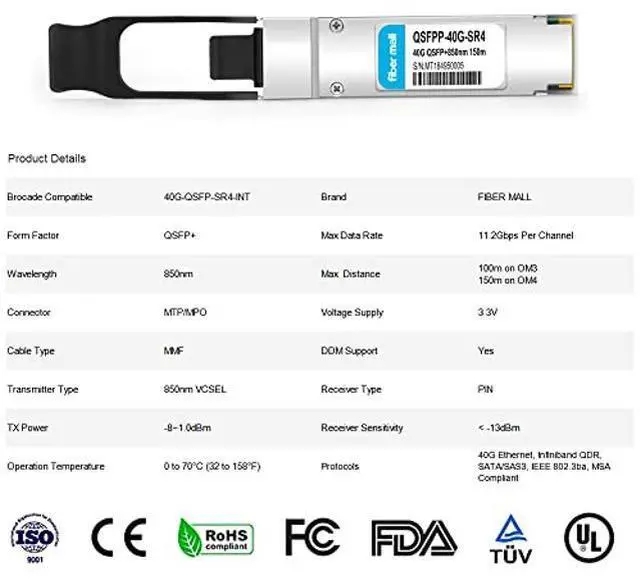

Product Features Brocade Compatible: 40G-QSFP-SR4-INT
Form Type: 40G
QSFP+ Max Data Rate: 40Gbps 4 independent full-duplex channels Up to 11.2G bps per channel bandwidth Aggregate bandwidth of > 40Gbps MTP/MPO optical connector Digital diagnostic capabilities Capable of over 100m transmission on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF CML compatible electrical I/O Single + 3.3V power supply operating TX input and RX output CDR retiming Built-in digital diagnostic functions
Temperature range: 0degC to 70degC
Applications
Brocade 40G-QSFP-SR4-INT 40G QSFP+ SR Transceiver Module (850nm MMF 150m MTP/MPO DDM) Rack to rack Data centers Metro networks Switches and Routers Infiniband 4x SDR, DDR, QDR 40GBASE-SR4 40G Ethernet Breakout to 4 x 10GBASE-SR Ethernet Proprietary interconnections
Package 1*sfp dust cover 1 *pair 40Gbps SR4 fiber transceiver module 1* package box
Product Features Brocade Compatible: 40G-QSFP-SR4-INT
Form Type: 40G
QSFP+ Max Data Rate: 40Gbps 4 independent full-duplex channels Up to 11.2G bps per channel bandwidth Aggregate bandwidth of > 40Gbps MTP/MPO optical connector Digital diagnostic capabilities Capable of over 100m transmission on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF CML compatible electrical I/O Single + 3.3V power supply operating TX input and RX output CDR retiming Built-in digital diagnostic functions
Temperature range: 0degC to 70degC
Applications
Brocade 40G-QSFP-SR4-INT 40G QSFP+ SR Transceiver Module (850nm MMF 150m MTP/MPO DDM) Rack to rack Data centers Metro networks Switches and Routers Infiniband 4x SDR, DDR, QDR 40GBASE-SR4 40G Ethernet Breakout to 4 x 10GBASE-SR Ethernet Proprietary interconnections
Package 1*sfp dust cover 1 *pair 40Gbps SR4 fiber transceiver module 1* package box
