$190.99
Meet Your Seller

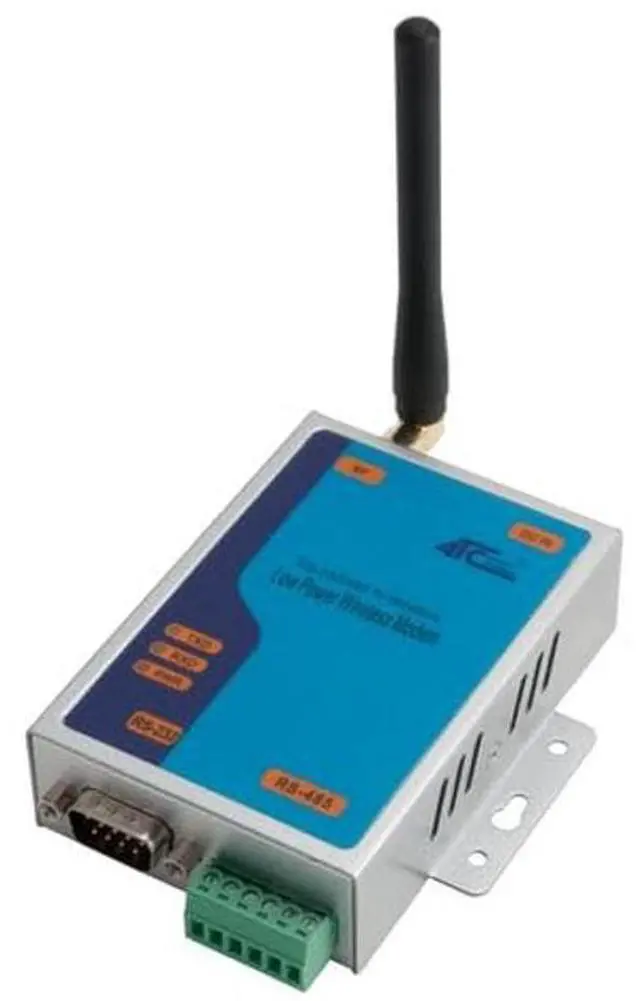

ATC-871 - Wireless RS485, RS232, TTL Adapter - Short Distance Radio (500m/1640ft): RS232
- Antennas: 50 ohm (SMA) antenna included Baud Rate up to 38.4 K Channels 8
- Current Transmitting: <100mA; Receiving: <20mA Dimensions 44 x 27 x 8 mm
- Enclosure: Industrial Metal Enclosure Frequency Band: ISM FSK/GFSK freq band, 433MHz
- Interface (s) RS232/RS485/TTL: -S1, -S2, -S0 RS422/485 side is 4 position terminal block
- MPN: ATC-871 Power Supply: 9VDC 200 mA External power supply included Range: up to 500 m
- Receiver Sensitivity -121 dbm Serial Types: RS232, RS485, or TTL Temperature Range: -20C to +65C (-4F to +149F) Humidity: 10% to 90%
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The ATC-871 is a short distance (500m/1640ft) wireless adapter for RS232, RS485, or TTL level signals. It has 8 channels and baud rates up to 38.4K. The frequency range is 429- 433.30MH z and the device uses low power (max. 100mW). Two ATC-871s are required for a communication connection. Select the connection, RS232, RS485, or TTL, as units only allow for one type of serial connection. The RS485 version requires a RS485 configuration cable to send the the appropriate type of message (RS232, RS485) to set up the unit.
The configuration cable is not included. Our ATC-820 converter can be used as the RS485 configuration cable.
The configuration cable is not included. Our ATC-820 converter can be used as the RS485 configuration cable.
