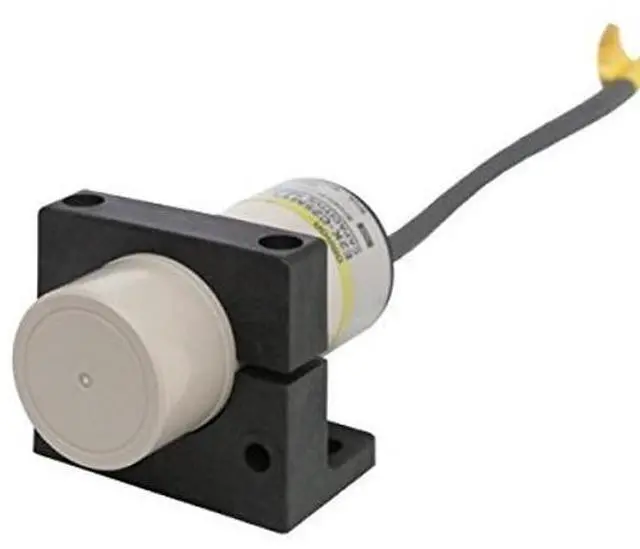

OMRON E2K-C25MY1 2M Long Distance Type Proximity Sensor (AC 2 Wire Model)(Operation Mode NO) NN

[Cylinder type sensing head size] dia. 34[Type] Unshielded[Sensing method] Capacitive type[Sensing distance] 25mm[Setting distance] 3 to 25 mm[Differential distance] 15% Max. of sensing distance(when adjusted to 25 mm +10% to -10% with standard object)[Sensing object] Conductor and dielectrics[Standard sensing object] With grounded metal 50*50*1mm[Response frequency]
AC: 10 Hz (average) [Power supply voltage] 100 to 220 VAC[Operating voltage range] 90 to 250 VAC[Leakage current] 1 mA Max. (at 100VAC 50/60Hz)2 mA Max. (at 200VAC 50/60Hz)[Control output (Output type) ] AC 2-wire models[Control output (Switching capacity) ] 5 to 200mA (resistive load) [Indicator] Operation indicator (red) [Operation mode] NO[Sensitivity setting] 15-turn adjustment(-3 to +3 turn)[Protective circuit] Surge suppressor[Ambient temperature] -25 to 70 CEL (with no icing or condensation) [Ambient humidity] 35 to 95 %RH (with no condensation) [Dielectric strength] 1500 VAC 50/60 Hz for 1 minute between charged parts and the case[Degree of protection]
IEC60529: IP66[Applicable standard (CCC mark) ] Equipped[Connection method]
Pre-wired models (Cable length: 2 m)[Weight (Packed state) ] approx. 200 g (1)
